Toyota MARK 2/MARK 2 BLIT — PARTIAL ENGINE ASSEMBLY

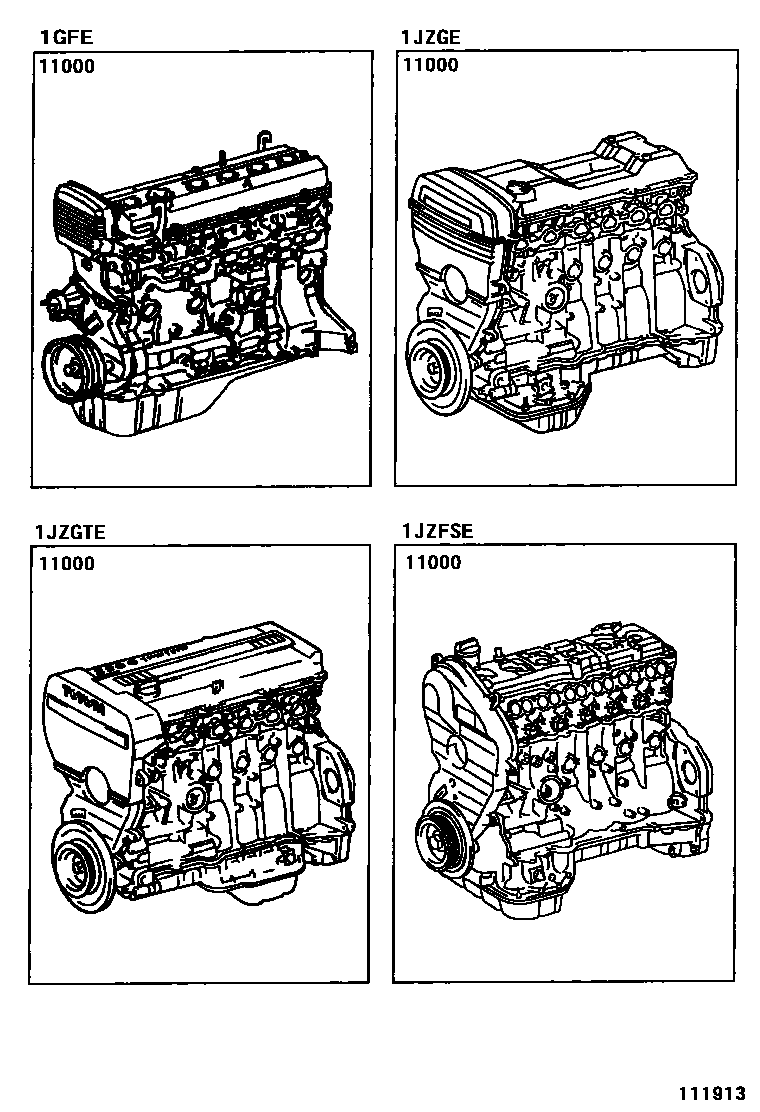

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-46520i200010-200706

main19000-46540i200010-200108

main19000-46670i200108-200706

main19000-70320i200010-200706

main19000-70330i200210-200411

main19000-88408i200010-200210

main19000-88409i200210-200411

1 parts on this diagram · 1 diagram in section
