Toyota MARK 2/MARK 2 BLIT — MIRROR

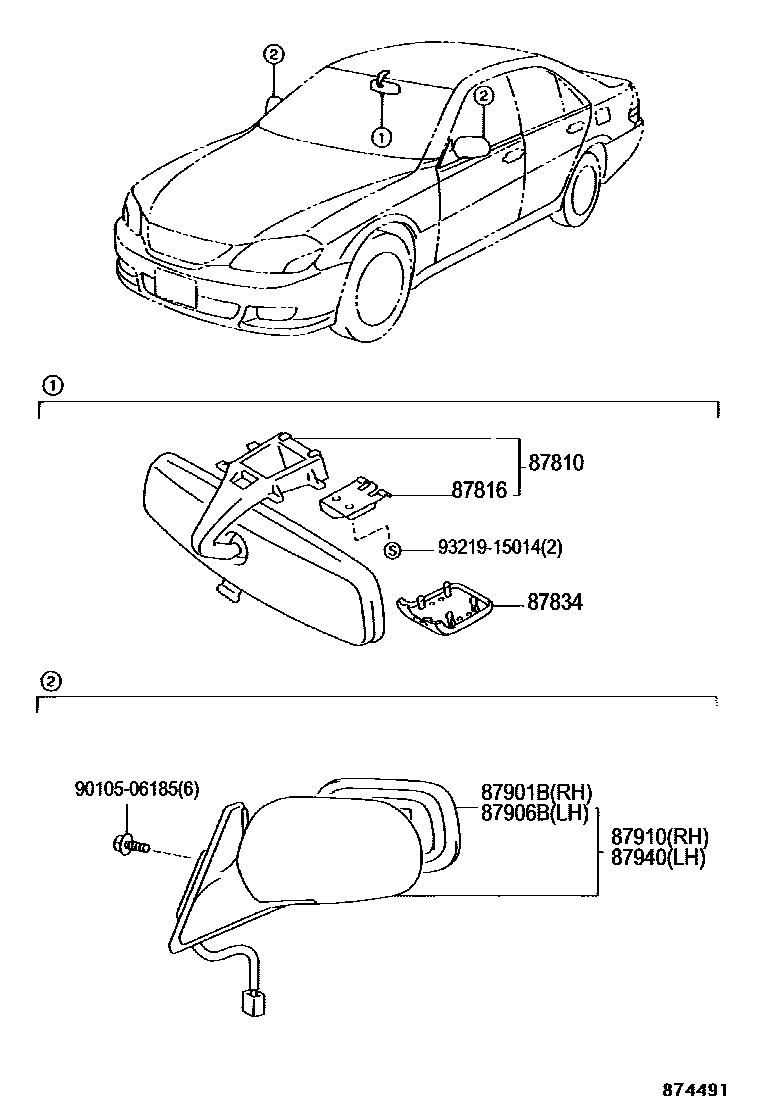

Parts diagram

87810MIRROR ASSY, INNER REAR VIEW

main87810-22230-A0i200010-200210

IVORY,TRIM0#

main87810-22230-B3i200010-200210

MD.CHARCOAL,TRIM1#; MD.CHARCOAL,TRIM2#

87816SPRING, INNER REAR VIEW MIRROR

main74372-50010i200010-200604

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-22070-A0i200210-200411

IVORY,TRIM0#

main87834-22070-B3i200210-200411

MD.CHARCOAL,TRIM1#; MD.CHARCOAL,TRIM2#

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-2A310i200210

main87931-2A320i200210-200309

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-2A450i200010-200410

main87961-2A460i200010-200706

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-2A310-A0i200210-200411

SUPER WHITE 2,040

main87910-2A310-A1i200201-200410

WHITE PEARL CS.,065

main87910-2A310-B0i200010-200410

SILVER ME.,1C0

main87910-2A310-B1i200010-200210

DK.GRAY M.M.,1C6

main87910-2A310-B2i200201-200410

GRAY ME.,1D2

main87910-2A310-C0i200201-200410

BLACK,202

main87910-2A310-C1i200210-200411

BLACK MC.,211

main87910-2A310-D0i200010-200410

BORDEAUX MC.,3P2

main87910-2A310-D1i200210-200411

BLACKISH RED MC.,3P6

main87910-2A310-F0i200201-200210

GOLD ME.,585

main87910-2A310-H0i200201-200410

LT. AQUA M.M.,772

main87910-2A310-J0i200210-200411

DARK BLUE MC.,8P8

main87910-2A320-A0i200210-200411

main87910-2A320-A1i200010-200210

main87910-2A320-B0i200210-200411

main87910-2A320-B1i200010-200210

main87910-2A320-B2i200210-200403

main87910-2A320-B3i200604-200706

main87910-2A320-C0i200201-200706

main87910-2A320-C1i200210-200411

main87910-2A320-D0i200010-200706

main87910-2A320-D1i200305-200404

main87910-2A320-F0i200201-200210

main87910-2A320-H0i200201-200706

main87910-2A320-J0i200010-200706

main87910-2A320-J1i200604-200706

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-2A450-A0i200210-200411

SUPER WHITE 2,040

main87940-2A450-A1i200201-200410

WHITE PEARL CS.,065

main87940-2A450-B0i200210-200411

SILVER ME.,1C0

main87940-2A450-B1i200010-200210

DK.GRAY M.M.,1C6

main87940-2A450-B2i200201-200410

GRAY ME.,1D2

main87940-2A450-C0i200201-200410

BLACK,202

main87940-2A450-C1i200210-200411

BLACK MC.,211

main87940-2A450-D0i200010-200410

BORDEAUX MC.,3P2

main87940-2A450-D1i200210-200411

BLACKISH RED MC.,3P6

main87940-2A450-F0i200201-200210

GOLD ME.,585

main87940-2A450-H0i200201-200410

LT. AQUA M.M.,772

main87940-2A450-J0i200010-200410

DARK BLUE MC.,8P8

main87940-2A460-A0i200010-200210

main87940-2A460-A1i200210-200309

main87940-2A460-B0i200010-200706

main87940-2A460-B1i200010-200210

main87940-2A460-B2i200210-200403

main87940-2A460-B3i200604-200706

main87940-2A460-C0i200201-200706

main87940-2A460-C1i200210-200411

main87940-2A460-D0i200010-200706

main87940-2A460-D1i200305-200404

main87940-2A460-F0i200201-200210

main87940-2A460-H0i200201-200706

main87940-2A460-J0i200210-200411

main87940-2A460-J1i200604-200706

9010506185

main90105-06185

9321915014

main93219-15014

9 parts on this diagram · 2 diagrams in section

MIRROR for Toyota MARK 2/MARK 2 BLIT

This section contains 9 genuine Toyota parts for the MIRROR system of the Toyota MARK 2/MARK 2 BLIT. Key components include: MIRROR ASSY, INNER REAR VIEW, SPRING, INNER REAR VIEW MIRROR, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, OUTER REAR VIEW, RH, MIRROR SUB-ASSY, OUTER REAR VIEW, LH.
