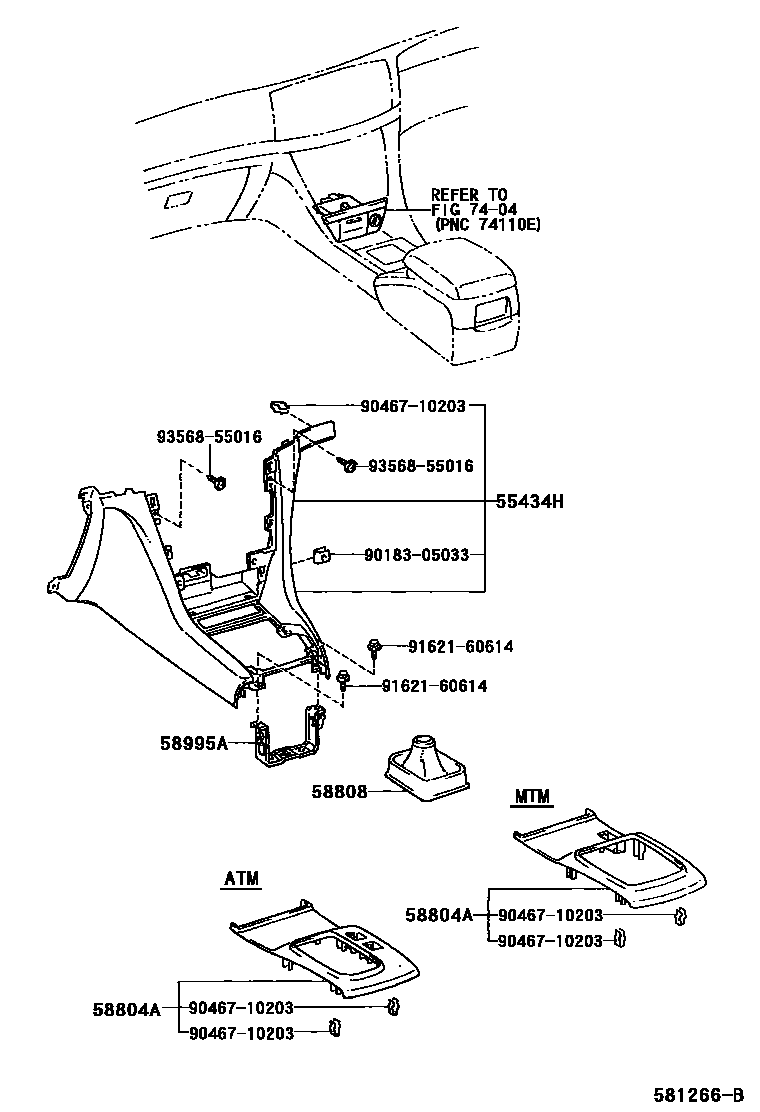

Toyota MARK 2/MARK 2 BLIT — CONSOLE BOX & BRACKET

0001 1 0002 1 0003 1

55434HPANEL, INSTRUMENT PANEL FINISH, LOWER CENTER

main55434-22140-A0iGX11#,JZX11#..GD,GDG,GDGT200010-200210

IVORY,TRIM0#

main55434-22140-B0iGX11#,JZX11#..GD,GDG,GDGT,IR,IRS,IRV200010-200706

MD.CHARCOAL,TRIM1#

main55434-22140-C0iGX11#,JZX115..WG;JZX110..GDS,GDV,IRS,IRV200010-200706

BLACK,TRIM2#

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-22310-D0iJZX110..5F200010-200210

REDDISH BROWN,TRIM2#

main58804-22320-D0iGX110,JZX110..ATM..(GDS,GDV)200210-200411

REDDISH BROWN,TRIM2#

main58804-22320-E0iGX11#,JZX11#..4FC..(GD,GDG)200210-200411

YELLOWISH BROWN,TRIM0#,1#

main58804-22330-E0iJZX110..GDG200010-200210

YELLOWISH BROWN,TRIM0#,1#

main58804-22340-B0iGX11#,JZX11#..WG200201-200706

GRAY,TRIM1#,2#

main58804-22360-E0iGX11#,JZX110..GD200305-200404

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-22130-C0iJZX110..5F200010-200210

BLACK,TRIM2#

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-22040iJZX110..5F200010-200210

main58995-22050iJZX110..5F200305

7404

9018305033

main90183-05033

9046710203

main90467-10203

9162160614

main91621-60614

9356855016

main93568-55016

9 parts on this diagram · 3 diagrams in section
