Toyota MAJESTA — WINDSHIELD WASHER

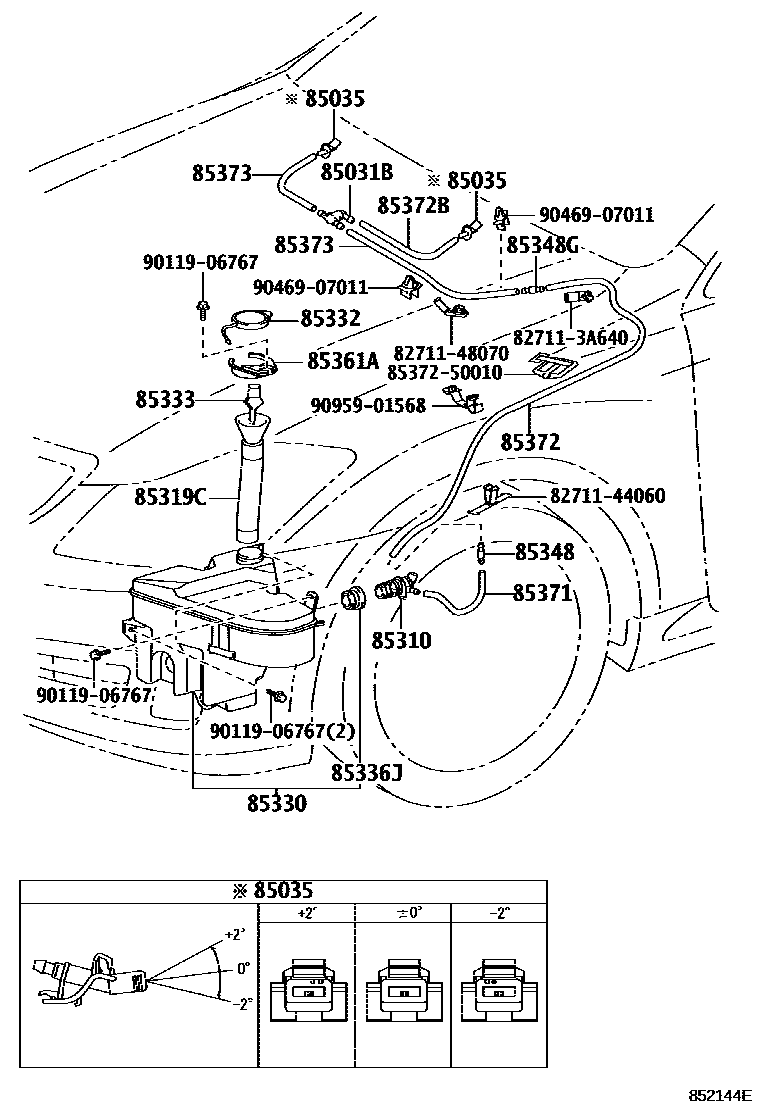

Parts diagram

85031BVALVE SUB-ASSY, WASHER

main85321-28020i200903

85035NOZZLE SUB-ASSY, WASHER

main85381-12300×2i200903

main85381-12310×2i200903

main85381-12320×2i200903

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-21010i200903

85319CHOSE, WASHER

main85319-30360i200903

85330JAR ASSY, WINDSHIELD WASHER

main85315-30360i200903

85332CAP, WINDSHIELD WASHER JAR

main85316-48060i200903

85333FILTER, WINDSHIELD WASHER JAR

main85312-30080i200903

85336JPROTECTOR, WASHER JAR

main85336-60300i200903

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122i200903

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85375-10260i200903

85361ABRACKET, WINDSHIELD WASHER, NO.1

main85337-30380i200903

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080i200903

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33803i200903

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-62063i200903

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-62065×2i200903

827113A640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3A640

8271144060WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-44060

8271148070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-48070

8537250010HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85372-50010

9011906767

main90119-06767

9046907011

main90469-07011

9095901568

main90959-01568

22 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota MAJESTA

This section contains 22 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota MAJESTA. Key components include: VALVE SUB-ASSY, WASHER, NOZZLE SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, HOSE, WASHER, JAR ASSY, WINDSHIELD WASHER.
