Toyota MAJESTA — SWITCH & RELAY & COMPUTER

0001 1����� & ��������� 0002 1����� & ��������� 0003 1�������� 0004 1�������� 0005 1�������� �������� 0006 1�������� �������� 0007 1��� 0008 1������������ 0009 1������� 0010 1������� 0011 1����� 0012 1���,���,��� & �������

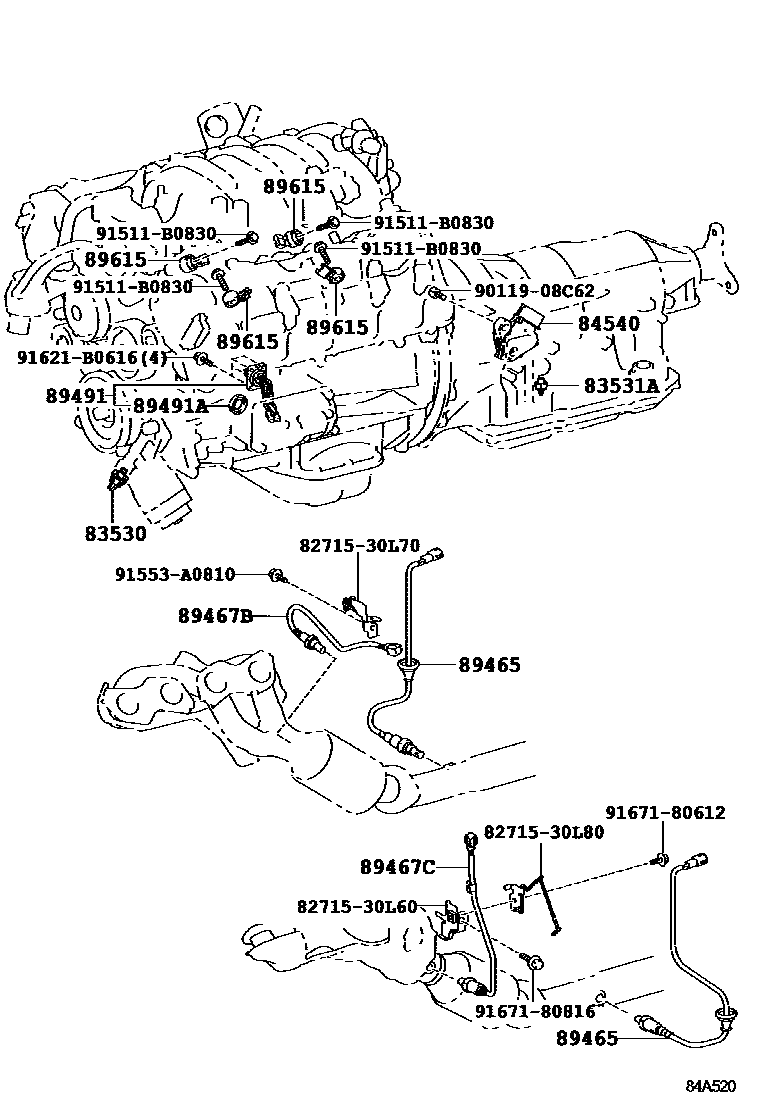

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iURS206,UZS207200903-201104

main83530-60020iURS206,UZS207201104-201307

83531ASWITCH, OIL PRESSURE

main83531-50010iURS206200903

84540SWITCH ASSY, NEUTRAL START

main84540-71010iURS206,UZS207200903-201307

89465SENSOR, OXYGEN

main89465-30A00iUZS207200903

main89465-30A10iUZS207200903

main89465-30A20×2iURS206200903

89467BSENSOR, AIR FUEL RATIO

main89467-30030iURS206200903

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-30040iURS206200903

89491SENSOR, ENGINE OIL LEVEL

main89491-50041iURS206200903

89491AGASKET, ENGINE OIL LEVEL SENSOR

main89493-60010iURS206200903

89615SENSOR, KNOCK CONTROL

main89615-20090×4iUZS207200903

8271530L60BRACKET,WIRING HARNESS CLAMP

main82715-30L60

8271530L70BRACKET,WIRING HARNESS CLAMP

main82715-30L70

8271530L80BRACKET,WIRING HARNESS CLAMP

main82715-30L80

9011908C62

main90119-08C62

91511B0830

main91511-B0830

91553A0810

main91553-A0810

91621B0616

main91621-B0616

9167180612

main91671-80612

9167180816

main91671-80816

18 parts on this diagram · 12 diagrams in section
