Toyota MAJESTA — REAR COMBINATION LAMP

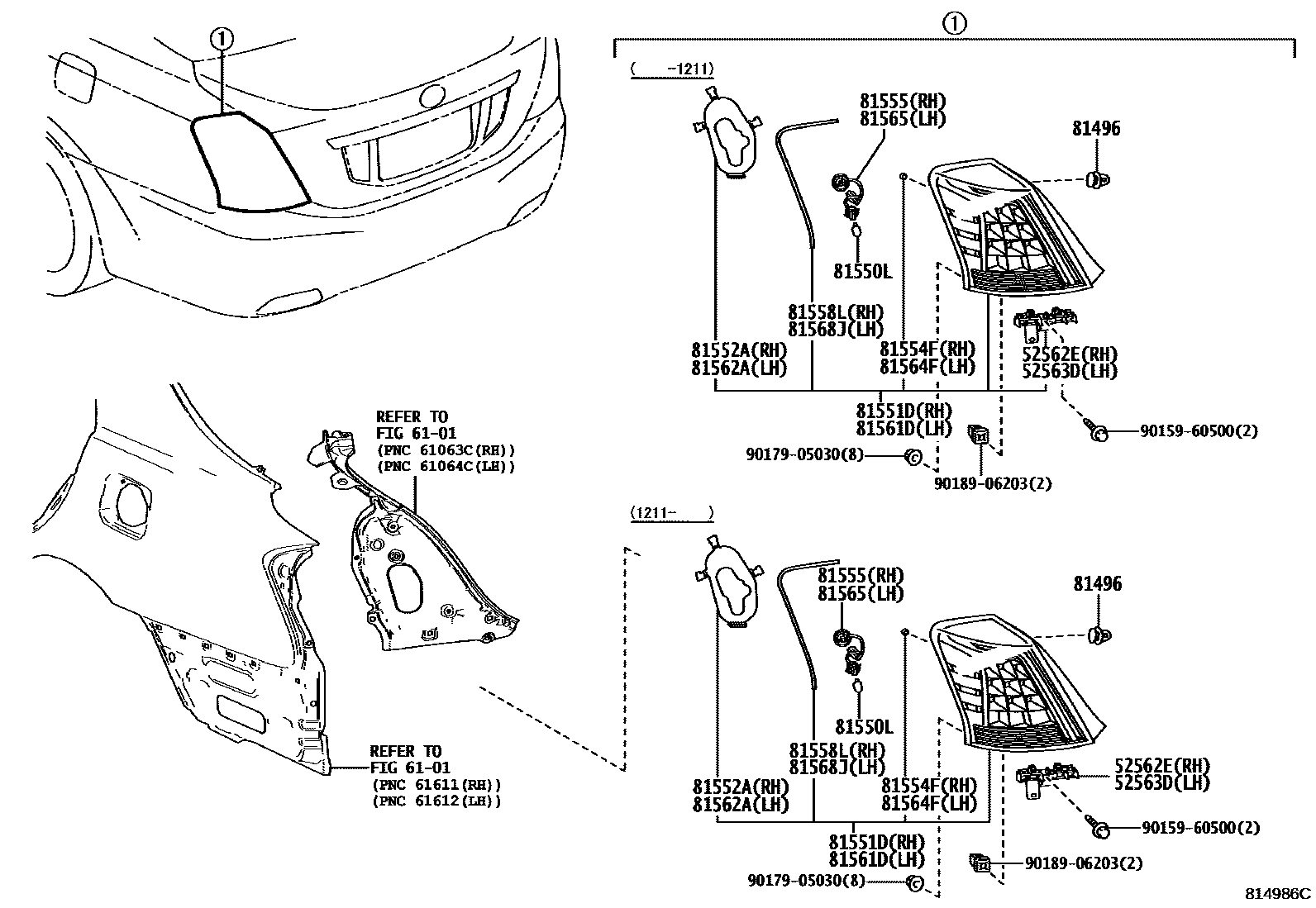

Parts diagram

52562ERETAINER, REAR BUMPER, UPPER RH

main52562-30130i200903

52563DRETAINER, REAR BUMPER, UPPER LH

main52563-30100i200903

6101SIDE MEMBER

→ Go to FIG 61-01

81496GUIDE, REAR COMBINATION LAMP

main81496-60010×2i200903

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15011×2i200903

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-30A20i200903-201211

main81551-30A21i201211

81552AGASKET, REAR COMBINATION LAMP, RH

main81552-30A20i200903

81554FGASKET, REAR COMBINATION LAMP, NO.2 RH

main81554-30A20×4i200903

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-30A20i200903

81558LPROTECTOR, REAR COMBINATION LAMP, RH

main81558-30A20i200903

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-30A10i200903-201211

main81561-30A11i201211

81562AGASKET, REAR COMBINATION LAMP, LH

main81552-30A20i200903

81564FGASKET, REAR COMBINATION LAMP, NO.2 LH

main81554-30A20×4i200903

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81565-30A10i200903

81568JPROTECTOR, REAR COMBINATION LAMP, LH

main81558-30A20i200903

9015960500

main90159-60500

9017905030

main90179-05030

9018906203

main90189-06203

18 parts on this diagram · 1 diagram in section

REAR COMBINATION LAMP for Toyota MAJESTA

This section contains 18 genuine Toyota parts for the REAR COMBINATION LAMP system of the Toyota MAJESTA. Key components include: RETAINER, REAR BUMPER, UPPER RH, RETAINER, REAR BUMPER, UPPER LH, SIDE MEMBER, GUIDE, REAR COMBINATION LAMP, BULB, REAR TURN SIGNAL LAMP.
