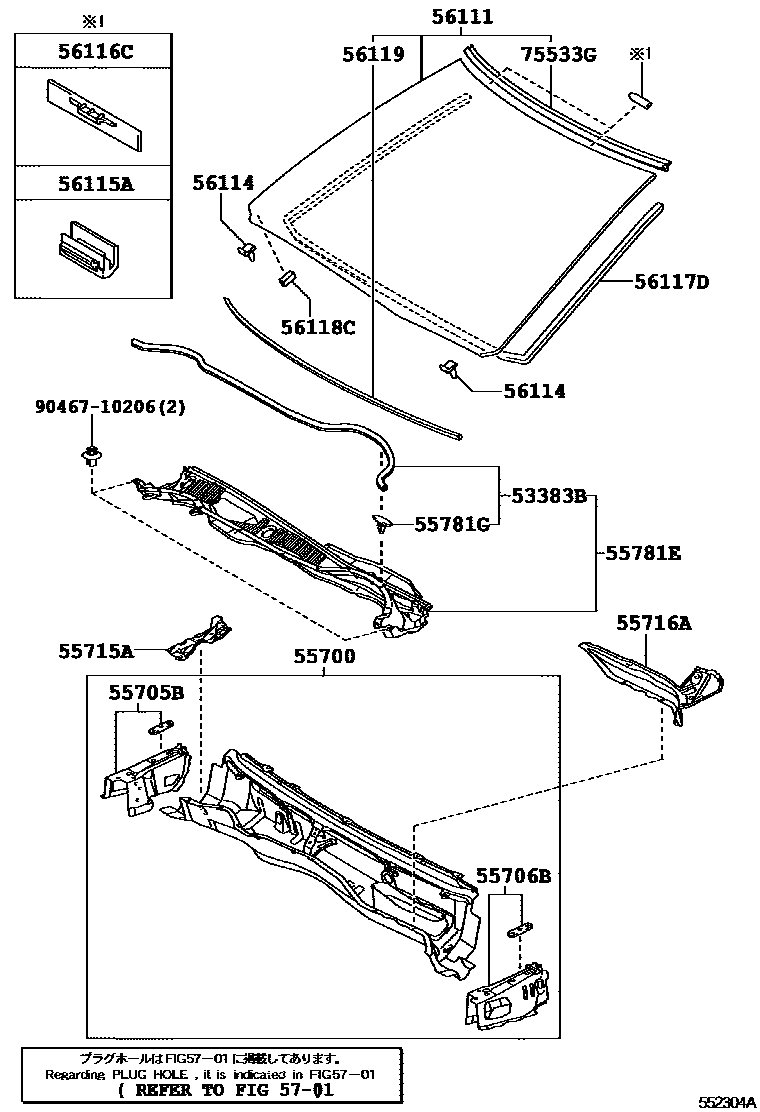

Toyota MAJESTA — COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
55700PANEL ASSY, FRONT
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55715ABRACE, COWL TOP TO APRON, RH
55716ABRACE, COWL TOP TO APRON, LH
55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR
55781GCLIP, COWL TOP VENTILATOR LOUVER
56111GLASS, WINDSHIELD
56114RETAINER, WINDSHIELD GLASS
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117DDAM, WINDSHIELD GLASS ADHESIVE
main56117-30360iURS206; URS206,UZS207; URS206,UZS207..C,G,IFOUR; URS206..C; URS206..C,G; URS206..G200903
56118CRETAINER, WINDSHIELD GLASS, NO.2
main56118-30100iURS206; URS206,UZS207; URS206,UZS207..C,G,IFOUR; URS206..C; URS206..C,G; URS206..G200903
56119SEAL, WINDSHIELD GLASS
5701HOLE PLUG
75533GMOULDING, WINDSHIELD, OUTSIDE
9046710206
main90467-10206
18 parts on this diagram · 1 diagram in section
COWL PANEL & WINDSHIELD GLASS for Toyota MAJESTA
This section contains 18 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota MAJESTA. Key components include: SEAL, HOOD TO COWL TOP, PANEL ASSY, FRONT, PANEL SUB-ASSY, COWL TOP SIDE, RH, PANEL SUB-ASSY, COWL TOP SIDE, LH, BRACE, COWL TOP TO APRON, RH.
