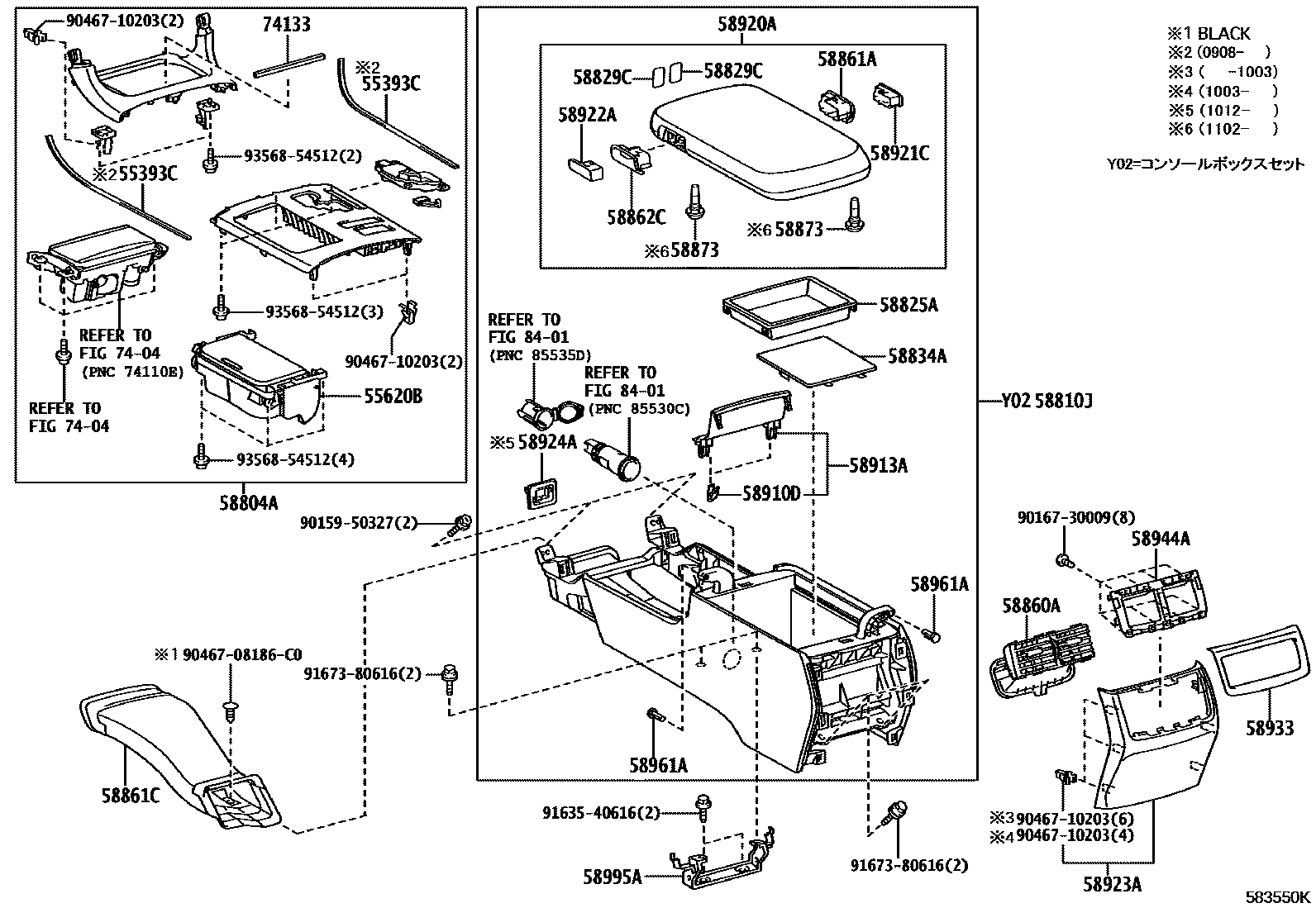

Toyota MAJESTA — CONSOLE BOX & BRACKET

55393CCUSHION, INSTRUMENT PANEL, LOWER NO.3

main55393-30020×2i200908

55620HOLDER ASSY, INSTRUMENT PANEL CUP

main55620-30200i200903

55620BHOLDER, INSTRUMENT PANEL CUP

main55619-30030-E0i200903-200908

DK.BROWN,TRIM0#,2#,4#

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-30690-E0i200903-200907

DK.BROWN,TRIM0#,2#,4#

main58804-30691-E0i200908-201307

DK.BROWN,TRIM0#,2#

main58804-30700-E0i200903-200907

main58804-30701-E0i200908-201307

58810JBOX ASSY, CONSOLE

main58810-30B50-A1i200903-201012

SHELL,TRIM0#

main58810-30B50-C0i200903-201012

BLACK,TRIM2#

main58810-30B50-C1i200903-201012

PLUM,TRIM4#

main58810-30C60-A1i201012-201101

SHELL,TRIM0#

main58810-30C60-C3i201012-201101

BLACK,TRIM2#

main58810-30C60-C4i201012-201101

PLUM,TRIM4#

main58810-30C61-A1i201102-201307

SHELL,TRIM0#

main58810-30C61-C3i201102-201307

BLACK,TRIM2#

main58810-30C61-C4i201102-201307

BLACK/PLUM,TRIM4#

58825APOCKET, CONSOLE BOX

main58825-30150i200903-201307

58829CSTOPPER, CONSOLE BOX POCKET

main58829-30060-A0×2i200903-201307

SHELL,TRIM0#

main58829-30060-C0×2i200903-201307

BLACK,TRIM2#; BLACK,TRIM2#,4#

58834ACOVER, CONSOLE, LOWER

main58834-30090i200903-201307

58860AREGISTER ASSY, CONSOLE BOX

main58860-30080i200903

58861ASUPPORT, CONSOLE BOX, NO.1

main58865-30120-A0i200903-201307

SHELL,TRIM0#

main58865-30120-C0i200903-201307

BLACK,TRIM2#; BLACK,TRIM2#,4#

58861CDUCT, CONSOLE BOX, NO.1

main58861-30110i200903

58862CSUPPORT, CONSOLE BOX, NO.2

main58866-30060-A0i200903-201307

SHELL,TRIM0#

main58866-30060-C0i200903-201307

BLACK,TRIM2#; BLACK,TRIM2#,4#

58873CUSHION, CONSOLE BOX, NO.3

main58873-30040×2i201102-201307

58910DCLIP(FOR CONSOLE BOX)

main90467-13082-A0×2i200903-201307

MELLOW WHITE

58913APANEL, BOX, NO.3

main58913-30060-A0i200903-201307

SHELL,TRIM0#

main58913-30060-C0i200903-201307

BLACK,TRIM2#; BLACK,TRIM2#,4#

58920AARMREST ASSY, REAR CONSOLE

main58920-30221-A1i200903-201012

SHELL,TRIM0#

main58920-30221-A2i201012-201101

SHELL,TRIM0#

main58920-30221-C0i200903-201012

BLACK,TRIM2#

main58920-30221-C1i200903-201012

BLACK,TRIM4#

main58920-30221-C3i201012-201101

BLACK,TRIM2#

main58920-30221-C4i201012-201101

PLUM,TRIM4#

main58920-30222-A2i201102-201307

SHELL,TRIM0#

main58920-30222-C3i201102-201307

BLACK,TRIM2#

main58920-30222-C4i201102-201307

BLACK,TRIM4#

58921CPLATE, BOX, UPPER NO.1

main58921-30060i200903-201307

58922APLATE, BOX, UPPER NO.2

main58922-30040i200903-201307

58923APANEL, CONSOLE REAR END

main58923-30170-A0i200903-201307

SHELL,TRIM0#

main58923-30170-C0i200903-201307

BLACK,TRIM2#; BLACK,TRIM2#,4#

58924APANEL, CONSOLE REAR END, NO.2

main58924-30160i201012-201307

58933GARNISH, CONSOLE REAR END PANEL

main58933-30090-E0i200903-201307

DK.BROWN,TRIM0#,2#; DK.BROWN,TRIM0#,2#,4#

58944ACOVER, CONSOLE, REAR

main58944-30071i200903

58961AHINGE, CONSOLE COMPARTMENT DOOR MALE

main58961-30110×2i200903-201307

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-30200i200903

7404ASH RECEPTACLE

→ Go to FIG 74-04

74133SEAL, FRONT ASH RECEPTACLE

main74133-30140i200903

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9015950327

main90159-50327

9016730009

main90167-30009

9046708186C0

main90467-08186C0

9046710203

main90467-10203

9163540616

main91635-40616

9167380616

main91673-80616

9356854512

main93568-54512

34 parts on this diagram · 2 diagrams in section

CONSOLE BOX & BRACKET for Toyota MAJESTA

This section contains 69 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota MAJESTA. Key components include: CUSHION, INSTRUMENT PANEL, LOWER NO.3, CUSHION, GLOVE COMPARTMENT DOOR CHECK, HOLDER ASSY, INSTRUMENT PANEL CUP, HOLDER, INSTRUMENT PANEL CUP, PANEL SUB-ASSY, CONSOLE, UPPER.
