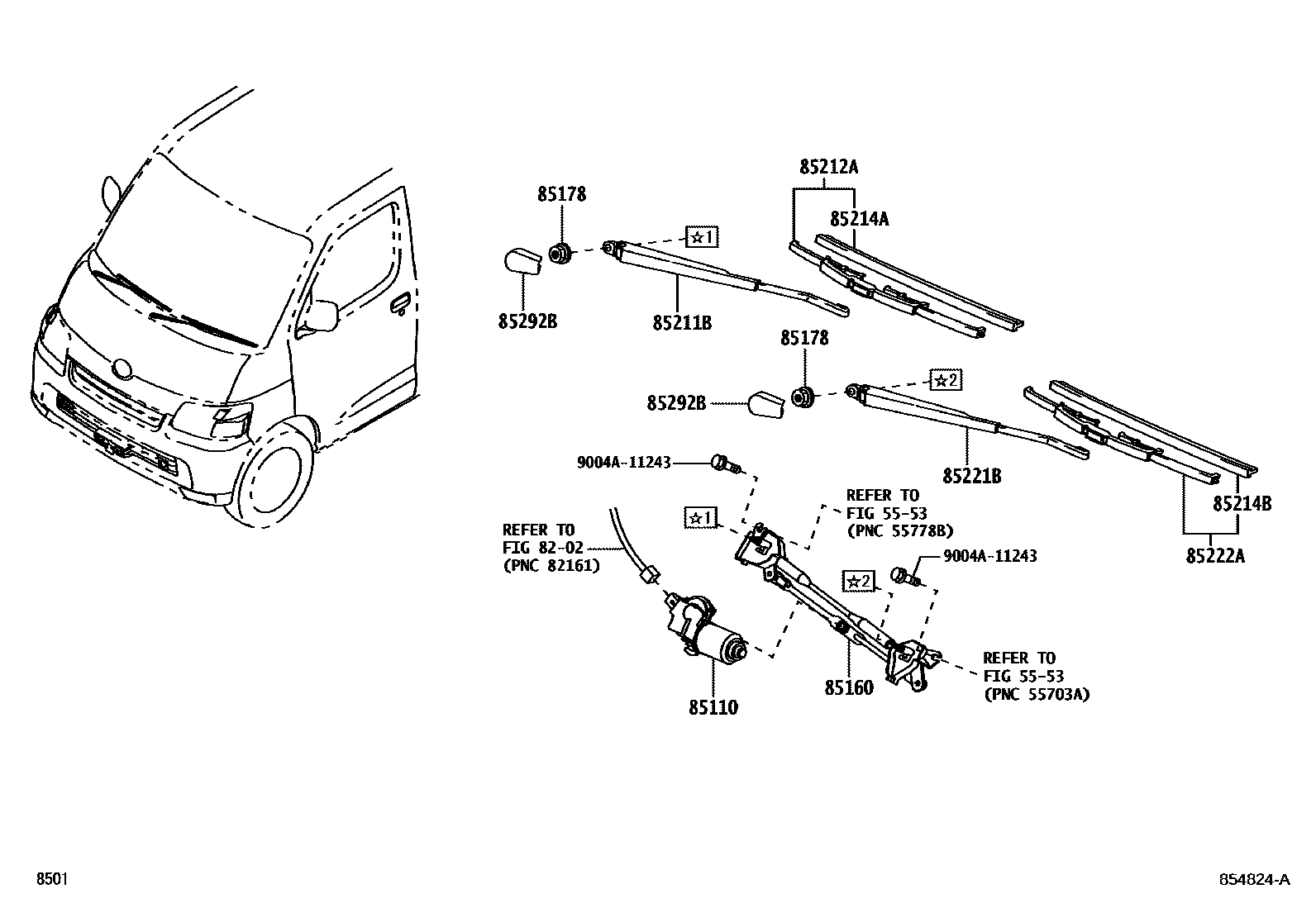

Toyota LITEACE — WINDSHIELD WIPER

0001 1 0002 1

5553

8202

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-BZ091iS403..RHD202205

main85110-BZ111iS403..LHD202205

85160LINK ASSY, WINDSHIELD WIPER

main85150-BZ090iS403..RHD202205

main85150-BZ100iS403..LHD202205

85178NUT (FOR FRONT WIPER ARM SETTING)

main81128-87205×2iS403202205-202209

main90041-79379×2iS403202209

85211BARM, FRONT WIPER, RH

main85211-BZ110iS403..RHD202205

main85221-BZ110iS403..LHD202205

85212ABLADE, FR WIPER, RH

main85212-BZ090iS403..RHD202205

main85222-BZ100iS403..LHD202205

85214ARUBBER, WIPER, RH

main85214-BZ140iS403202205

85214BRUBBER, WIPER, LH

main85214-BZ140iS403202205

85221BARM, FRONT WIPER, LH

main85211-BZ120iS403..LHD202205

main85221-BZ100iS403..RHD202205

85222ABLADE, FR WIPER, LH

main85212-BZ100iS403..LHD202205

main85222-BZ090iS403..RHD202205

85292BCAP, FRONT WIPER ARM HEAD

main85292-BZ110×2iS403202205

9004A11243

main9004A-11243

13 parts on this diagram · 2 diagrams in section
