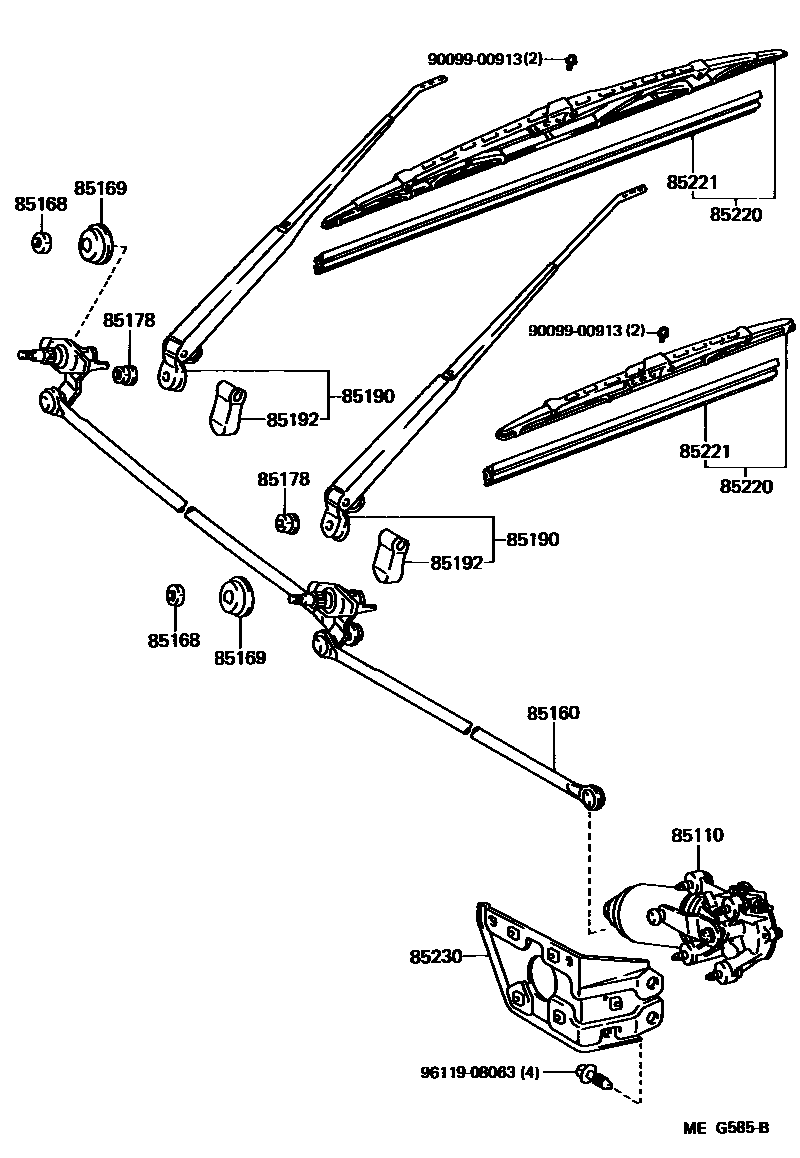

Toyota LITEACE — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-95716iCM36,KM36,YM3#..RHD198808-199804

sub85110-27010

main85110-95717iCM36,KM3#..LHD198808-199804

sub85110-95719

85160LINK ASSY, WINDSHIELD WIPER

main85160-95707iCM36,KM36,YM3#..RHD198808-199804

main85160-95708iCM36,KM3#..LHD198808-199804

85168NUT, WINDSHIELD WIPER LINK PIVOT

main85168-95700×2iCM36,KM3#,YM3#198808-199804

85169WASHER, WINDSHIELD WIPER LINK PIVOT, NO.1

main85179-95701×2iCM36,KM3#,YM3#198808-199804

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-08123×2iCM36,KM3#,YM3#198808-199804

85190ARM ASSY, WINDSHIELD WIPER

main85190-95715iCM36,KM36,YM3#..RHD198808-199804

RH

main85190-95716iCM36,KM3#..LHD198808-199804

RH

main85210-95705iCM36,KM36,YM3#..RHD198808-199804

LH

main85210-95706iCM36,KM3#..LHD198808-199804

LH

85192COVER, WINDSHIELD WIPER ARM

main85192-28020×2iCM36,KM3#,YM3#198808-199804

85220BLADE ASSY, WINDSHIELD WIPER

main85220-14390iCM36,KM3#..LHD198808-199804

RH

main85220-22500iCM36,KM36,YM3#..RHD198808-199804

LH

main85220-32410iCM36,KM3#..LHD198808-199804

LH

main85220-32420iCM36,KM36,YM3#..RHD198808-199804

RH

85221BLADE, WINDSHIELD WIPER

main85221-12220iCM36,KM3#..LHD198808-199804

RH

sub85214-12H90

main85221-95703iCM36,KM36,YM3#..RHD198808-199804

LH

sub85214-12H90

main85221-95704iCM36,KM36,YM3#..RHD198808-199804

RH

sub85214-27H90

main85221-95705iCM36,KM3#..LHD198808-199804

LH

sub85214-27H90

85230BRACKET ASSY, WINDSHIELD WIPER

main85269-95700iCM36,KM36,YM3#..RHD198808-199804

main85269-95701iCM36,KM3#..LHD198808-199804

9009900913

main90099-00913

9611908063

main96119-08063

12 parts on this diagram · 1 diagram in section
