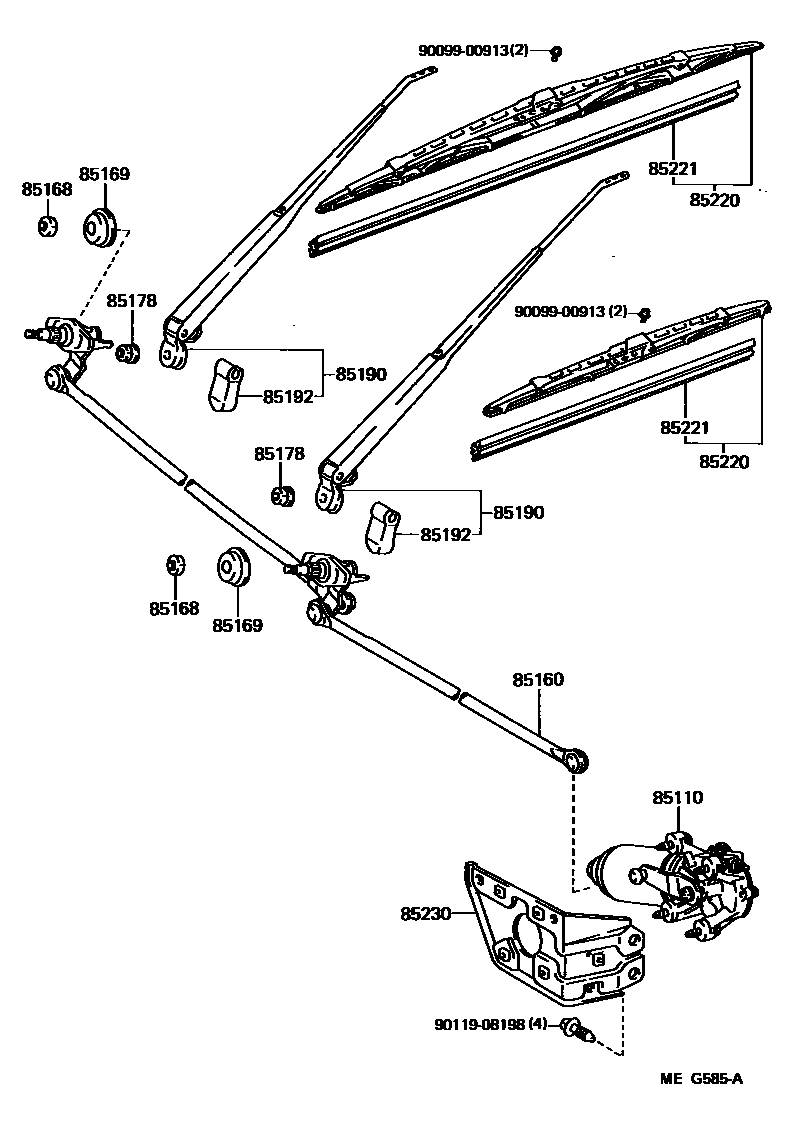

Toyota LITEACE — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-95716iCM3#,KM36,YM3#,4#..RHD198509-198808

sub85110-27010

main85110-95717iCM35,KM3#..LHD198509-198808

sub85110-95719

85160LINK ASSY, WINDSHIELD WIPER

main85160-95707iCM3#,KM36,YM3#,4#..RHD198509-198808

main85160-95708iCM35,KM3#..LHD198509-198808

85168NUT, WINDSHIELD WIPER LINK PIVOT

main85168-95700×2iCM3#,KM3#,YM3#,4#198509-198808

85169WASHER, WINDSHIELD WIPER LINK PIVOT, NO.1

main85179-95701×2iCM3#,KM3#,YM3#,4#198509-198808

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-08123×2iCM3#,KM3#,YM3#,4#198509-198808

85190ARM ASSY, WINDSHIELD WIPER

main85190-95715iCM3#,KM36,YM3#,4#..RHD198509-198808

RH

main85190-95716iCM35,KM3#..LHD198509-198808

RH

main85210-95705iCM3#,KM36,YM3#,4#..RHD198509-198808

LH

main85210-95706iCM35,KM3#..LHD198509-198808

LH

85192COVER, WINDSHIELD WIPER ARM

main85192-28020×2iCM3#,KM3#,YM3#,4#198509-198808

85220BLADE ASSY, WINDSHIELD WIPER

main85220-14390iCM35,KM3#..LHD198509-198808

RH

main85220-22500iCM3#,KM36,YM3#,4#..RHD198509-198808

LH

main85220-32410iCM35,KM3#..LHD198509-198808

LH

main85220-32420iCM3#,KM36,YM3#,4#..RHD198509-198808

RH

85221BLADE, WINDSHIELD WIPER

main85221-12220iCM35,KM3#..LHD198509-198808

RH

sub85214-12H90

main85221-95703iCM3#,KM36,YM3#,4#..RHD198509-198808

LH

sub85214-12H90

main85221-95704iCM3#,KM36,YM3#,4#..RHD198509-198808

RH

sub85214-27H90

main85221-95705iCM35,KM3#..LHD198509-198808

LH

sub85214-27H90

85230BRACKET ASSY, WINDSHIELD WIPER

main85269-95700iCM3#,KM36,YM3#,4#..RHD198509-198808

main85269-95701iCM35,KM3#..LHD198509-198808

9009900913

main90099-00913

9011908198

main90119-08198

12 parts on this diagram · 1 diagram in section
