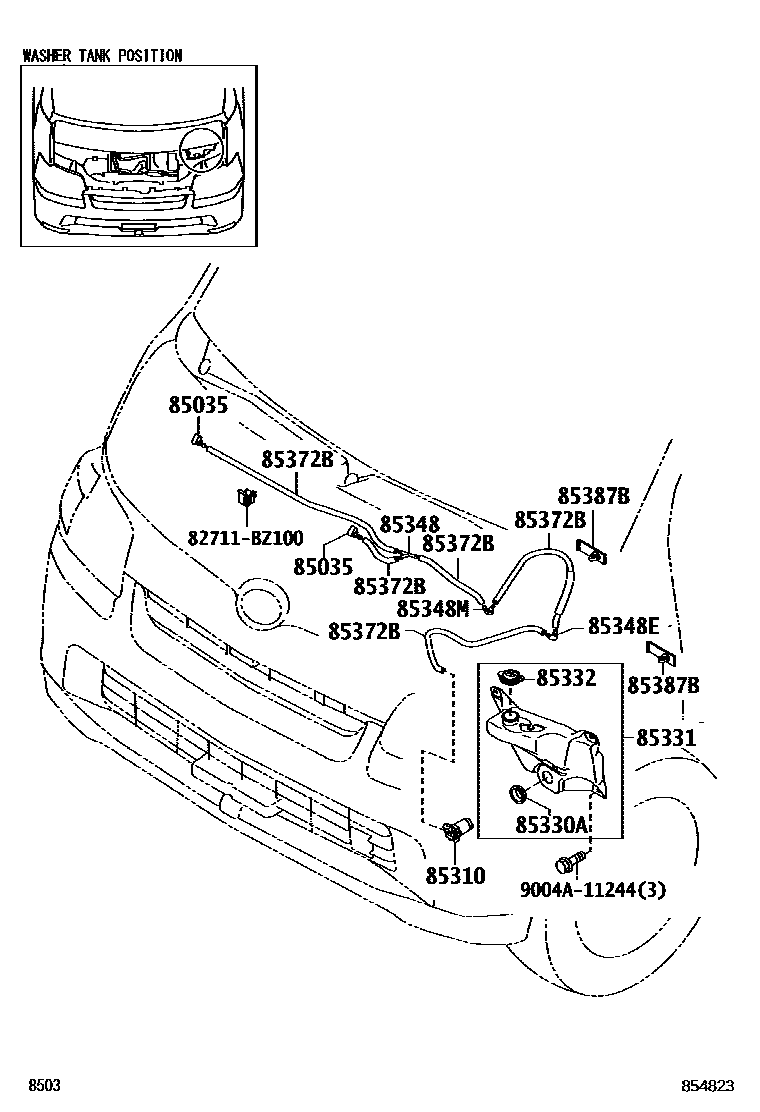

Toyota LITEACE — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-BZ080×2iS403202205

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-BZ060iS403202205

85330ABUSH, WINDSHIELD WASHER JAR

main85373-97202iS403202205

85331JAR SUB-ASSY, WINDSHIELD WASHER

main85315-BZ080iS403202205

85332CAP, WINDSHIELD WASHER JAR

main85332-87204iS403202205

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-87201iS403202205

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85349-87602iS403202205

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85279-BZ010iS403202205

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main9004B-44007×5iS403202205

85387BCLAMP, WASHER, NO.3

main82711-52090×2iS403202205

82711BZ100WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-BZ100

9004A11244

main9004A-11244

12 parts on this diagram · 1 diagram in section
