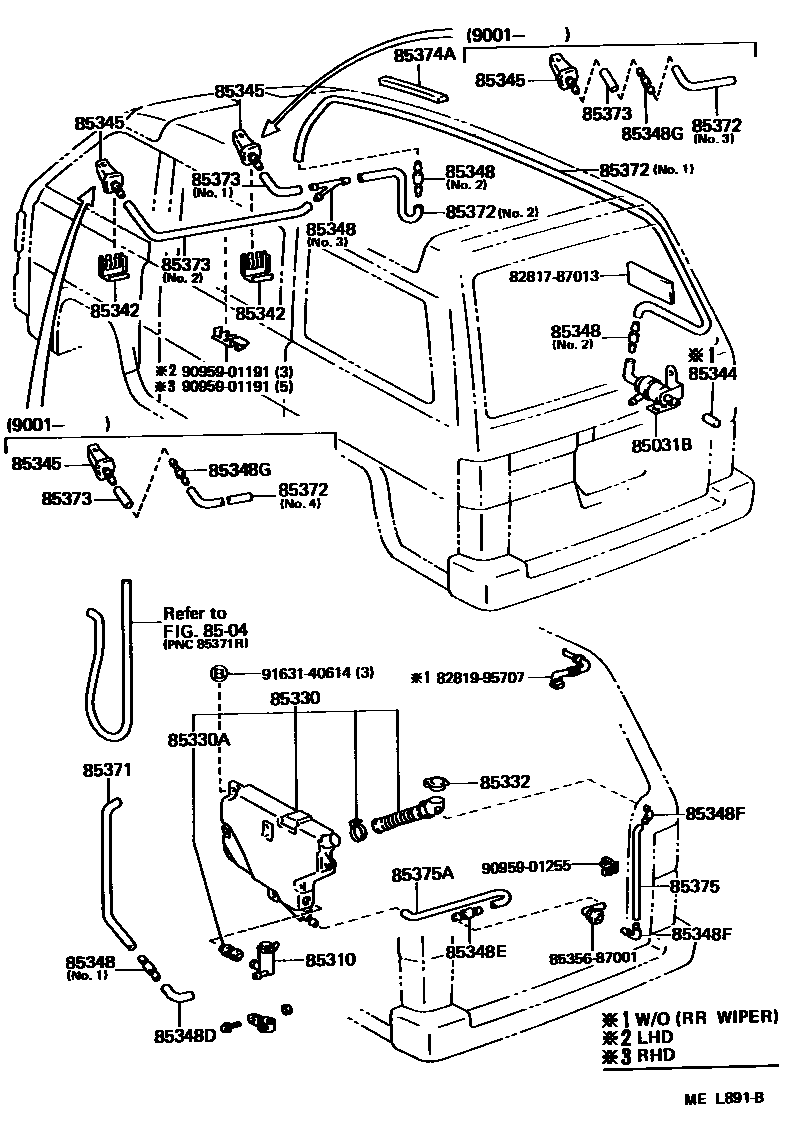

Toyota LITEACE — WINDSHIELD WASHER

85031BVALVE SUB-ASSY, WASHER

main85031-95700iCM36,KM3#,YM3#198808-198909

main85321-95700iCM36,KM3#,YM3#198909-199804

8504

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-22080iCM36,KM3#,YM3#198808-199804

85330JAR ASSY, WINDSHIELD WASHER

main85331-95700iCM36,KM3#,YM3#198808-199804

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iCM36,KM3#,YM3#198808-199804

85332CAP, WINDSHIELD WASHER JAR

main85332-95700iCM36,KM3#,YM3#198808-199804

85342HOLDER, WASHER NOZZLE

main85342-95J01×2iCM36,KM3#,YM3#198808-199804

85344TUBE, WINDSHIELD WASHER HOSE, STOP

main85344-30010iKM36..GEN;KM36..03S..ARL;CM36,KM30,37,YM31,35198808-199212

85345NOZZLE, WINDSHIELD WASHER

main85035-95714×2iCM36,KM3#,YM3#198808-199804

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-12250iCM36,KM3#,YM3#198808-199804

NO.3

main85349-14010iCM36,KM3#,YM3#198808-199804

NO.2

sub85334-22470

main85349-89122iCM36,KM36,YM35199304-199804

NO.1

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-14481iCM36,KM3#,YM3#198808-199804

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85349-89122iCM36,KM3#,YM3#198808-199804

85348FJOINT, WINDSHIELD WASHER ELBOW, NO.3

main85355-20200×2iCM36,KM3#,YM3#198808-199804

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85031-12250×2iCM36,KM3#,YM3#199001-199804

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90446-06013iCM36,KM3#,YM3#198808-199804

L=1450(*H,L=320)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85343-95706iCM36,KM3#,YM3#198808-199804

L=4700,NO.1

main90446-06013iCM36,KM3#,YM3#199001-199804

L=1000,NO.3,NO.4

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90446-06013iCM36,KM3#,YM3#198808-199001

L=1000,NO.1

main90446-06052iCM36,KM3#,YM3#198808-199001

L=1000(*H,L=660),NO.2

sub90099-33245

main90446-07001×2iCM36,KM3#,YM3#199001-199804

L=1800

85374APROTECTOR, WASHER HOSE

main82718-87002×3iKM30,YM31;CM36,YM30,35..ARL199001-199804

main85374-95701iCM36,KM36,37..SRF198811-199804

85375HOSE, WINDSHIELD WASHER, NO.1(FOR LEVEL GAGE)

main90446-06013iCM36,KM3#,YM3#198808-199804

L=1800(*H,L=340)

85375AHOSE, WINDSHIELD WASHER, NO.2(FOR LEVEL GAGE)

main90446-06013iCM36,KM3#,YM3#198808-199804

L=1800(*H,L=385)

8281787013PROTECTOR, WIRING HARNESS, NO.1

main82817-87013

8281995707GROMMET, WIRING HARNESS

main82819-95707

8535687001PACKING (FOR WINDSHIELD WASHER JAR)

main85356-87001

9095901191

main90959-01191

9095901255

main90959-01255

9163140614

main91631-40614

26 parts on this diagram · 1 diagram in section
