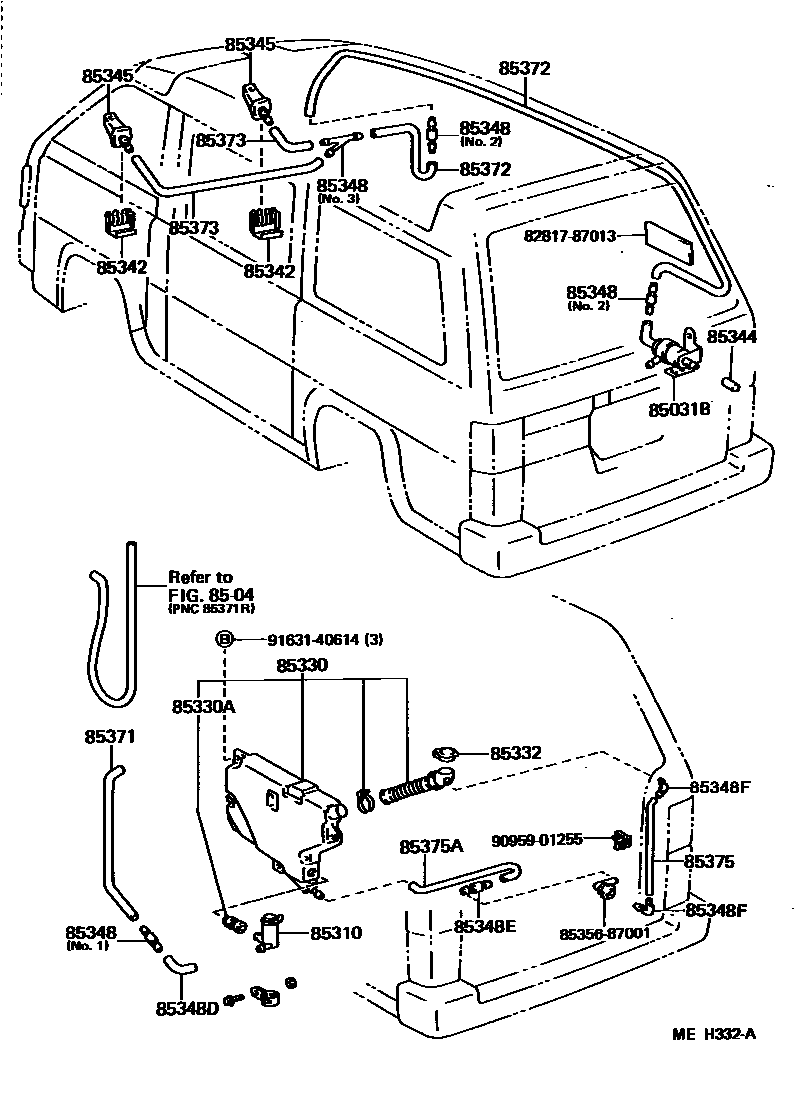

Toyota LITEACE — WINDSHIELD WASHER

85031BVALVE SUB-ASSY, WASHER

main85031-95700iCM3#,KM3#,YM3#,4#198509-198808

sub85321-95700

8504

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-22080iCM3#,KM3#,YM3#,4#198509-198808

85330JAR ASSY, WINDSHIELD WASHER

main85331-95700iCM3#,KM3#,YM3#,4#198509-198808

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iCM3#,KM3#,YM3#,4#198509-198808

85332CAP, WINDSHIELD WASHER JAR

main85332-95700iCM3#,KM3#,YM3#,4#198509-198808

85342HOLDER, WASHER NOZZLE

main85342-95J01×2iCM3#,KM3#,YM3#,4#198509-198808

85344TUBE, WINDSHIELD WASHER HOSE, STOP

main85344-30010iCM3#,KM37;KM36..SRF198509-198808

W/O RR WIPER

85345NOZZLE, WINDSHIELD WASHER

main85035-95714×2iCM3#,KM3#,YM3#,4#198509-198808

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-12250iCM3#,KM3#,YM3#,4#198509-198808

NO.3

main85349-14010×2iCM3#,KM3#,YM3#,4#198509-198808

NO.2

sub85334-22470

main85349-89122iCM35,KM3#,YM30,35,4#198703-198808

NO.1

main85355-87201iCM35,KM3#,YM3#,4#198509-198703

NO.1

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-14481iCM3#,KM3#,YM30,35,4#198705-198808

main85355-20070iCM35,KM3#,YM3#,4#198509-198705

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85349-89122iCM3#,KM3#,YM30,35,4#198608-198808

main85355-89122iCM35,KM36,YM3#,4#198509-198608

85348FJOINT, WINDSHIELD WASHER ELBOW, NO.3

main85355-20200×2iCM3#,KM3#,YM3#,4#198509-198808

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90446-06013iCM3#,KM3#,YM3#,4#198509-198808

L=1800(*H,L=330)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85343-95705iCM35,KM36,YM3#,4#198509-198608

L=4570

main85343-95706iCM3#,KM3#,YM30,35,4#198608-198808

L=4700

main90446-06013iCM35,KM36,YM3#,4#198509-198608

L=1800(*H,L=385)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90446-06013iCM3#,KM3#,YM3#,4#198509-198808

L=1800(*H,L=700)

85375HOSE, WINDSHIELD WASHER, NO.1(FOR LEVEL GAGE)

main90446-06013iCM3#,KM3#,YM3#,4#198509-198808

L=1000(*H,L=340)

85375AHOSE, WINDSHIELD WASHER, NO.2(FOR LEVEL GAGE)

main90446-06013iCM3#,KM3#,YM3#,4#198509-198808

L=1800(*H,L=385)

8281787013PROTECTOR, WIRING HARNESS, NO.1

main82817-87013

8535687001PACKING (FOR WINDSHIELD WASHER JAR)

main85356-87001

9095901255

main90959-01255

9163140614

main91631-40614

22 parts on this diagram · 1 diagram in section
