Toyota LITEACE — TOOL BOX & LICENSE PLATE BRACKET

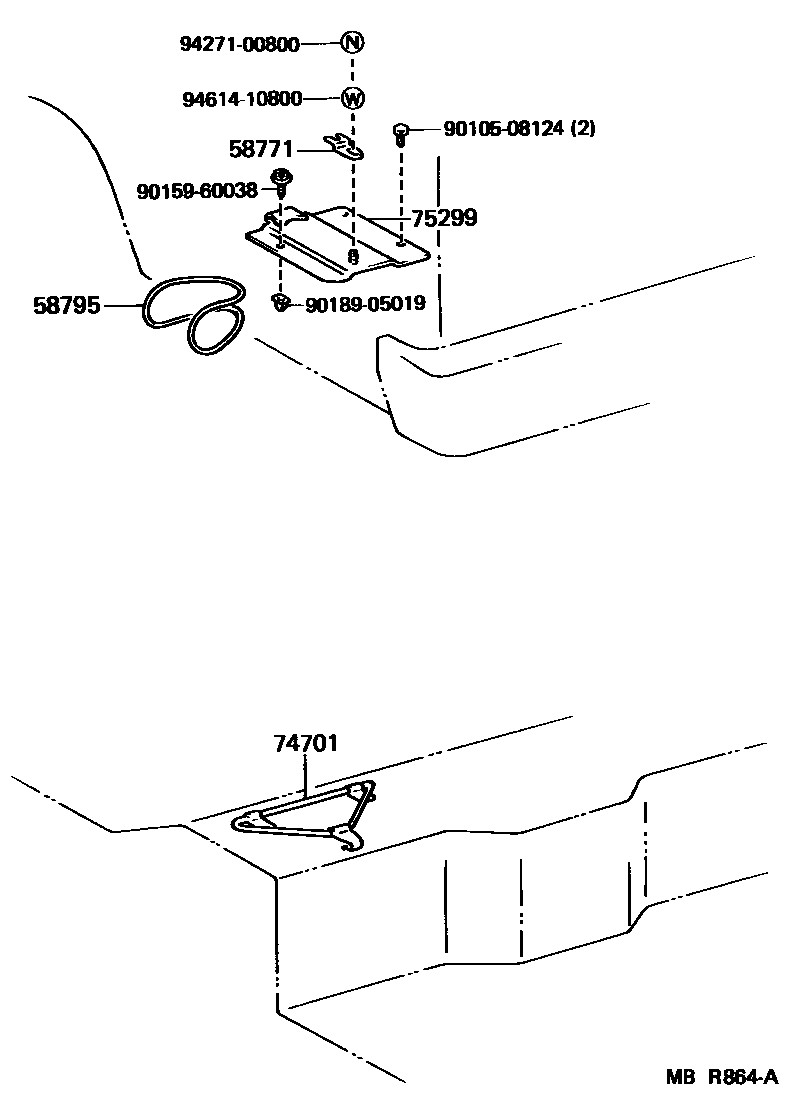

Parts diagram

58771CLAMP, JACK, NO.1

main75298-95700i198808-199804

58795BAND, JACK CLAMP, NO.1

main58795-20011i198808-199201

74701CLAMP SUB-ASSY, TOOL BAG

main74701-95601i198808-199804

75299BASE, JACK HOLDER

main75299-27010i198912-199804

main75299-95700i198808-198912

9010508124

main90105-08124

9015960038

main90159-60038

9018905019

main90189-05019

9427100800

main94271-00800

9461410800

main94614-10800

9 parts on this diagram · 1 diagram in section

TOOL BOX & LICENSE PLATE BRACKET for Toyota LITEACE

This section contains 9 genuine Toyota parts for the TOOL BOX & LICENSE PLATE BRACKET system of the Toyota LITEACE. Key components include: CLAMP, JACK, NO.1, BAND, JACK CLAMP, NO.1, CLAMP SUB-ASSY, TOOL BAG, BASE, JACK HOLDER.
