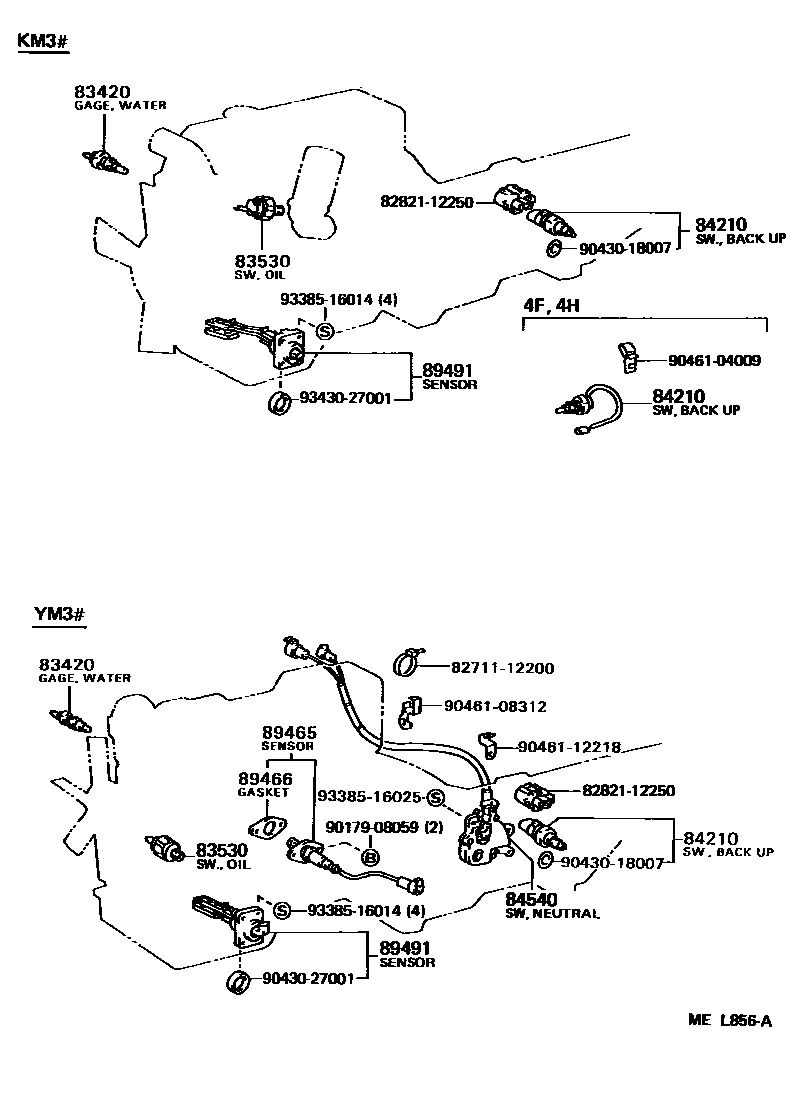

Toyota LITEACE — SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20020iCM36,KM3#,YM3#198808-199804

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14030iYM3#198808-199803

main83530-28030iYM3#199803-199804

main83530-30060iCM36198808-199804

sub83530-60030

main83530-30080iKM3#198808-199804

sub83530-60040

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iCM36,KM30,36,YM3#..5F,5H198808-199804

sub84210-52050

main84210-26030iCM36,KM36,37..4F,4H198808-199201

84540SWITCH ASSY, NEUTRAL START

main84540-35010iYM30,35..4FC198808-199201

89465SENSOR, OXYGEN

main89465-19066iYM3#198808-198904

main89465-19067iYM30,35..ARL198904-199201

89466GASKET, OXYGEN SENSOR

main89466-20020iYM30,35..ARL198810-199201

main89466-30010iYM3#198808-198810

89491SENSOR, ENGINE OIL LEVEL

main89491-27010iKM36..ARL198808-199201

main89491-27020iYM30,35198808-199804

main89491-27030iCM36..ARL198808-199201

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8282112250RETAINER, HEADLAMP HARNESS

main82821-12250

9017908059

main90179-08059

9043018007

main90430-18007

9043027001

main90430-27001

9046104009

main90461-04009

9046108312

main90461-08312

9046112218

main90461-12218

9338516014

main93385-16014

9338516025

main93385-16025

9343027001

main93430-27001

18 parts on this diagram · 7 diagrams in section
