Toyota LITEACE — SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1

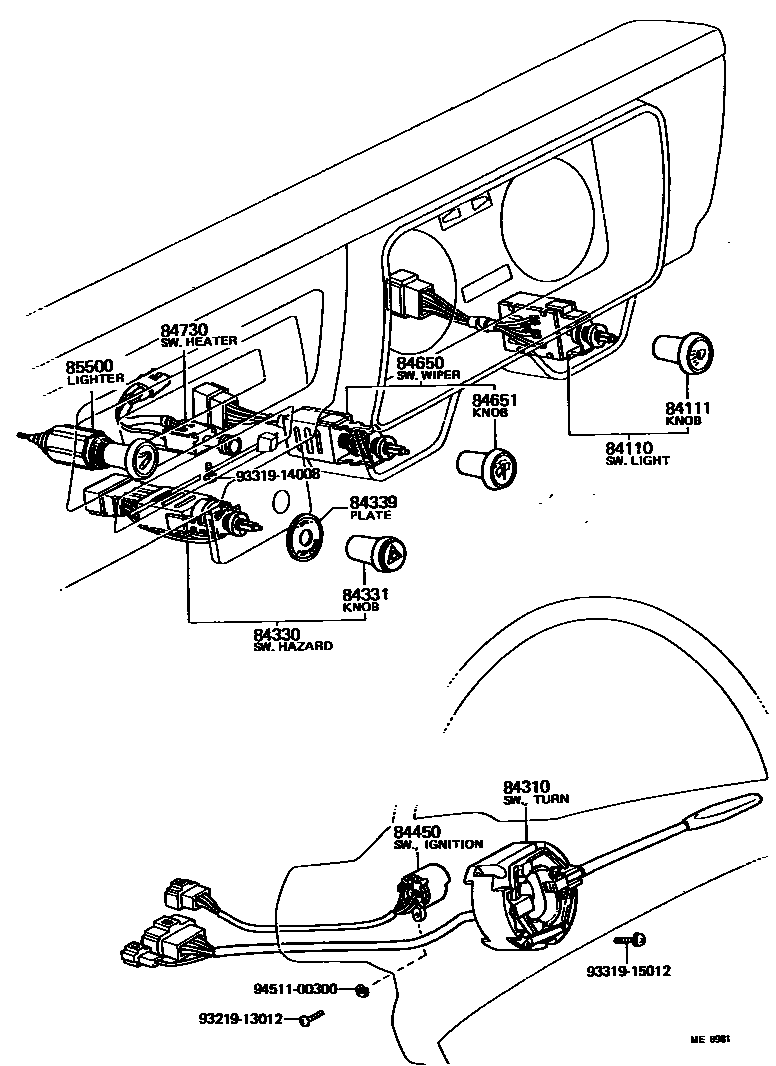

84110SWITCH ASSY, LIGHT CONTROL, NO.1

main84110-26012iKM10197105-197411

main84112-25010iKM10197411-197511

main84112-27011iKM10197511-197610

main84112-29015iKM1#197610-197909

sub84112-29016

84111KNOB, LIGHT CONTROL SWITCH

main84111-10021iKM10197105-197511

sub84111-10030

main84111-11020iKM10197511-197610

84310SWITCH ASSY, TURN SIGNAL

main84310-27010iKM10197105-197511

main84310-27011iKM10197511-197610

main84310-28010iKM1#197610-197909

sub84310-28011

84330SWITCH ASSY, HAZARD WARNING SIGNAL

main84330-35020iKM10197105-197411

main84332-11010iKM10197411-197511

main84332-26020iKM10197511-197610

84331KNOB, HAZARD WARNING SIGNAL SWITCH

main84331-10012iKM10197511-197610

main84331-12011iKM10197105-197511

84339PLATE, PARKING LAMP SWITCH CAUTION

main84334-95700iKM10197309-197511

main84334-95701iKM10197511-197610

main84339-27010iKM10197105-197309

sub84339-27020

84450SWITCH ASSY, IGNITION OR STARTER

main84450-10050iKM10197309-197511

main84450-27020iKM10197511-197610

main84450-28010iKM11197802-197909

FOR STARTER 12V 0.6KW

main84450-30120iKM10197610-197802

sub84450-12041

main84450-30131iKM11197802-197909

FOR STARTER 12V 0.8KW

sub84450-26040

84650SWITCH ASSY, WINDSHIELD WIPER

main84650-27011iKM10197105-197411

main84652-27010iKM10197411-197610

main84652-29015iKM1#197610-197909

sub84652-29016

84651KNOB, WINDSHIELD WIPER SWITCH

main84651-10021iKM10197105-197511

sub84651-10030

main84651-11020iKM10197511-197610

84730SWITCH ASSY, HEATER BLOWER

main84730-12010iKM10..SRF197105-197607

main84732-27010iKM11197802-197909

main84732-87001iKM10197610-197802

85500LIGHTER ASSY, CIGARETTE

main85500-10020iKM10197105-197511

main85500-10030iKM10197511-197701

sub85500-20042

main85500-26010iKM1#197701-197909

sub85500-16060

9321913012

main93219-13012

9331914008

main93319-14008

9331915012

main93319-15012

9451100300

main94511-00300

15 parts on this diagram · 5 diagrams in section
