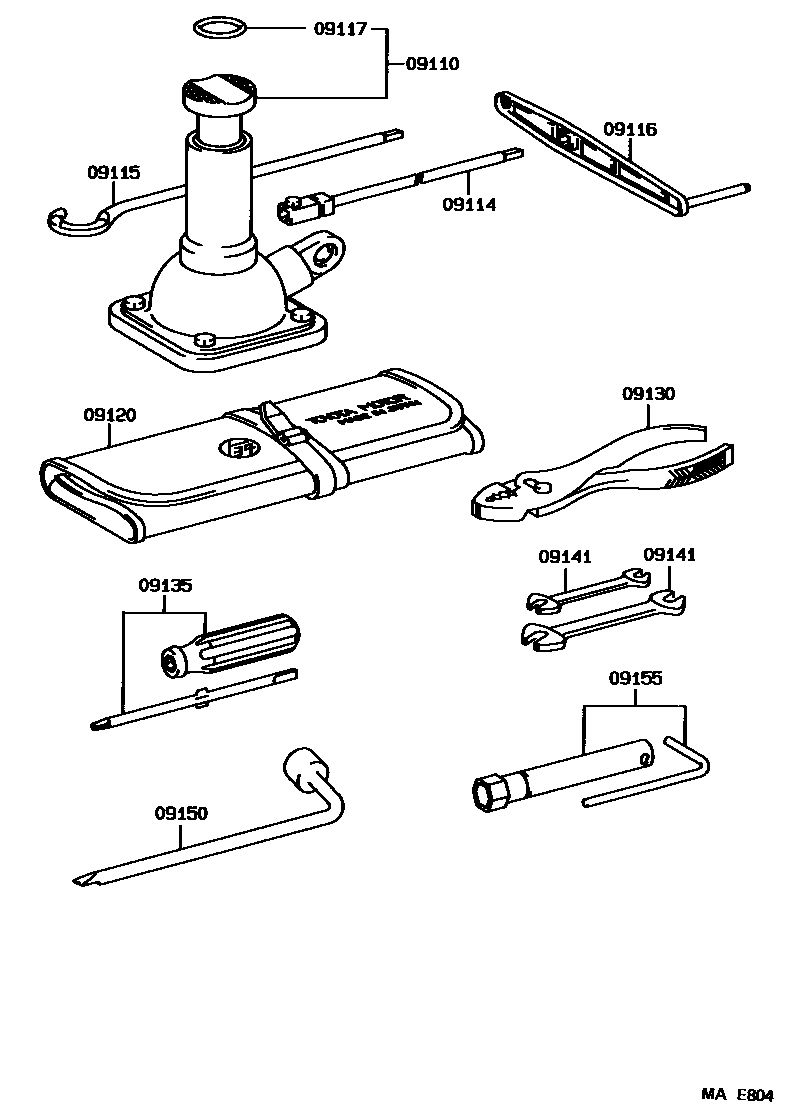

Toyota LITEACE — STANDARD TOOL

09110JACK ASSY

main09110-27050iCM36,KM36,YM3#..ARL198808-198912

main09110-95701iCM36,KM36,YM30,35..ARL198912-199201

main09111-27050iYM35..GEN198905-198912

main09111-27070iYM35..GEN199101-199105

main09111-27080iCM36,KM3#..LHD199101-199105

main09111-95701iCM36,KM3#..GEN198808-198912

main09111-95702iYM35..GEN198912-199101

main09111-95703iCM36,KM3#,YM31..GEN199105-199201

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-28010×2iCM36,KM3#,YM3#199211-199804

main09114-60050×2iCM36,KM3#,YM3#198808-199211

09115ROD SUB-ASSY, JACK HANDLE

main09115-28030iCM36,KM3#,YM3#198905-199201

main09115-60030iCM36,KM3#,YM3#198808-198905

09116LEVER, JACK HANDLE

main09116-35040iCM36,KM3#,YM3#198808-198810

main09116-35041iCM36,KM3#,YM3#199201-199804

09117SILENCER, SCREW JACK

main09117-26010iKM30,37,YM30;CM36,KM36..LHD;CM36,KM36,YM35..ARL199012-199804

09120BAG, TOOL

main09120-26021iCM36,KM3#,YM3#198808-199201

sub09120-35170

09130PLIERS

main99913-11500iCM36,KM3#,YM3#198808-199201

09135DRIVER, SCREW

main99915-10700iCM36,KM3#,YM3#199201-199804

09141SPANNER

main99914-10810iCM36,KM3#,YM3#198808-199201

8 X 10

main99914-11214iCM36,KM3#,YM3#198808-199201

12 X 14

09150WRENCH, HUB NUT BOX

main09150-35020iCM36,KM3#,YM3#199108-199201

sub09150-40010

09155WRENCH, SPARK PLUG

main09155-26010iYM3#198808-199804

main09155-44010iKM3#198808-199804

11 parts on this diagram · 1 diagram in section
