Toyota LITEACE — STANDARD TOOL

09110JACK ASSY

main09111-27050iYM30,31;CM35,KM36,YM35,4#..ARL198509-198808

main09111-35110iCM35,KM36..GEN198509-198701

main09111-95701iCM35,KM36..GEN198701-198808

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-60040×2iCM35,KM36,YM3#,4#198509-198603

main09114-60050×2iCM35,KM3#,YM3#,4#198603-198808

sub09114-28010

09115ROD SUB-ASSY, JACK HANDLE

main09115-60030iCM35,KM3#,YM3#,4#198509-198808

09116LEVER, JACK HANDLE

main09116-35040iCM35,KM3#,YM3#,4#198509-198808

sub09116-35041

09120BAG, TOOL

main09120-26021iCM35,KM3#,YM3#198509-198808

sub09120-35170

main09120-28010iYM4#198601-198808

09130PLIERS

main99913-11500iCM35,KM3#,YM3#,4#198509-198808

09135DRIVER, SCREW

main99915-10700iCM35,KM3#,YM3#,4#198509-198808

09140SPANNER SET

main09140-27010iCM35,KM36,YM3#,4#198509-198608

09141SPANNER

main99914-10810iCM35,KM3#,YM30,35,4#198608-198808

8 X 10,8X10

main99914-11012iCM35,KM36,YM3#,4#198509-198608

10 X 12,10X12

main99914-11214iCM35,KM3#,YM30,35,4#198608-198808

12 X 14,12X14

main99914-11417iCM35,KM36,YM3#,4#198509-198608

14 X 17,14X17

09145WRENCH, MONKEY

main99911-10200iCM35,KM36,YM3#,4#198509-198605

main99911-11200iCM35,KM36,YM3#,4#198605-198608

09150WRENCH, HUB NUT BOX

main09150-35020iCM35,KM3#,YM3#,4#198509-198808

sub09150-40010

09155WRENCH, SPARK PLUG

main09155-26010iYM3#,4#198509-198808

main09155-44010iKM3#198509-198808

09183AREPLACER, WHEEL CAP

main09183-28010iYM4#198601-198808

sub09183-28020

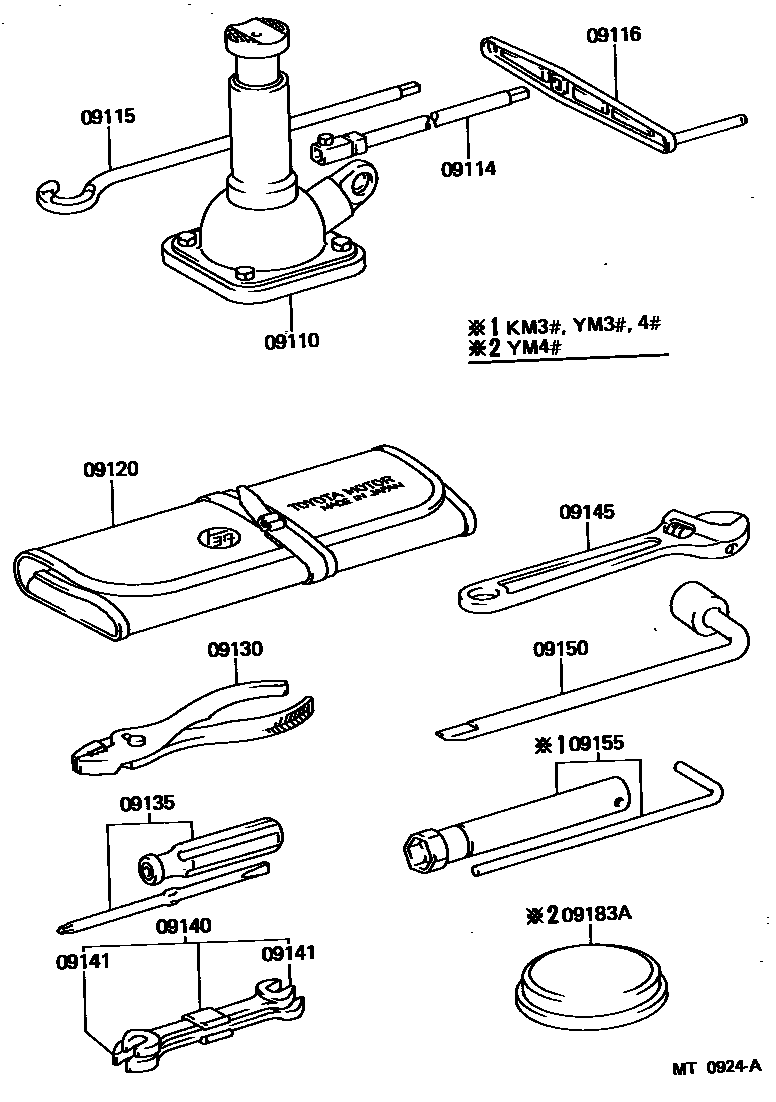

13 parts on this diagram · 1 diagram in section
