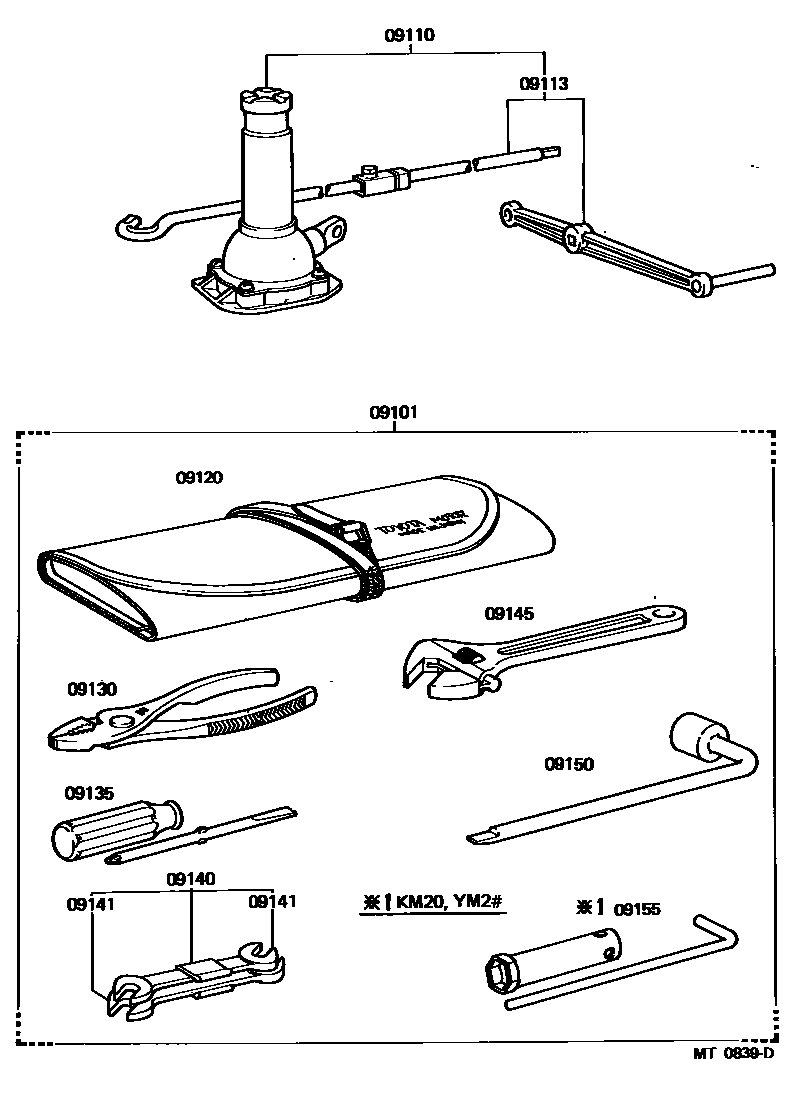

Toyota LITEACE — STANDARD TOOL

09101TOOL SET, STANDARD W/O JACK

main09101-26190iCM20198210-198508

main09101-26191iKM20,YM20198205-198508

main09101-26192iYM21198311-198508

main09101-27070iKM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S197910-198205

09110JACK ASSY

main09110-27030iCM20,KM20,YM2#197910-198508

sub09111-27030

09113HANDLE, JACK

main09113-25060iCM20,YM2#;KM20..V4D..02S;KM20..03S,05S,06S,08S,09S198401-198508

main09113-27020iCM20,YM21;KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S197910-198401

09120BAG, TOOL

main09120-12011iKM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S197910-198205

main09120-26021iCM20,KM20,YM2#198205-198508

sub09120-35170

09130PLIERS

main09130-00010iKM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S197910-198205

sub09130-00012

main99913-11500iCM20,KM20,YM2#198205-198508

09135DRIVER, SCREW

main99915-10700iCM20,KM20,YM2#197910-198508

09140SPANNER SET

main09140-27010iCM20,KM20,YM2#197910-198508

09141SPANNER

main99914-11012iCM20,KM20,YM2#197910-198508

10 X 12,10X12

main99914-11417iCM20,KM20,YM2#197910-198508

14 X 17,14X17

09145WRENCH, MONKEY

main99911-10200iCM20,KM20,YM2#197910-198508

sub99911-11200

09150WRENCH, HUB NUT BOX

main09150-00010iKM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S197910-198205

main09150-35020iCM20,KM20,YM2#198205-198508

sub09150-40010

09155WRENCH, SPARK PLUG

main09155-12010iKM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S197910-198205

main09155-41010iYM21198311-198508

main09155-44010iKM20,YM20198205-198508

11 parts on this diagram · 1 diagram in section
