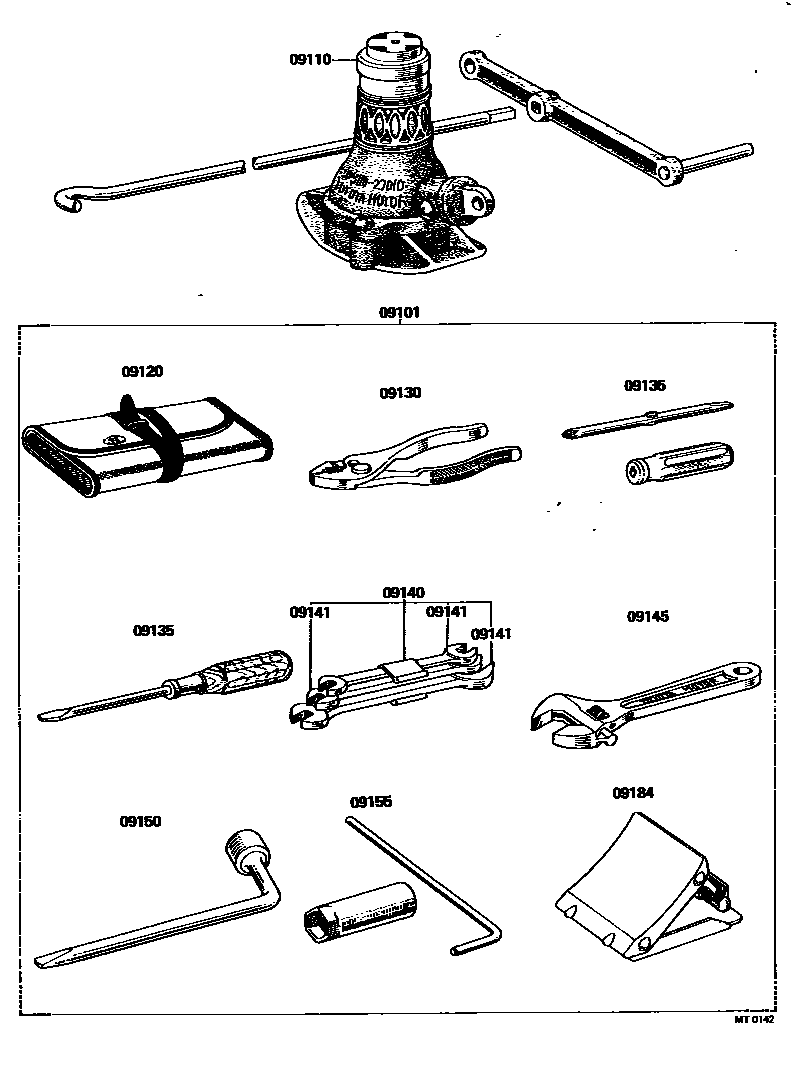

Toyota LITEACE — STANDARD TOOL

09101TOOL SET, STANDARD W/O JACK

main09101-27020iKM1#197105-197909

sub09101-28020

09110JACK ASSY

main09110-27010iKM1#197105-197909

sub09110-27011

09120BAG, TOOL

main09120-27010iKM1#197105-197909

sub09120-20030

09130PLIERS

main09130-00010iKM1#197105-197909

sub09130-00012

09135DRIVER, SCREW

main09135-00010iKM1#197105-197909

(+) (-)

sub99915-10700

main09135-00060iKM10197105-197308

(-) 150

sub09135-00120

09140SPANNER SET

main09140-12011iKM1#197105-197909

09141SPANNER

main09141-00032iKM1#197105-197909

10X12

sub99914-11012

main09141-12011iKM1#197105-197909

8X10

sub99914-10810

main09141-12020iKM1#197105-197909

14X17

sub99914-11417

09145WRENCH, MONKEY

main09145-00020iKM1#197105-197909

sub99911-10200

09150WRENCH, HUB NUT BOX

main09150-30011iKM1#197105-197909

sub09150-40010

09155WRENCH, SPARK PLUG

main09155-12010iKM1#197105-197909

sub09155-44010

09184STOPPER, WHEEL

main09184-00010iKM1#197105-197909

11 parts on this diagram · 1 diagram in section
