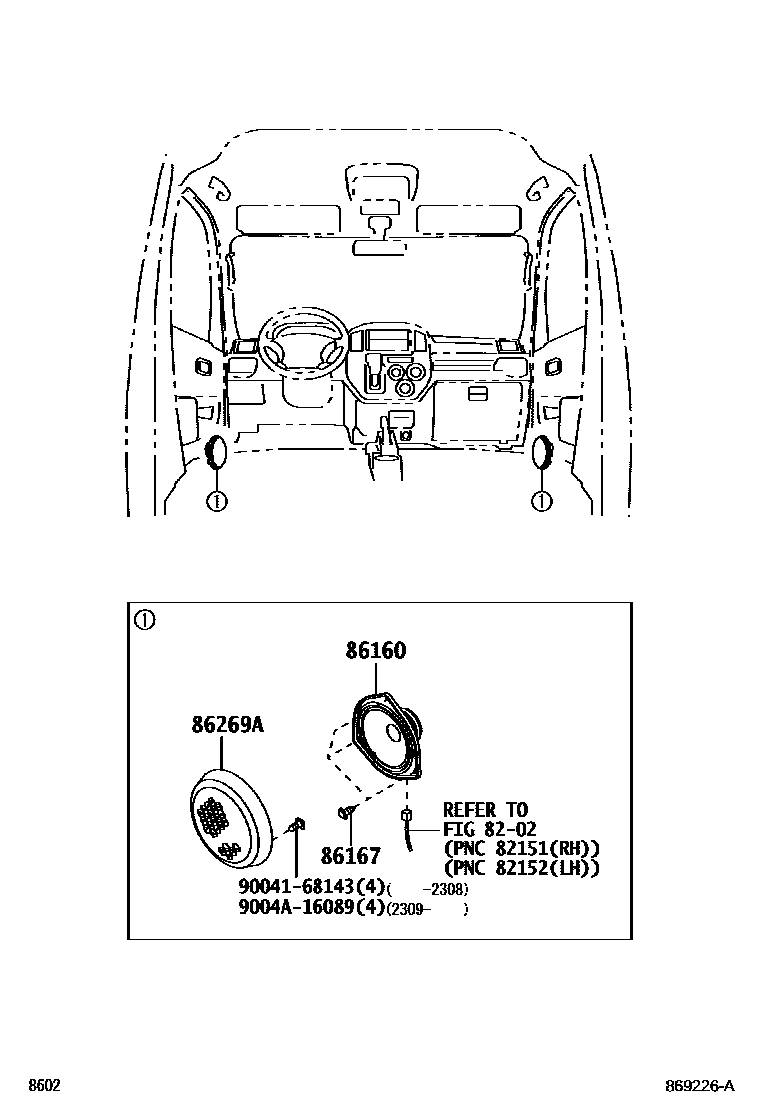

Toyota LITEACE — SPEAKER

8202WIRING & CLAMP

→ Go to FIG 82-02

86160SPEAKER ASSY, FRONT NO.1

main86160-BZ110i202205

86167SCREW, SPEAKER

main9004A-16036i202205

L=14

86269AGRILLE, SPEAKER

main86269-BZ010-B0i202205

DK.GRAY,TRIM1#

9004168143

main90041-68143

9004A16089

main9004A-16089

6 parts on this diagram · 1 diagram in section

SPEAKER for Toyota LITEACE

This section contains 6 genuine Toyota parts for the SPEAKER system of the Toyota LITEACE. Key components include: WIRING & CLAMP, SPEAKER ASSY, FRONT NO.1, SCREW, SPEAKER, GRILLE, SPEAKER.
