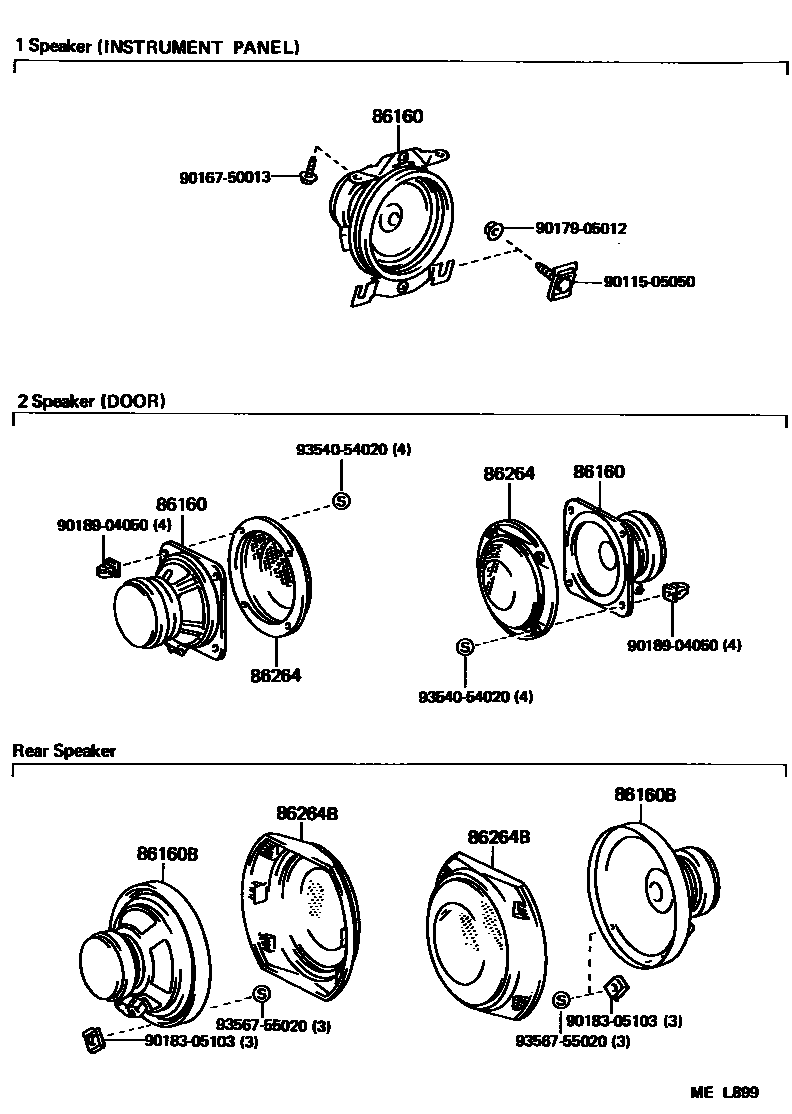

Toyota LITEACE — SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-95716iCM36..5H;CM36..RHD..GEN;KM3#,YM35..(4H,5F)..GEN198808-199001

main86160-95722×2iYM35;KM36..06S..ARL198808-199804

2-SPEAKERS

86160BSPEAKER ASSY, REAR

main86160-95727×2iYM30198808-199201

86264GRILLE, SPEAKER, FRONT

main86269-95716×2iCM36..5H;CM36,KM36..SRF;KM30,37,YM30,35;CM36,KM36..MRF..ARL198808-199804

86264BGRILLE, SPEAKER, REAR

main86269-95714×2iYM30198808-199201

9011505050

main90115-05050

9016750013

main90167-50013

9017905012

main90179-05012

9018305103

main90183-05103

9018904050

main90189-04050

9354054020

main93540-54020

9356755020

main93567-55020

11 parts on this diagram · 1 diagram in section
