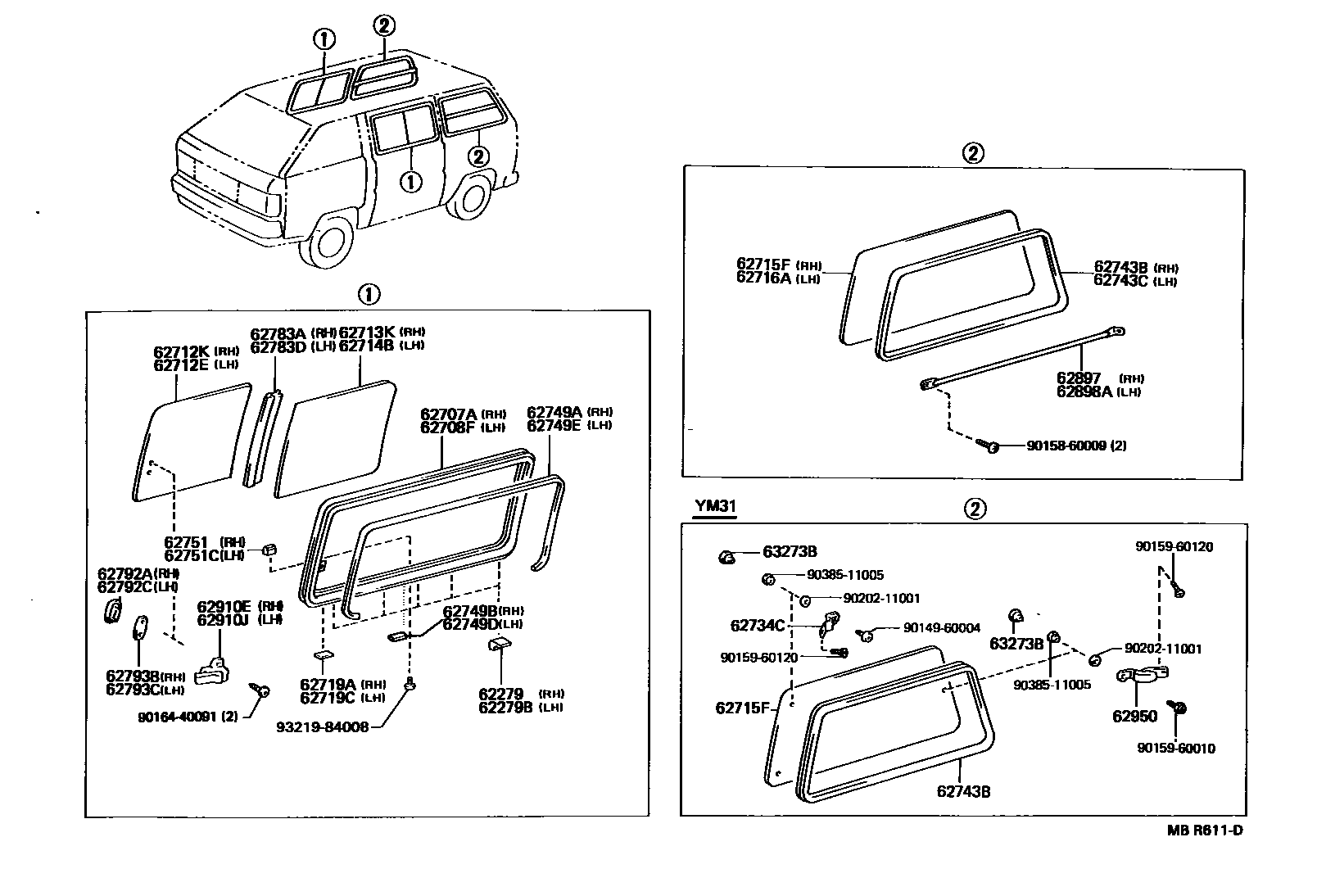

Toyota LITEACE — SIDE WINDOW

0001 1 0002 1

62279SPACER, SIDE WINDOW FRAME, UPPER

main62279-95701×4iCM36,KM3#,YM3#..VSG198808-199804

62279BSPACER, SIDE WINDOW FRAME, LH

main62279-95701×4iCM36,KM3#,YM3#..VSG198808-199804

62707AFRAME SUB-ASSY, SIDE FRONT WINDOW, RH

main62707-27010iCM36,KM36,YM35..RHD..VSG199102-199804

main62707-27020iYM30,31199102-199804

main62707-95701iCM36,KM36,YM35..RHD..VSG198808-199102

main62707-95702iYM30198808-199102

main67043-27010iCM36,KM36..LHD..VSG199102-199201

main67043-27020iKM30,37199102-199804

main67043-95700iCM36,KM36..LHD..VSG198808-199102

main67043-95702iKM30,37198808-199102

62708FFRAME SUB-ASSY, SIDE FRONT WINDOW, LH

main62708-27010iCM36,KM36..LHD..VSG199102-199201

main62708-27020iKM30,37199102-199804

main62708-95700iCM36,KM36..LHD..VSG198808-199102

main62708-95702iKM30,37198808-199102

main67044-27010iCM36,KM36,YM35..RHD..VSG199102-199804

main67044-27020iYM30,31199102-199804

main67044-95700iCM36,KM36,YM35..RHD..VSG198808-199102

main67044-95701iYM30198808-199102

62712EGLASS, SIDE FRONT WINDOW, LH

main62712-95711iCM36,KM36,37..LHD..VSG198808-199201

*TEM,T=4.0

main62712-95712iCM36,KM36,37..LHD..VSG198808-199201

*TT,T=4.0

main62733-95706iCM36,KM36,YM3#..RHD..VSG198808-199804

*TEM,T=4.0

main62733-95707iYM30,35..VSG;KM36..06S..ARL;CM36..RHD..SRF..05S;KM36..RHD..VSG..SRF..(4H,5F)198808-199804

*TT,T=4.0

62712KGLASS, SIDE WINDOW, FRONT RH

main62711-95703iCM36,KM36,YM3#..RHD..VSG198808-199804

*TEM,T=4.0

main62711-95704iYM30,35..VSG;KM36..06S..ARL;CM36..RHD..SRF..05S;KM36..RHD..VSG..SRF..(4H,5F)198808-199804

*TT,T=4.0

main62732-95715iCM36,KM36,37..LHD..VSG198808-199201

*TEM,T=4.0

main62732-95716iCM36,KM36,37..LHD..VSG198808-199201

*TT,T=4.0

62713KGLASS, SIDE WINDOW, REAR RH

main62713-95710iCM36,KM36,YM35..RHD..VSG198808-199804

*TEM,T=4.0

main62713-95711iYM35..GEN;KM36..06S..ARL;CM36..RHD..SRF..05S;KM36..RHD..VSG..SRF..(4H,5F)198808-199804

*TT,T=4.0

main62713-95712iYM30,31198808-199804

*TEM,T=4.0

main62713-95713iYM30198808-199201

*TT,T=4.0

main62735-95704iCM36,KM36..LHD..VSG198808-199201

*TEM,T=4.0

main62735-95705iCM36,KM36..LHD..VSG198808-199201

*TT,T=4.0

main62735-95706iKM37198808-199201

*TEM,T=4.0

main62735-95707iKM37198808-199201

*TT,T=4.0

62714BGLASS, SIDE WINDOW, REAR LH

main62714-95706iCM36,KM36..LHD..VSG198808-199201

*TEM,T=4.0

main62714-95707iCM36,KM36..LHD..VSG198808-199201

*TT,T=4.0

main62714-95708iKM37198808-199201

*TEM,T=4.0

main62714-95709iKM37198808-199201

*TT,T=4.0

main62736-95701iCM36,KM36,YM35..RHD..VSG198808-199804

*TEM,T=4.0

main62736-95702iYM35..GEN;KM36..06S..ARL;CM36..RHD..SRF..05S;KM36..RHD..VSG..SRF..(4H,5F)198808-199804

*TT,T=4.0

main62736-95703iYM30,31198808-199804

*TEM,T=4.0

main62736-95704iYM30198808-199201

*TT,T=4.0

62715FGLASS, SIDE REAR WINDOW, RH

main62715-95700iCM36,KM36,37,YM30,35..VSG198808-199804

*TEM,T=3.5

main62715-95701iCM36..SRF..05S;KM37,YM30,35..VSG;CM36,KM36..MRF..(4H,5H);KM36..VSG..SRF..(4H,5F)198808-199804

*TT,T=3.5

main62715-95703iYM31199108-199804

*TEM,T=4.0

sub62715-95704

62716AGLASS, SIDE REAR WINDOW, LH

main62716-95700iCM36,KM36,YM3#..VSG198808-199804

*TEM,T=3.5

main62716-95701iYM30,35..VSG;CM36..SRF..05S;CM36,KM36..MRF..(4H,5H);KM36..VSG..SRF..(4H,5F)198808-199804

*TT,T=3.5

main62716-95705iKM37198808-199201

*TEM,T=4.0

main62716-95706iKM37198808-199201

*TT,T=4.0

62719APACKING, SIDE FRONT WINDOW, UPPER

main62719-95701×3iCM36,KM3#,YM3#..VSG198808-199804

62719CPACKING, SIDE FRONT WINDOW

main62719-95701×3iCM36,KM3#,YM3#..VSG198808-199804

62734CHINGE, SIDE REAR WINDOW

main62734-95705×2iYM31199108-199804

62743BWEATHERSTRIP, SIDE REAR WINDOW

main62743-95702iCM36,KM3#,YM30,35..VSG198808-199804

main62743-95704iYM31199108-199804

62743CWEATHERSTRIP, SIDE REAR WINDOW

main62743-95702iCM36,KM36,YM3#..VSG198808-199804

main62744-95702iKM30,37198808-199804

62749ASEAL, SIDE WINDOW, UPPER

main62749-95701iCM36,KM36,YM3#..RHD..VSG198808-199804

main62749-95702iCM36,KM3#..LHD..VSG198808-199804

62749BSEAL, SIDE WINDOW FRAME

main62749-95704iCM36,KM3#,YM3#..VSG198808-199804

62749DSEAL, SIDE WINDOW FLAME

main62749-95704iCM36,KM3#,YM3#..VSG198808-199804

62749ESEAL, SIDE WINDOW FRAME

main62749-95701iCM36,KM3#..LHD..VSG198808-199804

main62749-95702iCM36,KM36,YM3#..RHD..VSG198808-199804

62751STOP, SIDE WINDOW FIX GLASS

main62751-95661iCM36,KM36,YM35..VSG198808-199804

62751CSTOP, SIDE WINDOW FIX GLASS

main62751-95661iCM36,KM36,YM35..VSG198808-199804

62783ASASH, SIDE WINDOW, CENTER

main62783-95700iCM36,KM3#,YM3#..VSG198808-199804

62783DSASH, SIDE WINDOW, CENTER

main62783-95700iCM36,KM3#,YM3#..VSG198808-199804

62792APACKING, SIDE WINDOW LOCK, RH

main62792-95A00iKM37,YM30198808-198906

62792CPACKING, SIDE WINDOW LOCK, LH

main62792-95A00iKM37,YM30198808-198906

62793BRETAINER, SIDE WINDOW LOCK, RH

main62793-95704iKM37,YM30198808-198906

main62793-95J01iKM30,37,YM30,31198906-199804

62793CRETAINER, SIDE WINDOW LOCK, LH

main62793-95704iKM37,YM30198808-198906

main62793-95J01×2iKM30,37,YM30,31198906-199804

62897TUBE, SIDE WINDOW GUARD

main62897-95702iCM36,KM36,YM35..RHD..VSG198808-199804

main62897-95703iCM36,KM36..LHD..VSG198808-199201

62898ATUBE, SIDE WINDOW GUARD, LH

main62898-95702iCM36,KM36,YM35..RHD..VSG198808-199804

main62898-95703iCM36,KM36..LHD..VSG198808-199201

62910ELOCK ASSY, SIDE WINDOW

main62910-95702iKM30,37,YM30,31198808-199804

62910JLOCK ASSY, SIDE WINDOW, LH

main62910-95702iKM30,37,YM30,31198808-199804

62950LOCK ASSY, SIDE REAR WINDOW

main62950-95703-01iYM31199108-199804

BLACK,TRIM1#

63273BRETAINER, ROOF WINDOW HINGE

main63273-95701×3iYM31199108-199804

9014960004

main90149-60004

9015860009

main90158-60009

9015960010

main90159-60010

9015960120

main90159-60120

9016440091

main90164-40091

9020211001

main90202-11001

9038511005

main90385-11005

9321984008

main93219-84008

41 parts on this diagram · 2 diagrams in section
