Toyota LITEACE — SIDE MEMBER

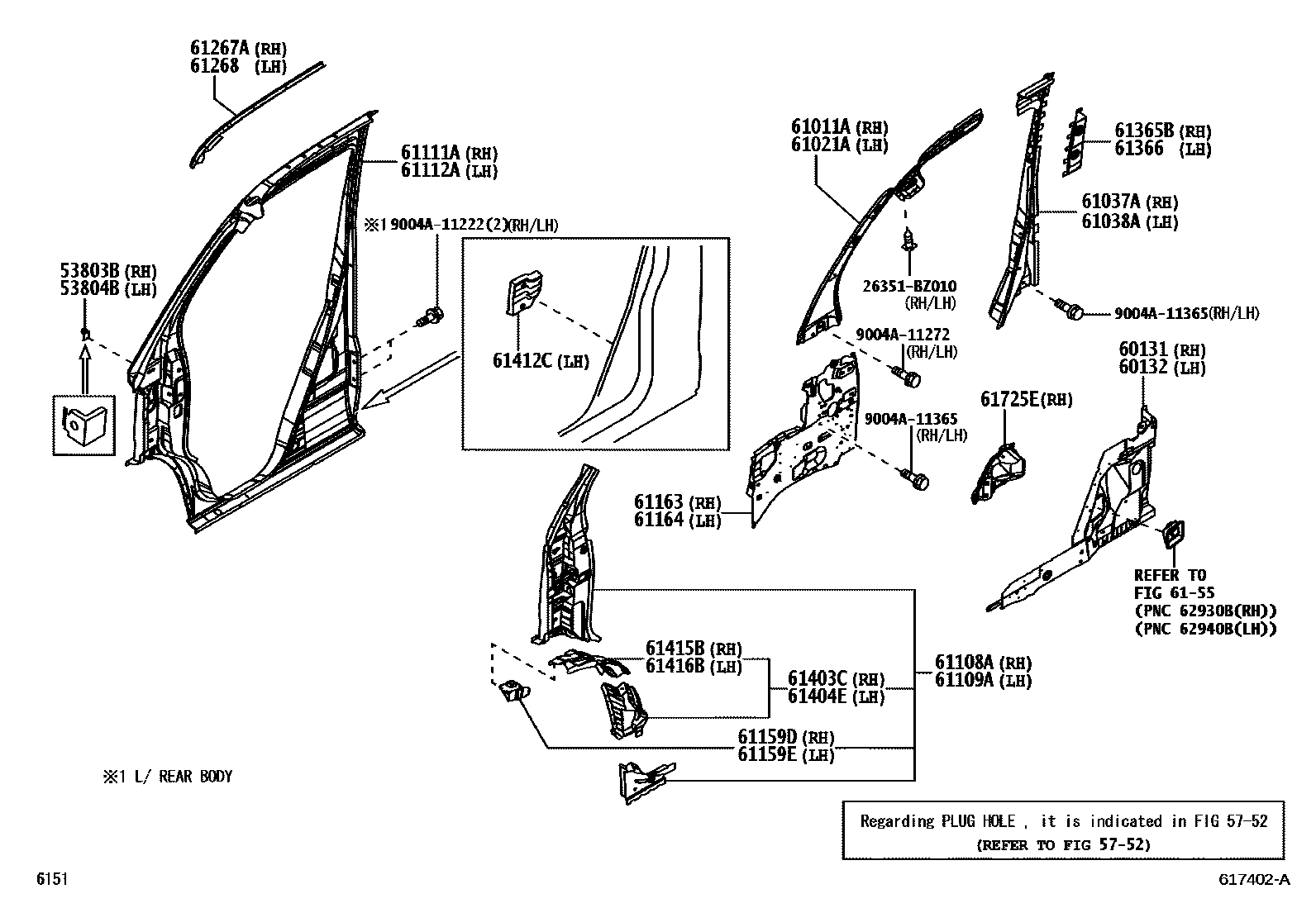

Parts diagram
53803BBRACKET SUB-ASSY, FRONT SIDE PANEL, RH
main55168-BZ080i202205
53804BBRACKET SUB-ASSY, FRONT SIDE PANEL, LH
main55168-BZ080i202205
5752HOLE PLUG
→ Go to FIG 57-52
60131PILLAR SUB-ASSY, CENTER BODY, NO.2 RH
main60131-BZ010i202205
main60131-BZ060i202205
60132PILLAR SUB-ASSY, CENTER BODY, NO.2 LH
main60132-BZ010i202205
main60132-BZ060i202205
61011APILLAR SUB-ASSY, NO.1 RH
main61007-BZ150i202205
61021APILLAR SUB-ASSY, NO.1 LH
main61008-BZ210i202205
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
main61037-BZ100i202205
main61037-BZ330i202205
61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH
main61038-BZ120i202205
main61038-BZ360i202205
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
main61108-BZ050i202205
61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH
main61109-BZ050i202205
61111APANEL, FRONT SIDE, OUTER RH
main61111-BZ341i202205
main61111-BZA40i202205
main61111-BZE00i202205
G + IMMOBI
main61111-BZE10i202205
61112APANEL, FRONT SIDE, OUTER LH
main61112-BZC60i202205
main61112-BZD00i202205
main61112-BZE50i202205
G + IMMOBI
main61112-BZE60i202205
61159DRETAINER, SIDE PANEL, NO.2 RH
main53728-BZ020i202205
61159ERETAINER, SIDE PANEL, NO.2 LH
main53729-BZ030i202205
61163PILLAR, FRONT BODY, INNER RH
main61163-BZ111i202205
main61163-BZ121i202205
61164PILLAR, FRONT BODY, INNER LH
main61164-BZ111i202205
main61164-BZ121i202205
61267ACHANNEL, ROOF DRIP SIDE, REAR RH
main61267-B5041i202205
main61267-B5061i202205
61268CHANNEL, ROOF DRIP SIDE, REAR LH
main61268-B5041i202205
main61268-B5061i202205
61365BREINFORCE, BELT ANCHOR TO CENTER PILLAR, NO.3 RH
main61365-BZ100i202205
61366REINFORCE, BELT ANCHOR TO CENTER PILLER, NO.3 LH
main61366-BZ060i202205
61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH
main61403-BZ030i202205
61404EREINFORCE SUB-ASSY, ROCKER, OUTER LH
main61404-BZ050i202205
61412PANEL, ROCKER, OUTER LH
main61412-BZ060i202205
61412CEXTENSION, ROCKER, OUTER LH
main61486-BZ010i202205
61415BEXTENSION, ROCKER, OUTER RH
main61415-BZ010i202205
61416BEXTENSION, ROCKER, OUTER LH
main61416-BZ010i202205
6155REAR VENTILATOR & ROOF VENTILATOR
→ Go to FIG 61-55
61725EBOX, FUEL INLET
main61725-BZ063i202205
26351BZ010SCREW
main26351-BZ010
9004A11222
main9004A-11222
9004A11272
main9004A-11272
9004A11365
main9004A-11365

33 parts on this diagram · 3 diagrams in section

SIDE MEMBER for Toyota LITEACE

This section contains 98 genuine Toyota parts for the SIDE MEMBER system of the Toyota LITEACE. Key components include: BRACKET SUB-ASSY, FRONT SIDE PANEL, RH, BRACKET SUB-ASSY, FRONT SIDE PANEL, LH, HOLE PLUG, REAR FLOOR PANEL & REAR FLOOR MEMBER, PILLAR SUB-ASSY, CENTER BODY, NO.2 RH.
