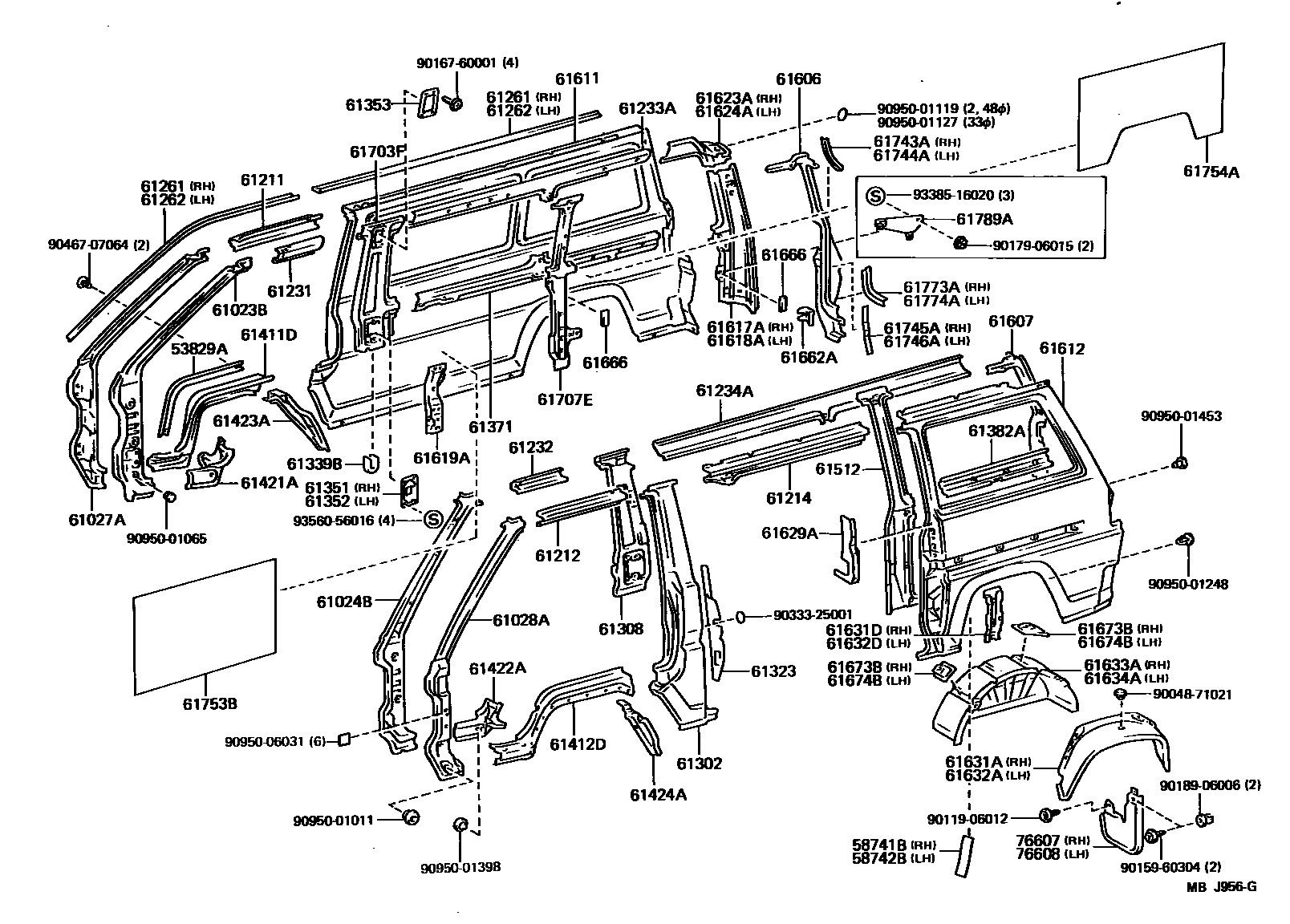

Toyota LITEACE — SIDE MEMBER
53829APROTECTOR, FRONT FENDER, LOWER
RH
LH
58741BPROTECTOR, QUARTER PANEL, RH
58742BPROTECTOR, QUARTER PANEL, LH
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
W/PILLAR GARNISH
W/PILLAR GARNISH
61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH
W/PILLAR GARNISH
W/PILLAR GARNISH
61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH
W/RADIO
61028APILLAR SUB-ASSY, FRONT BODY, OUTER LH
W/RADIO
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61214RAIL, ROOF SIDE, OUTER REAR LH
61231RAIL, ROOF SIDE, INNER RH
61232RAIL, ROOF SIDE, INNER LH
61233ARAIL, ROOF SIDE, INNER NO.2 RH
W/RR ASSIST GRIP
61234ARAIL, ROOF SIDE, INNER NO.2 LH
W/RR ASSIST GRIP
61261CHANNEL, ROOF DRIP, RH
FR
FR
RR
RR
61262CHANNEL, ROOF DRIP, LH
FR
FR
RR
RR
61302PILLAR SUB-ASSY, CENTER BODY, LH
main61302-95709iCM35,KM36,YM35..VSP..ARL; KM36..RHD..06S..GEN;KM36..(03S,05S)..GEN;CM3#,YM30,31..RHD..GEN198509-198807
W/MUD GUARD
W/SIDE MUD GUARD
main61302-95714iCM3#..RHD..GEN;KM36..RHD..06S..GEN;KM36..(03S,05S)..GEN; CM35,KM36,YM35..VSP..ARL198807-198808
W/MUD GUARD
CKD SPEC
CKD SPEC,W/MUD GUARD
61308PILLAR SUB-ASSY, CENTER BODY, INNER LH
W/FR COOLER
W/FR COOLER
main61308-95707iCM3#,KM36,YM31..RHD..(02S,05S)..GEN; CM35,KM36,YM35,41..ARL; KM36..LHD..03S198509-198808
61323REINFORCEMENT, FRONT DOOR LOCK STRIKER
CKD SPEC
61339BSEAL, CENTER BODY PILLAR, INNER NO.1
61351COVER, CENTER BODY, INNER RH
FR SEAT BELT=*ELR
61352COVER, CENTER BODY, INNER, LH
FR SEAT BELT=*ELR
61353COVER, CENTER PILLAR UPPER
61371RAIL, NO.1 CENTER INNER, RH
61382ARAIL, NO.2 CENTER, INNER LH
61411DPANEL, FENDER, OUTER RH
61412DPANEL, FENDER, OUTER LH
61421APANEL, FENDER, INNER RH
61422APANEL, FENDER, INNER LH
61423APANEL, FENDER, INNER LOWER RH
61424APANEL, FENDER, INNER LOWER LH
61512PILLAR, QUARTER LOCK, LH
61606FRAME SUB-ASSY, BACK DOOR OPENING SIDE, RH
CKD SPEC
61607FRAME SUB-ASSY, BACK DOOR OPENING SIDE, LH
CKD SPEC; W/MUD GUARD
61611PANEL, QUARTER, RH
W/FR,RR MUD GUARD
W/FR,RR MUD GUARD
W/FR,RR MUD GUARD
W/FR,RR MUD GUARD
W/FR,RR MUD GUARD
W/FR,RR.SIDE MUD GUARD
W/FR,RR MUD GUARD
W/FR,RR MUD GUARD
W/FR,RR MUD GUARD
W/FR,RR.SIDE MUD GUARD
61612PANEL, QUARTER, LH
W/MUD GUARD
W/MUD GUARD
W/MUD GUARD
W/MUD GUARD
W/MUD GUARD
W/MUD GUARD
W/SIDE MUD GUARD
61617APANEL, QUARTER INNER, REAR RH
CKD SPEC
61618APANEL, QUARTER, INNER REAR LH
CKD SPEC
61619AREINFORCEMENT, QUARTER PANEL
61623AEXTENSION, QUARTER PANEL, OUTER RH
61624AEXTENSION, QUARTER PANEL, OUTER LH
61629AREINFORCEMENT, QUARTER PANEL, LH
CKD SPEC
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61631DREINFORCEMENT, QUARTER WHEEL HOUSE, RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61632DREINFORCEMENT, QUARTER WHEEL HOUSE, LH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
61662APLATE, QUARTER PANEL OUTER EXTENSION, LOWER REAR
61666SEAL, QUARTER PANEL
61673BREINFORCEMENT, QUARTER WHEEL HOUSE, INNER RH
FR
RR
61674BREINFORCEMENT, QUARTER WHEEL HOUSE, INNER LH
FR
RR
61703FPANEL SUB-ASSY, QUARTER, INNER FRONT RH
W/FR COOLER
W/FR COOLER
W/FR COOLER
W/FR COOLER
61707EEXTENSION, QUARTER INNER PANEL, RH
61743AREINFORCEMENT, BACK DOOR OPENING SIDE, RH
CKD SPEC
61744AREINFORCEMENT, BACK DOOR OPENING SIDE, LH
CKD SPEC
61745AREINFORCEMENT, BACK DOOR OPENING, LOWER RH
CKD SPEC
61746AREINFORCEMENT, BACK DOOR OPENING, LOWER LH
CKD SPEC
61753BFILM, QUARTER INNER PANEL, NO.1
61754AFILM, QUARTER INNER PANEL, NO.2
61773APATCH, BACK DOOR OPENING, LOWER RH
CKD SPEC
61774APATCH, BACK DOOR OPENING, LOWER LH
CKD SPEC
61789AWEIGHT, QUARTER PANEL
76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
9004871021
main90048-71021
9011906012
main90119-06012
9015960304
main90159-60304
9016760001
main90167-60001
9017906015
main90179-06015
9018906006
main90189-06006
9033325001
main90333-25001
9046707064
main90467-07064
9095001011
main90950-01011
9095001065
main90950-01065
9095001119
main90950-01119
9095001127
main90950-01127
9095001248
main90950-01248
9095001398
main90950-01398
9095001453
main90950-01453
9095006031
main90950-06031
9338516020
main93385-16020
9356056016
main93560-56016
83 parts on this diagram · 4 diagrams in section
SIDE MEMBER for Toyota LITEACE
This section contains 116 genuine Toyota parts for the SIDE MEMBER system of the Toyota LITEACE. Key components include: PROTECTOR, FRONT FENDER, LOWER, PROTECTOR, QUARTER PANEL, RH, PROTECTOR, QUARTER PANEL, LH, PILLAR SUB-ASSY, FRONT BODY, INNER RH, PILLAR SUB-ASSY, FRONT BODY, INNER LH.
