Toyota LITEACE — SEPARATOR & SEPARATOR CURTAIN

74860AHOOK, MALE (FOR SEPARATE CURTAIN SET HOOK)

main90530-06001×9i198808-199008

74862APLATE, SEPARATOR CURTAIN SET

main74862-95661×6i198808-199804

74870ACURTAIN ASSY, SEPARATOR

main74870-95718i198808-199201

main74870-95719i198808-199804

main74870-95720i198808-199201

main74870-95721i198808-199201

main74870-95727i198808-199201

main74870-95730-03i198905-199804

GRAY,TRIM1#

main74870-95733i199008-199201

main74870-95733-03i199008-199201

GRAY,TRIM1#

9016440022

main90164-40022

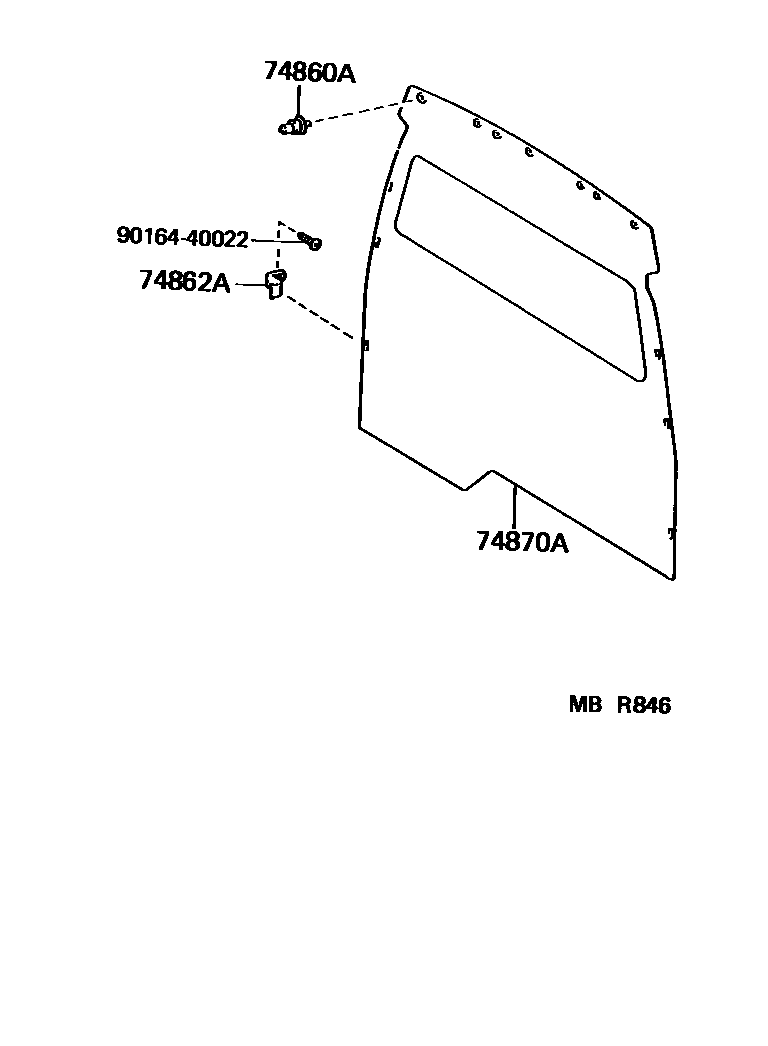

4 parts on this diagram · 1 diagram in section

SEPARATOR & SEPARATOR CURTAIN for Toyota LITEACE

This section contains 4 genuine Toyota parts for the SEPARATOR & SEPARATOR CURTAIN system of the Toyota LITEACE. Key components include: HOOK, MALE (FOR SEPARATE CURTAIN SET HOOK), PLATE, SEPARATOR CURTAIN SET, CURTAIN ASSY, SEPARATOR.
