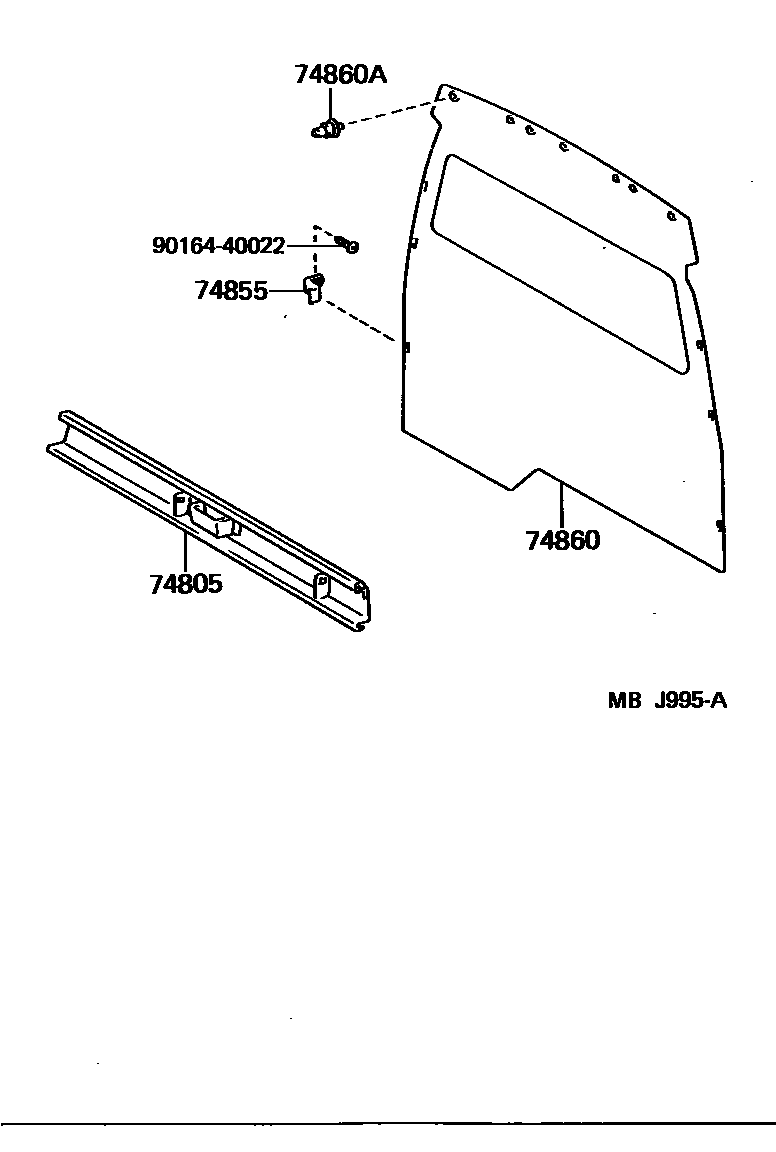

Toyota LITEACE — SEPARATOR & SEPARATOR CURTAIN

74805SEPARATOR SUB-ASSY

main74805-95710i198509-198808

main74805-95711i198509-198808

74855PLATE, SEPARATOR CURTAIN SET

main74862-95661×6i198509-198808

74860CURTAIN ASSY, SEPARATE

main74870-95706i198509-198705

main74870-95707i198509-198705

main74870-95718i198509-198808

main74870-95719i198509-198808

main74870-95720i198509-198808

main74870-95721i198702-198808

main74870-95722-08i198705-198808

IVORY,IVORY

main74870-95726-08i198705-198808

IVORY,IVORY

74860AHOOK, MALE (FOR SEPARATE CURTAIN SET HOOK)

main90530-06001×5i198509-198808

9016440022

main90164-40022

5 parts on this diagram · 1 diagram in section

SEPARATOR & SEPARATOR CURTAIN for Toyota LITEACE

This section contains 5 genuine Toyota parts for the SEPARATOR & SEPARATOR CURTAIN system of the Toyota LITEACE. Key components include: SEPARATOR SUB-ASSY, PLATE, SEPARATOR CURTAIN SET, CURTAIN ASSY, SEPARATE, HOOK, MALE (FOR SEPARATE CURTAIN SET HOOK).
