Toyota LITEACE — SEPARATOR & SEPARATOR CURTAIN

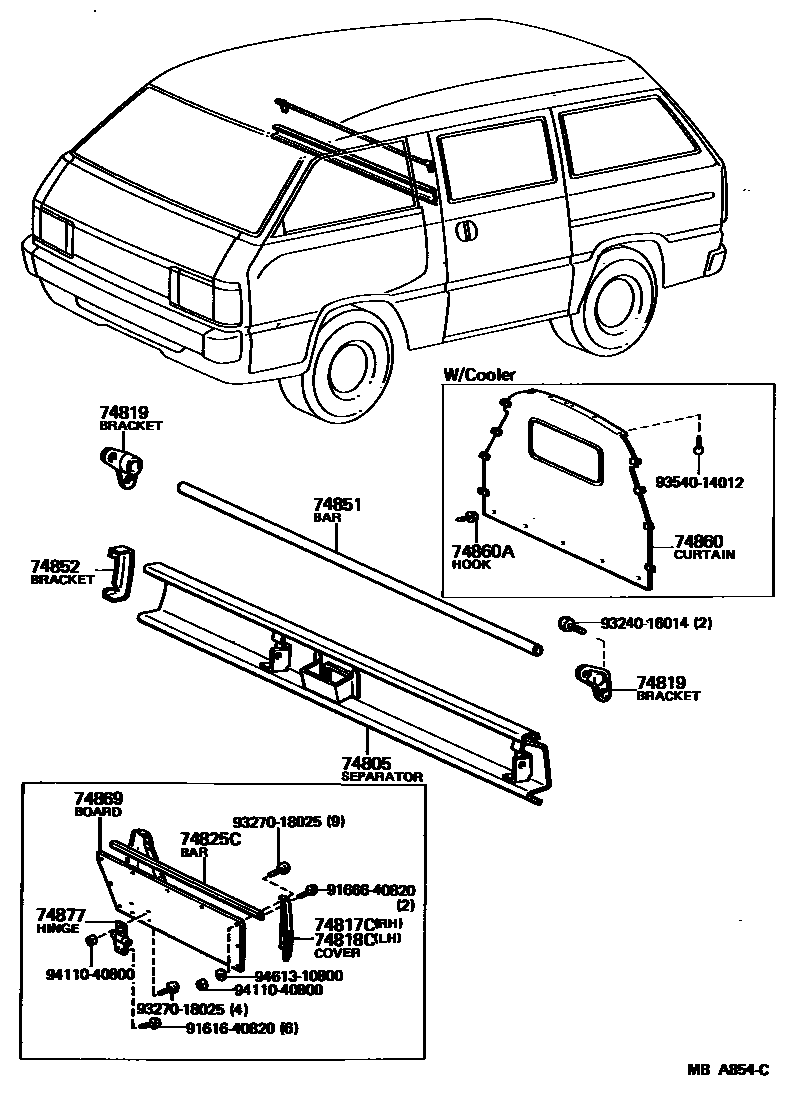

Parts diagram
74805SEPARATOR SUB-ASSY
main74805-95703i197910-198210
main74805-95704i197910-198207
main74805-95705i198207-198210
main74805-95706i198210-198508
main74805-95707i198210-198508
74817CCOVER, SEPARATOR BOARD, RH
main74817-95700i198206-198210
main74817-95701i198210-198508
NORWAY SPEC
74818CCOVER, SEPARATOR BOARD, LH
main74818-95700i198206-198210
main74818-95702i198210-198508
NORWAY SPEC
74819BRACKET, SEPARATOR FRAME
main74854-95701-06i197910-198210
LH,BROWN,BROWN
main74854-95703i198210-198508
LH
main74855-95701-06i197910-198210
RH,BROWN,BROWN
main74855-95702i198210-198508
RH
main74855-95703i198210-198508
RH
74825CBAR, SEPARATOR BOARD
main74825-95701i198206-198210
main74825-95702i198210-198508
NORWAY SPEC
74851BAR, SEPARATOR
main74807-95700-06i198006-198210
BROWN,BROWN
main74807-95701i198210-198508
main74807-95702i198210-198508
main74851-95702i197910-198006
74852BRACKET, SEPARATOR, RH
main74852-95701i198210-198508
74860CURTAIN ASSY, SEPARATE
main88750-95701i198101-198210
74860AHOOK, MALE (FOR SEPARATE CURTAIN SET HOOK)
main90530-04001×13i198101-198210
74869BOARD, SEPARATOR
main74829-95700i198206-198210
main74829-95701i198210-198508
NORWAY SPEC
main74829-95702i198210-198508
NORWAY SPEC
74877HINGE, SEPARATOR BOARD MALE
main74808-95700×2i198206-198210
main74808-95701×2i198210-198508
NORWAY SPEC
9161640820
main91616-40820
9166640820
main91666-40820
9324016014
main93240-16014
9327018025
main93270-18025
9354014012
main93540-14012
9411040800
main94110-40800
9461310800
main94613-10800

18 parts on this diagram · 1 diagram in section

SEPARATOR & SEPARATOR CURTAIN for Toyota LITEACE

This section contains 18 genuine Toyota parts for the SEPARATOR & SEPARATOR CURTAIN system of the Toyota LITEACE. Key components include: SEPARATOR SUB-ASSY, COVER, SEPARATOR BOARD, RH, COVER, SEPARATOR BOARD, LH, BRACKET, SEPARATOR FRAME, BAR, SEPARATOR BOARD.
