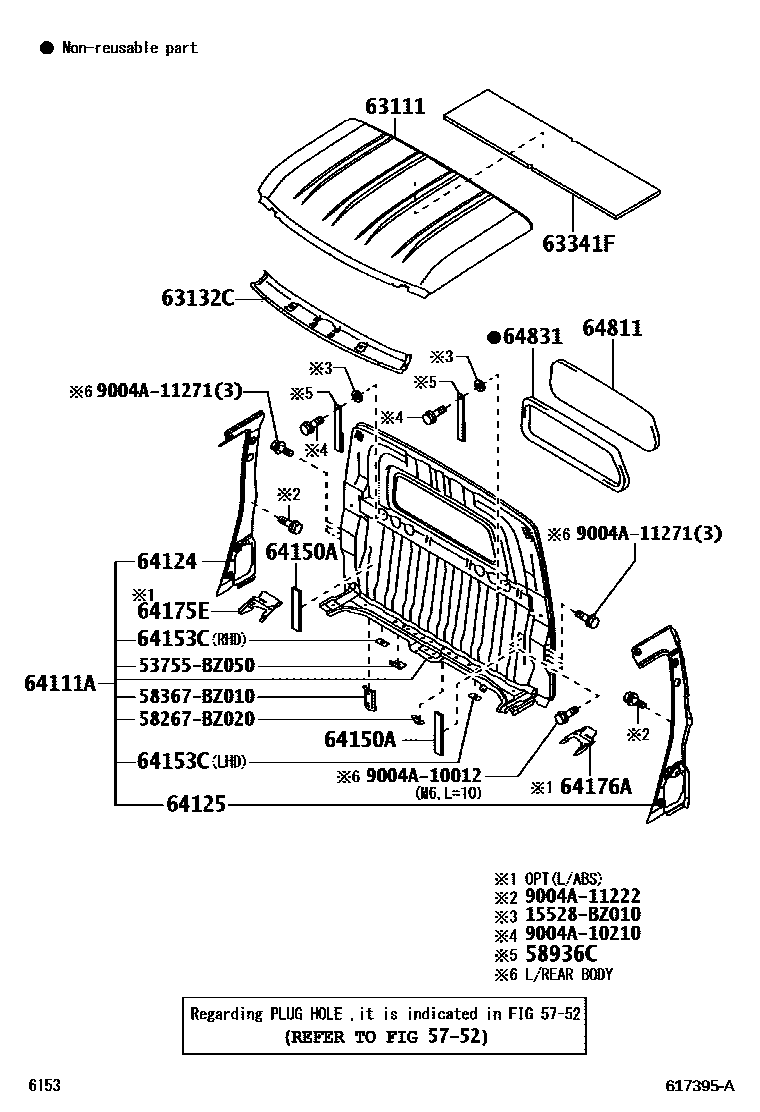

Toyota LITEACE — ROOF PANEL & BACK PANEL

0001 1 0002 1

5752

58936CBANED, ENGINE SERVICE HOLE COVER SUPPORT

main58936-BZ090iS403..RHD..T2202205

RH

main58936-BZ120iS403..RHD..T2202205

LH

main58936-BZ130iS403..LHD..T2202205

RH

main58936-BZ140iS403..LHD..T2202205

LH

63111PANEL, ROOF

main63111-BZ021iS403..RHD..SP202205

main63111-BZ111iS403..LHD..VAN202205

main63111-BZ120iS403..RHD..T2202205

main63111-BZ130iS403..LHD..T2202205

main63111-BZ340iS403..GCC202205

SAUDI ARABIA

63132CPANEL, WINDSHIELD HEADER, INNER

main63132-BZ070iS403..CRI,GEN,MMR,THAI202205

main63132-BZ220iS403..GCC202205

63341FPAD, ROOF SILENCER, NO.1

main63341-BZ020×2iS403..G202205

main63341-BZ120iS403..T2202205

64111APANEL, BACK

main64101-BZ170iS403..RHD..T2202205

main64101-BZ300iS403..LHD..T2202205

main64101-BZ350iS403..LHD..T2..GEN202205

PHILIPPINE&L/REAR BODY W/ REINFORCE

64124PANEL, BACK CORNER, INSIDE, RH

main64015-BZ070iS403..T2202205

main64015-BZ090iS403..LHD..T2..GEN202205

PHILIPPINE&L/REAR BODY W/ REINFORCE

64125PANEL, BACK CORNER, INSIDE, LH

main64016-BZ070iS403..T2202205

64150ACUSHION, RUBBER(FOR BACK FRAME)

main47131-BZ020×2iS403..T2202205

sub47131-B5080

64153CREINFORCEMENT, BACK FRAME

main64153-BZ010iS403..T2202205

64175EPATCH, REAR MOUNTING, RH

main57145-BZ110iS403..LHD..T2..GEN202205

G - ABS&W/O ABS(ANTI-LOCK BRK SYSTM)

64176APATCH, REAR MOUNTING, LH

main57146-BZ100iS403..LHD..T2..GEN202205

G - ABS&W/O ABS(ANTI-LOCK BRK SYSTM)

64811GLASS, BACK WINDOW

main64811-BZ030iS403..T2202205

64831WEATHERSTRIP, BACK WINDOW GLASS

main64831-BZ010iS403..T2202205

15528BZ010GASKET, VALVE(FOR CENTRIFUGAL OIL FILTER)

main15528-BZ010

53755BZ050RETAINER, FRONT FRAME SUPPORT

main53755-BZ050

58267BZ020BRACKET, CONSOLE BOX SUPPORT, CENTER

main58267-BZ020

58367BZ010BRACKET, FUEL TUBE CLAMP

main58367-BZ010

9004A10012

main9004A-10012

9004A10210

main9004A-10210

9004A11222

main9004A-11222

9004A11271

main9004A-11271

22 parts on this diagram · 2 diagrams in section
