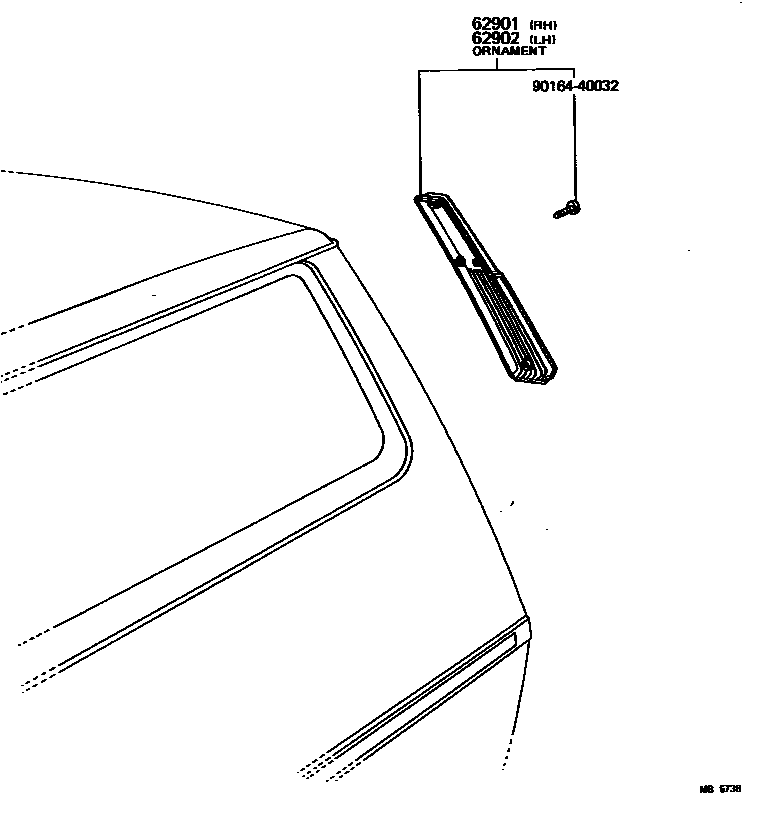

Toyota LITEACE — REAR VENTILATOR & ROOF VENTILATOR

62901ORNAMENT SUB-ASSY, REAR VENTILATOR, RH

main61510-95790-03i197610-197909

GRAY,GRAY

main61510-95790-07i197105-197610

GRAYISH GREEN,GREEN

main61510-95791-03i197105-197408

GRAY M.,GRAY

62902ORNAMENT SUB-ASSY, REAR VENTILATOR, LH

main61520-95790-03i197610-197909

GRAY,GRAY

main61520-95790-07i197105-197610

GRAYISH GREEN,GREEN

main61520-95791-03i197105-197408

GRAY M.,GRAY

9016440032

main90164-40032

3 parts on this diagram · 1 diagram in section

REAR VENTILATOR & ROOF VENTILATOR for Toyota LITEACE

This section contains 3 genuine Toyota parts for the REAR VENTILATOR & ROOF VENTILATOR system of the Toyota LITEACE. Key components include: ORNAMENT SUB-ASSY, REAR VENTILATOR, RH, ORNAMENT SUB-ASSY, REAR VENTILATOR, LH.
