Toyota LITEACE — REAR DOOR WINDOW REGULATOR & HINGE

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-87Z05-B0×2i202205

DK.GRAY,TRIM1#

69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE

main69267-BZ010×2i202205

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69830-BZ130i202205

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69840-BZ130i202205

69839PAD, REAR DOOR WINDOW REGULATOR

main69839-BZ010×6i202205

9004A11199

main9004A-11199

9004A11294

main9004A-11294

9017906070

main90179-06070

8 parts on this diagram · 1 diagram in section

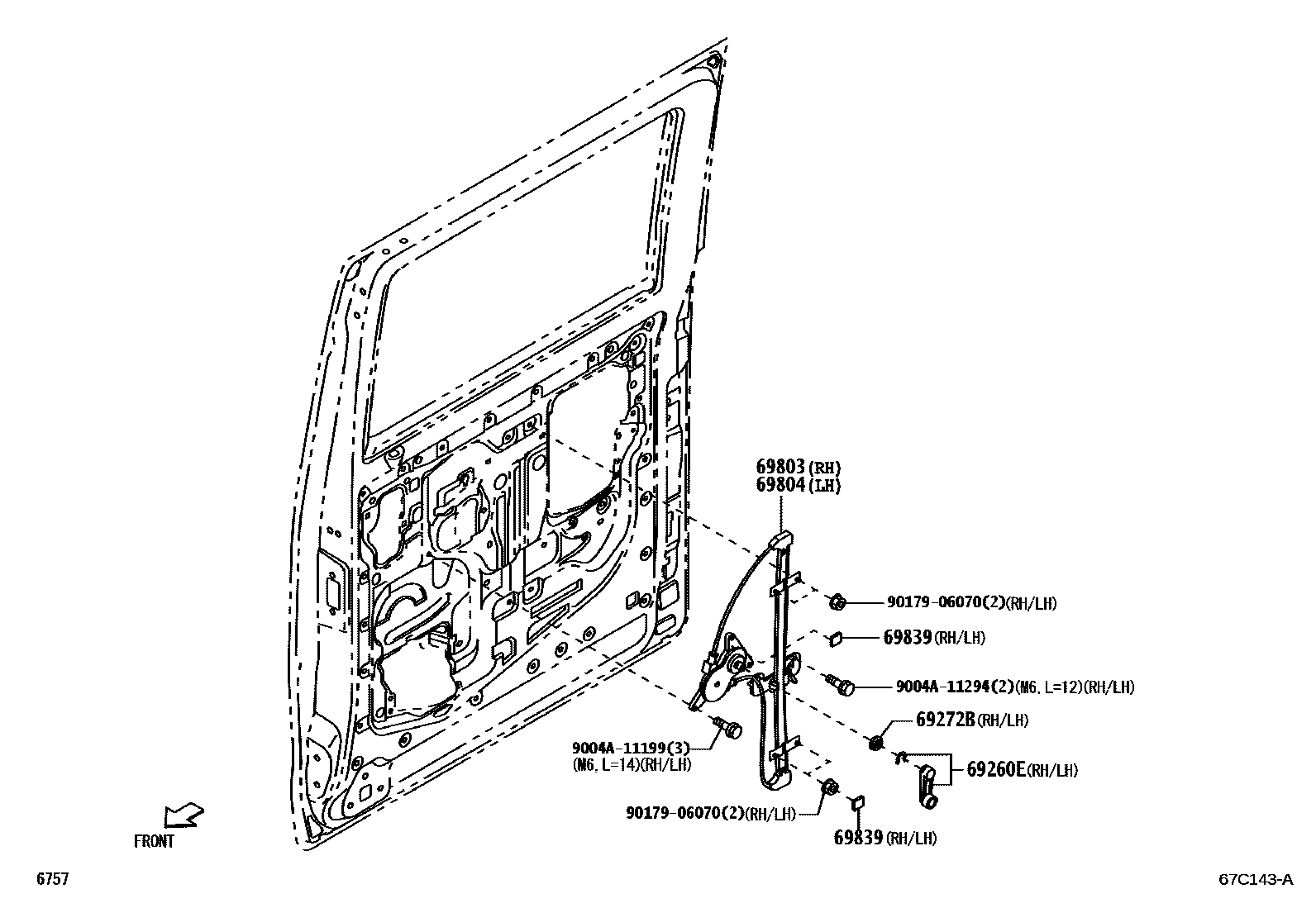

REAR DOOR WINDOW REGULATOR & HINGE for Toyota LITEACE

This section contains 8 genuine Toyota parts for the REAR DOOR WINDOW REGULATOR & HINGE system of the Toyota LITEACE. Key components include: HANDLE ASSY, REAR DOOR WINDOW REGULATOR, PLATE, REAR DOOR REGULATOR INSIDE HANDLE, REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH, REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH, PAD, REAR DOOR WINDOW REGULATOR.
