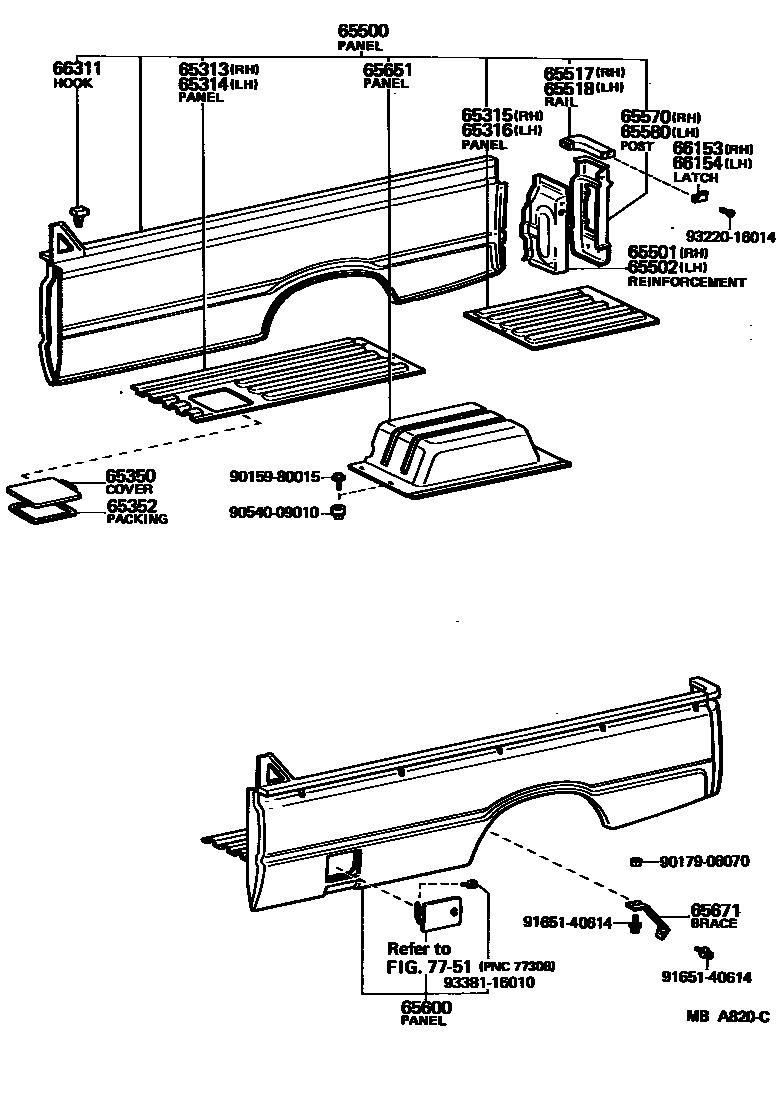

Toyota LITEACE — REAR BODY SIDE PANEL
65313PANEL, FLOOR FRONT CORNER, RH
65314PANEL, FLOOR FRONT CORNER, LH
65315PANEL, FLOOR REAR CORNER, RH
65316PANEL, FLOOR REAR CORNER, LH
65350COVER ASSY, BATTERY SERVICE HOLE
65352PACKING, BATTERY SERVICE HOLE COVER
65500PANEL ASSY, REAR BODY SIDE, RH
65501REINFORCEMENT SUB-ASSY, REAR END POST, INNER RH
65502REINFORCEMENT SUB-ASSY, REAR END POST, INNER LH
65517RAIL, SIDE PANEL TOP, REAR RH
65518RAIL, SIDE PANEL TOP, REAR LH
65570POST ASSY, SIDE PANEL REAR END, RH
65580POST ASSY, SIDE PANEL REAR END, LH
65600PANEL ASSY, REAR BODY SIDE, LH
65651PANEL, WHEEL HOUSE
65671BRACE, SIDE PANEL SKIRT, FRONT
RH
LH
66153LATCH, TAIL GATE FEMALE, RH
66154LATCH, TAIL GATE FEMALE, LH
66311HOOK, ROPE
7751FUEL TANK & TUBE
9015980015
main90159-80015
9017906070
main90179-06070
9054009010
main90540-09010
9165140614
main91651-40614
9322016014
main93220-16014
9338116010
main93381-16010
26 parts on this diagram · 2 diagrams in section
REAR BODY SIDE PANEL for Toyota LITEACE
This section contains 34 genuine Toyota parts for the REAR BODY SIDE PANEL system of the Toyota LITEACE. Key components include: PANEL, FLOOR FRONT CORNER, RH, PANEL, FLOOR FRONT CORNER, LH, PANEL, FLOOR REAR CORNER, RH, PANEL, FLOOR REAR CORNER, LH, COVER ASSY, BATTERY SERVICE HOLE.
