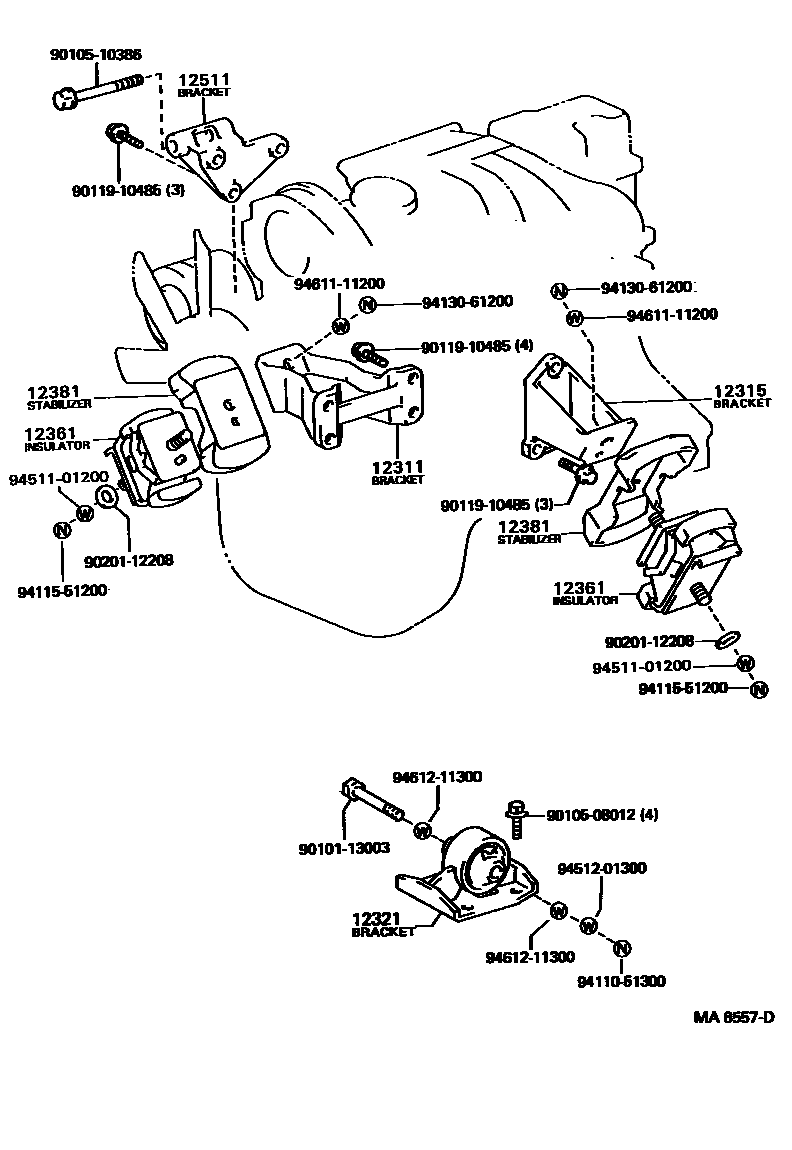

Toyota LITEACE — MOUNTING

0001 1 0002 1 0003 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12301-13150i5K#..KM3#198808-199410

main12301-13151i5K..KM3#199410-199804

sub12301-13160

main12311-64060i2C..CM36198808-199804

main12311-71010i2Y#..YM3#198808-199804

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12302-13091i5K#..KM3#198808-199410

main12302-13092i5K..KM3#199410-199804

main12315-64020i2C..CM36198808-199608

main12315-64120i2C..CM36199608-199804

main12315-71010i2Y#..YM3#198808-199804

12321BRACKET, ENGINE MOUNTING, REAR, NO.1

main12303-18020i2YC..YM30,35..4FC198808-199201

main12303-64040i2C..CM36198808-199804

main12303-72010i5K..KM3#..LHD198808-199804

main12321-13040i5K#..KM36..RHD198808-198908

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-64022×2i2C..CM36198808-199301

main12361-64023×2i2C..CM36199301-199804

main12361-71020×2i2Y#..YM3#198808-199804

12381STABILIZER, ENGINE MOUNTING

main12381-64010×2i2C..CM36198808-199305

main12381-64011×2i2C..CM36199305-199804

sub12381-64110

main12381-71030×2i2Y#..YM3#198808-199804

12511BRACKET, ALTERNATOR, NO.1

main12501-73011i2Y#..YM3#198808-199804

main12511-22016i5K..KM37;5K..KM36..SRF..(4H,5F)198808-199804

main12511-24011i5KC..KM36;5K..KM36..4F;5K..KM30,36..MRF198808-199604

main12511-64030i2C..CM36198808-199804

9010113003

main90101-13003

9010508012

main90105-08012

9010510386

main90105-10386

9011910485

main90119-10485

9020112208

main90201-12208

9411051300

main94110-51300

9411551200

main94115-51200

9413061200

main94130-61200

9451101200

main94511-01200

9451201300

main94512-01300

9461111200

main94611-11200

9461211300

main94612-11300

18 parts on this diagram · 3 diagrams in section
