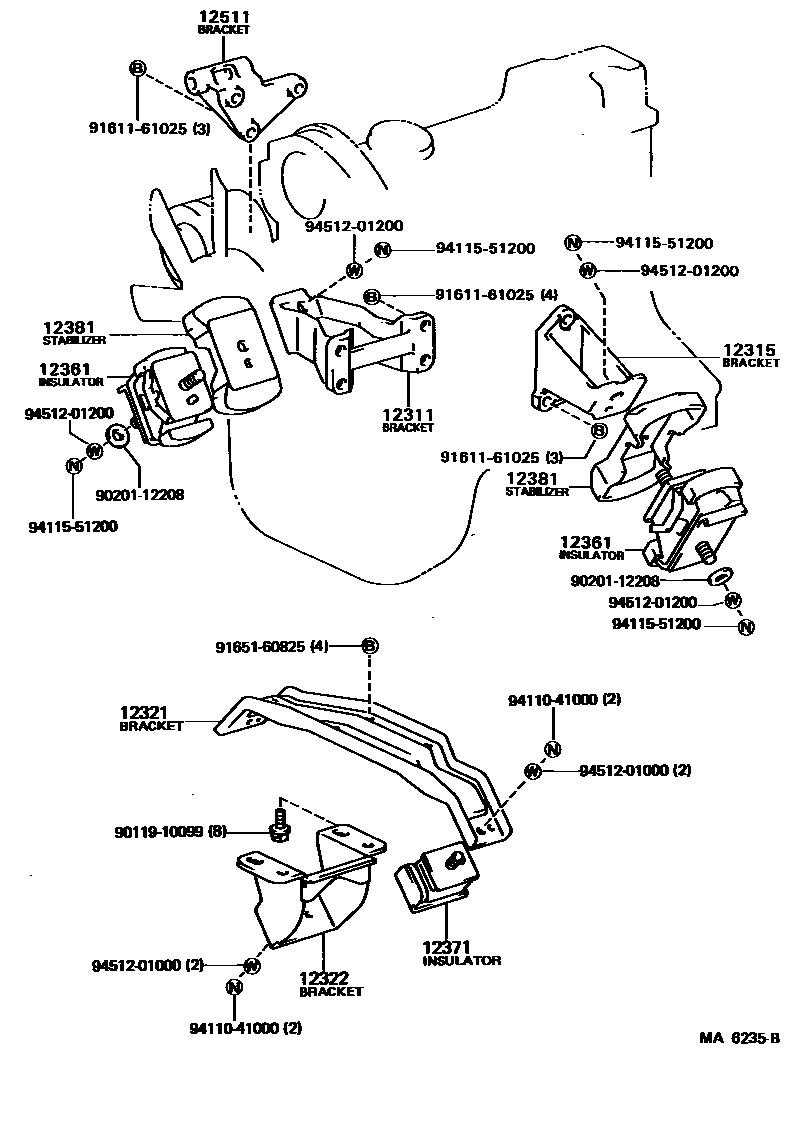

Toyota LITEACE — MOUNTING

0001 1 0002 1 0003 1 0004 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12301-13020i4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S)197910-198012

main12301-13060i4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S198012-198210

sub12301-13H00

main12301-13090i4K..KM20198210-198508

main12311-64020i1C..CM20198210-198508

main12311-71010i1Y,2YC..YM2#198311-198508

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12302-13042i4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S,09S)197910-198108

main12302-13043i4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,08S,09S198108-198210

sub12302-12013

main12302-13090i4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,08S,09S198210-198308

main12302-13091i4K..KM20..V4D..02S;4K..KM20..03S,05S,06S,08S,09S198308-198508

sub12302-13092

main12315-64020i1C..CM20198210-198508

sub12315-64120

main12315-71010i1Y,2YC..YM2#198311-198508

12321BRACKET, ENGINE MOUNTING, REAR, NO.1

main12303-18020i2YC..YM21..3FC198311-198508

main12321-13010i4K..KM20..RHD197910-198508

main12321-13020i4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S)197910-197912

main12321-13021i4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S,09S)197912-198101

main12321-13022i4K..KM20..LHD198101-198508

main12321-64020i1C..CM20198210-198508

main12321-71010i1Y,2YC..YM2#..5F198311-198508

12322BRACKET, ENGINE MOUNTING, REAR NO.2

main12321-18040i2YC..YM21..3FC198311-198508

main12322-13010×2i4K..KM20..RHD..V197910-198210

main12322-13020×2i4K..KM20..TR197910-198210

main12322-13040×2i4K..KM20..RHD198210-198508

main12322-18010×2i4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S)197910-198101

main12322-18020×2i4K..KM20..4F;4K..KM20..LHD..VSP..4H..EUR;4K..KM20..LHD..4H..(03S,05S,06S,07S)198101-198210

main12322-71010×2i1Y,2YC..YM2#..5F198311-198508

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-38120×2i1Y,2YC..YM2#198311-198508

MARUYASU

main12361-38130×2i1Y,2YC..YM2#198311-198508

TOYO GOMU

main12361-64060×2i1C..CM20198210-198508

main12361-71020×2i1Y,2YC..YM2#198508-198508

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-13050×2i4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S197910-198209

main12371-13051×2i4K..KM20198209-198508

12381STABILIZER, ENGINE MOUNTING

main12381-64010×2i1C..CM20198210-198508

sub12381-64011

main12381-71030×2i1Y,2YC..YM2#198508-198508

main12381-73010×2i1Y,2YC..YM2#198311-198508

12511BRACKET, ALTERNATOR, NO.1

main12511-22015i4K..KM20..RHD;4K..KM20..LHD..VSP..EUR;4K..KM20..LHD..(03S,05S,06S,07S)197910-198012

30A ALTERNATOR

sub91611-61025

main12511-22016i4K..KM20..ARL,GEN198210-198305

main12511-24011i4K..KM20..V4D..4F198210-198305

SWITZERLAND SPEC

main12511-64011i1C..CM20198210-198508

main12511-71010i1Y,2YC..YM2#198311-198508

9011910099

main90119-10099

9020112208

main90201-12208

9161161025

main91611-61025

9165160825

main91651-60825

9411041000

main94110-41000

9411551200

main94115-51200

9451201000

main94512-01000

9451201200

main94512-01200

16 parts on this diagram · 4 diagrams in section
