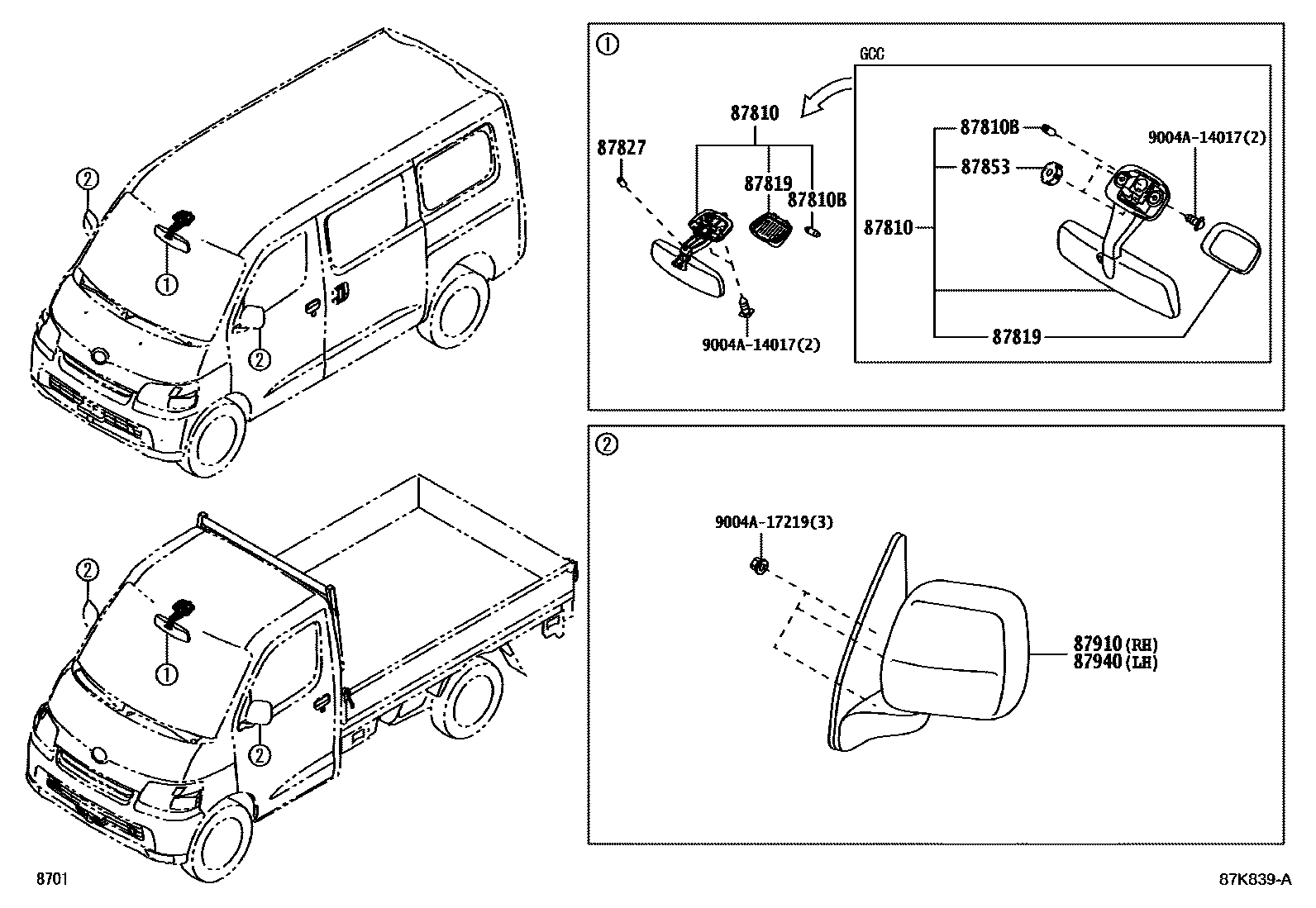

Toyota LITEACE — MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-B5040-E0iS403..GCC202205

-

main87810-BZ150iS403..CRI,GEN,MMR,THAI202205

87810BBULB, INNER REAR VIEW MIRROR LAMP

main90049-51157iS403..GCC202205

main9004B-81003iS403..CRI,GEN,MMR,THAI202205

87819LENS, INNER RR VIEW MIRROR ROOM LAMP

main87834-B5010iS403..GCC202205

CLEAR LENS

main87834-BZ020iS403..CRI,GEN,MMR,THAI202205

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-BZ030iS403..CRI,GEN,MMR,THAI202205

87853BASE, INNER REAR VIEW MIRROR

main87852-B5010×2iS403..GCC202205

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-BZ211iS403..CRI,GEN,MMR,THAI202205

NO PAINT REQ.

main87910-BZ300iS403..GCC202205

NO PAINT REQ.

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-BZ211iS403..CRI,GEN,MMR,THAI202205

NO PAINT REQ.

main87940-BZ260iS403..GCC202205

NO PAINT REQ.

9004A14017

main9004A-14017

9004A17219

main9004A-17219

9 parts on this diagram · 1 diagram in section
