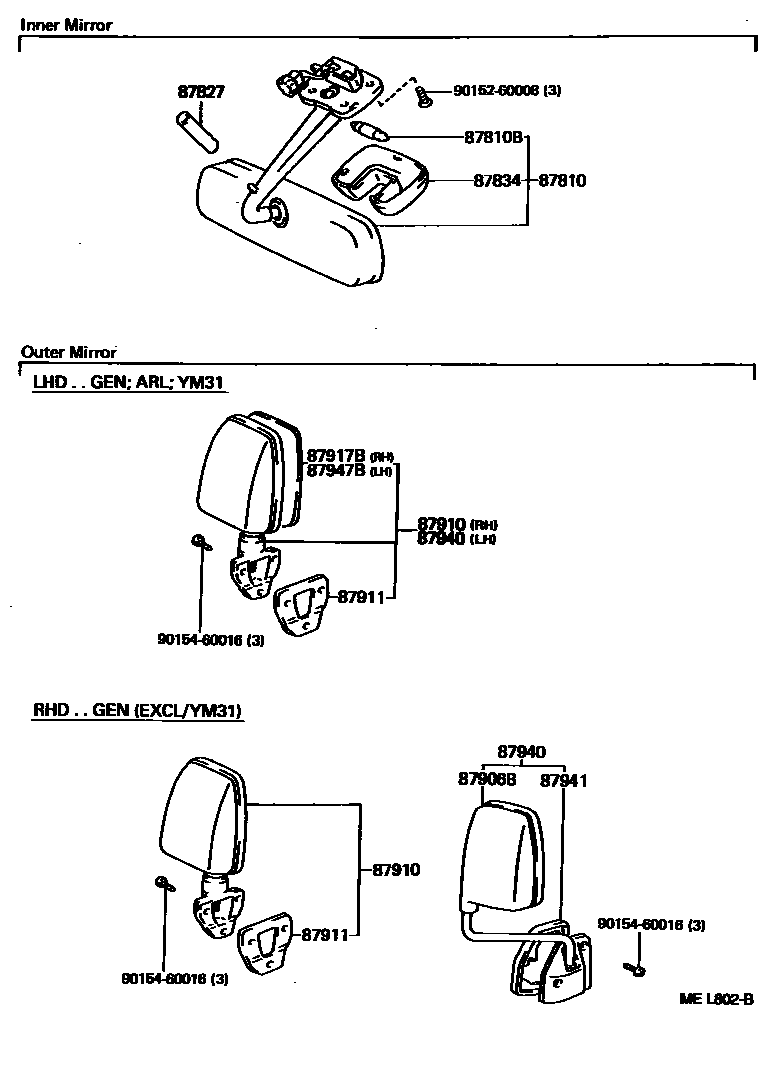

Toyota LITEACE — MIRROR

0001 1 0002 1

87810MIRROR ASSY, INNER REAR VIEW

main87810-95704iCM36..5H;CM36..ARL;KM37,YM35;CM36,KM36..SRF198808-199804

main87810-95705iKM36..03S..ARL;CM36,KM37,YM35..(4FC,4H,5F)..(02S,09S)198808-199201

DAY & NIGHT TYPE

87810BBULB, INNER REAR VIEW MIRROR LAMP

main90981-11027iCM36,KM3#,YM3#198808-199804

12V 10W

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-22020iCM36,KM3#,YM3#198808-199804

L=35

main87828-23010iCM36,KM3#,YM3#198808-199804

L=38.5

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main81243-95701iCM36,KM3#,YM3#198808-199804

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87094-95703iCM36,KM36,YM35..RHD..GEN198808-199108

sub87094-27020

sub90148-60054

main87094-95705iYM35..GEN;KM36..SRF..05S199108-199804

MALAYSIA CKD

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-95712iCM36,KM3#,YM35..GEN198808-199804

main87910-95714iCM36,KM36,YM30,35..ARL198808-199201

main87910-95715iYM31199108-199804

87911GASKET, OUTER REAR VIEW MIRROR, RH

main87911-95701iYM31199108-199804

main87959-95701iCM36,KM3#,YM30,35198808-199804

87917BMIRROR, OUTER REAR VIEW, RH

main87917-95715iYM31199108-199804

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-95716iCM36,KM36,YM35..RHD..GEN198808-199108

sub87940-27060

sub90148-60054

main87940-95718iCM36,KM36,YM30,35..ARL198808-199201

main87940-95719iCM36,KM3#..LHD198808-199804

main87940-95720iYM31199108-199804

87941GASKET, OUTER REAR VIEW MIRROR, LH

main87941-95701iCM36,KM36,YM35..RHD..GEN198808-199108

main87941-95702iYM31199108-199804

main87941-95704iYM35..GEN;KM36..SRF..05S199108-199804

MALAYSIA CKD

main87959-95701iKM30,37,YM30;CM36,KM36..LHD;CM36,KM36,YM35..ARL198808-199804

87947BMIRROR, OUTER REAR VIEW, LH

main87947-95720iYM31199108-199804

9015260008

main90152-60008

9015460016

main90154-60016

13 parts on this diagram · 2 diagrams in section
