Toyota LITEACE — MIRROR

0001 1 0002 1

87810MIRROR ASSY, INNER REAR VIEW

main87810-95704iCM35,KM36,YM30,31..GEN198509-198608

STD TYPE

main87810-95705iCM35,KM36,YM30,35,4#..ARL198509-198808

NON-GLARE TYPE

87810BBULB, INNER REAR VIEW MIRROR LAMP

main90981-11027iCM3#,KM3#,YM3#,4#198509-198808

12V 10W,12V 10W

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-22020iCM35,KM3#,YM3#,4#198509-198704

L=35

main87828-23010iCM3#,KM3#,YM3#,4#198509-198808

L=38.5

main87828-87002iCM3#,KM3#,YM30,35,4#198704-198808

L=32

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main81243-95701iCM3#,KM3#,YM3#,4#198509-198808

87901MIRROR SUB-ASSY, OUTER UNDER VIEW

main87907-95J02iYM30..GEN198509-198808

87950MIRROR ASSY, OUTER UNDER REAR VIEW

main87950-95702iYM30..GEN198509-198808

87951GASKET, OUTER UNDER REAR VIEW MIRROR

main87951-95701iYM30..GEN198509-198808

9015260008

main90152-60008

9015960275

main90159-60275

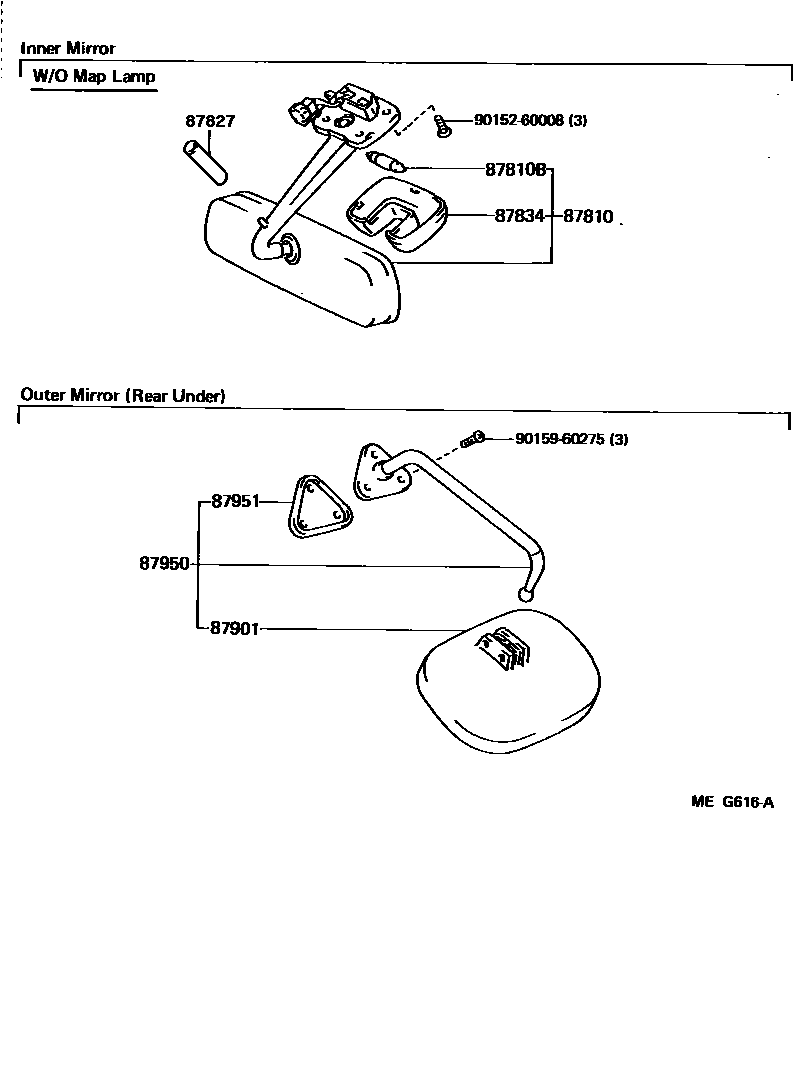

9 parts on this diagram · 2 diagrams in section
