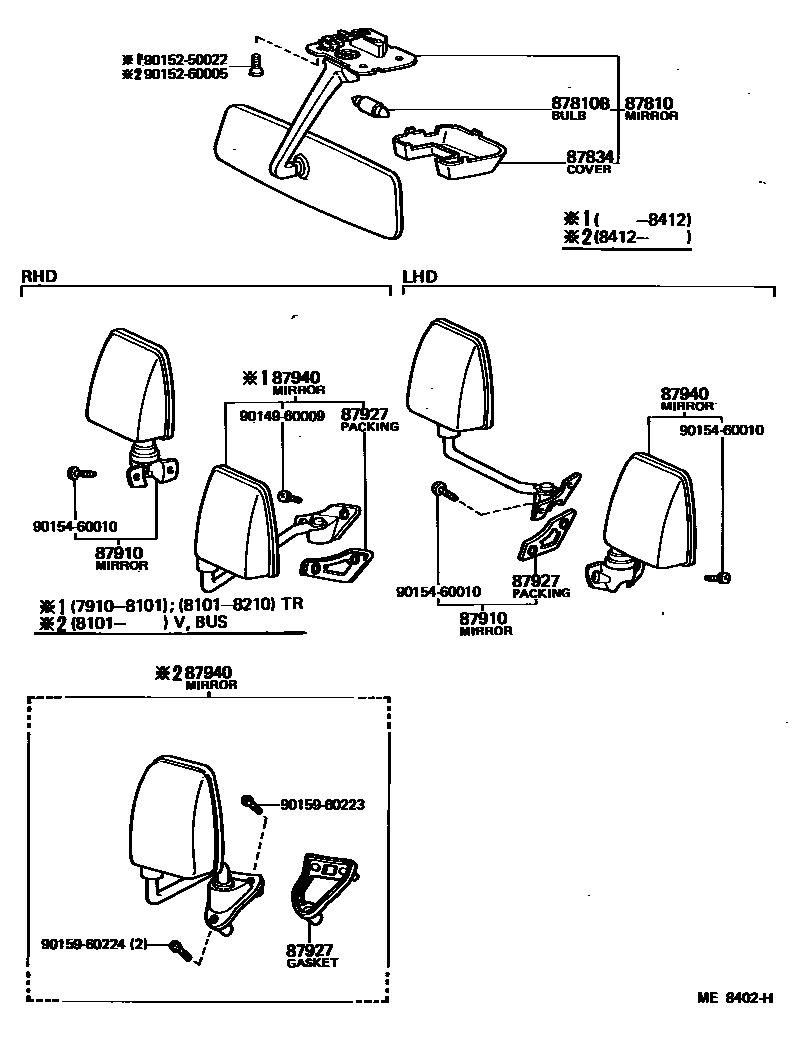

Toyota LITEACE — MIRROR

0001 1 0002 1

87810MIRROR ASSY, INNER REAR VIEW

main87810-95701iKM20..ARL,GEN197910-198210

main87810-95702iKM20..05S..ARL198204-198210

main87810-95703iKM20..4F;KM20..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)..EUR197910-198210

main87810-95704iCM20,KM20,YM20..GEN198311-198508

main87810-95705iKM20..LHD..09S198308-198508

NON GLARE TYPE,PHILIPPIN SPEC

main87810-95706iCM20,KM20..EUR198210-198508

sub87810-95709

87810BBULB, INNER REAR VIEW MIRROR LAMP

main90981-11027iCM20,KM20,YM2#197910-198508

12V 10W,12V 10W

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main81243-95701iCM20,KM20,YM2#197910-198508

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-29385iCM20,KM20,YM20..RHD..GEN197910-198508

main87910-29395iKM20..ARL197910-198210

main87910-29405iKM20..SRF..EUR;KM20..HRF..VSP..EUR;KM20..HRF..(05S,07S)197910-198008

main87910-29415iCM20,KM20..LHD..GEN197910-198508

main87910-29535iCM20,KM20..4F,5F;KM20..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)..EUR198008-198406

sub90152-60020

main87910-29715iCM20,KM20,YM21..ARL198210-198508

main87910-95710iCM20..EUR;KM20..HRF..EUR;KM20..SRF..08S;KM20..V4D..SRF..EUR198406-198508

87927PACKING, REAR VIEW OUTSIDE MIRROR STAY

main87925-95701iCM20,KM20..LHD..GEN197910-198508

main87925-95702iCM20,KM20..EUR197910-198508

DRIVE SIDE

main87925-95703iCM20,KM20..EUR197910-198508

ASSISTANT SIDE

main87926-95702iKM20..RHD..(ARL,GEN)197910-198101

main87956-95700iKM20..RHD..(HRF,SRF)..(ARL,GEN)198101-198103

main87956-95701iKM20..RHD..(HRF,SRF)..(ARL,GEN)198103-198210

main87956-95702iCM20,KM20,YM2#..RHD..(ARL,GEN)198210-198508

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87910-29405iKM20..SRF..EUR;KM20..HRF..VSP..EUR;KM20..HRF..(05S,07S)197910-198008

main87910-29535iCM20,KM20..4F,5F;KM20..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)..EUR198008-198405

sub90152-60020

main87910-95710iCM20..EUR;KM20..HRF..EUR;KM20..SRF..08S;KM20..V4D..SRF..EUR198405-198508

main87940-29405iKM20..RHD..GEN197910-198101

main87940-29415iKM20..ARL197910-198101

main87940-29425iCM20,KM20..LHD..GEN197910-198508

main87940-29645iKM20..RHD..(HRF,SRF)..GEN198101-198103

main87940-29646iKM20..RHD..(HRF,SRF)..GEN198103-198210

main87940-29655iKM20..02S..ARL198101-198103

main87940-29656iKM20..V4D..ARL198103-198210

main87940-29795iCM20,KM20,YM21..ARL198210-198508

main87940-29815iCM20,KM20,YM20..RHD..GEN198210-198508

9014960009

main90149-60009

9015250022

main90152-50022

9015260005

main90152-60005

9015460010

main90154-60010

9015960223

main90159-60223

9015960224

main90159-60224

12 parts on this diagram · 2 diagrams in section
