Toyota LITEACE — METER

0001 1 0002 1

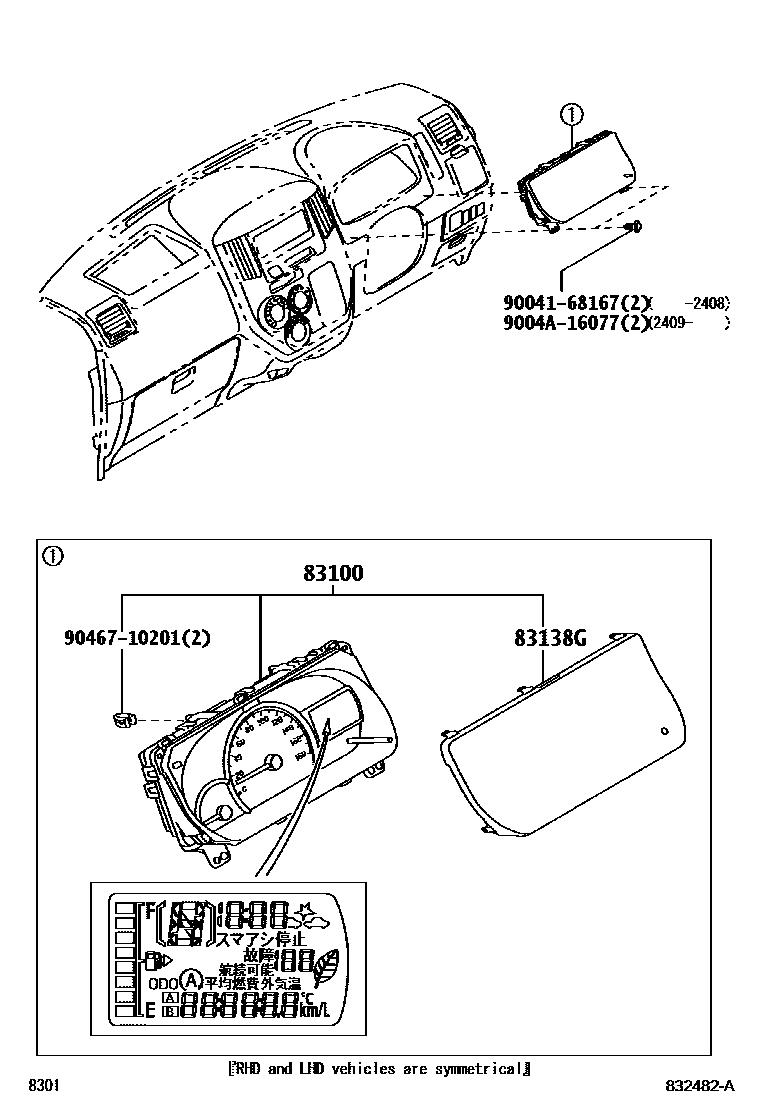

83100METER ASSY, COMBINATION

main83800-BYL31iS403..5F..(CRI,GEN,MMR,THAI)202205

DENSO,W/PART NUMBER LABEL

main83800-BYL41iS403..4FC..(GEN,MMR)202205

DENSO,W/PART NUMBER LABEL

main83800-BYV90iS403..5F..GCC202205-202406

DENSO,W/PART NUMBER LABEL

main83800-BYV91iS403..5F..GCC202406

DENSO,W/PART NUMBER LABEL

main83800-BYW00iS403..4FC..GCC202205-202406

DENSO,W/PART NUMBER LABEL

main83800-BYW01iS403..4FC..GCC202406

DENSO,W/PART NUMBER LABEL

main83800-BYJ80iS403..LHD..T2..GEN202205

PHILIPPINE&G - ABS&W/O ABS(ANTI-LOCK BRK SYSTM),W/PART NUMBER LABEL

83138GGLASS, COMBINATION METER

main83852-BZ210iS403202205

9004168167

main90041-68167

9004A16077

main9004A-16077

9046710201

main90467-10201

5 parts on this diagram · 2 diagrams in section
