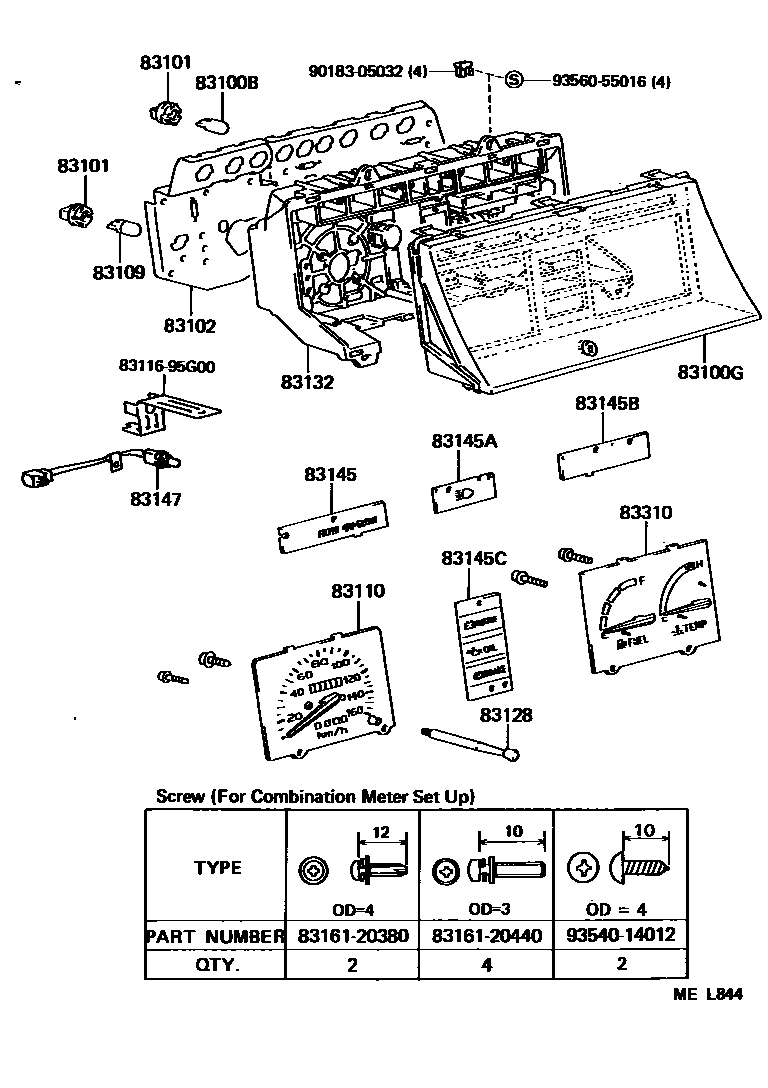

Toyota LITEACE — METER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

83100BBULB, COMBINATION METER, NO.1

main90981-11018×4iYM31199108-199804

12V 1.2W W/O SOCKET

main99132-12034×7iYM3#..5F..ARL198808-199105

12V 3.4W

83100GGLASS, COMBINATION METER

main83134-95706iCM36,KM36,YM35..RHD198808-199804

main83134-95708iYM30198808-199201

main83134-95G01iYM31199108-199804

main83138-95700iCM36,KM3#..LHD198808-199804

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14040×4iYM31199108-199804

12V 1.4W

main83101-20040×9iYM3#..5F..ARL198808-199105

12V 3.4W

main83101-20070×4iCM36,KM3#..LHD198808-199804

12V 3.4W,W/CAP

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83247-27040iYM31199108-199804

main83247-27080iYM30199105-199201

main83247-95719iYM35;KM36..ARL198808-199804

main83247-95720iCM36..ARL198808-199201

main83247-95721iYM30198808-199105

main83247-95725iKM3#..LHD198808-199804

main83247-95727iKM36..RHD..GEN198808-199804

main83247-95728iCM36..LHD198808-199201

main83247-95729iCM36..RHD..GEN198808-199804

83109BULB, COMBINATION METER, NO.2

main83109-24030×3iCM36,KM3#..LHD198808-199804

12V3.4W W(GREEN CAP)

83110SPEEDOMETER ASSY

main83110-27030iYM31199108-199804

main83110-95718iCM36..ARL198808-199201

main83110-95719iKM36,YM35..ARL198808-199201

main83110-95721iCM36,KM3#..LHD198808-199804

main83110-95723iCM36,KM36,37..LHD198808-199201

KM & MILE

main83110-95724iCM36,KM36,YM35..RHD..GEN198808-199804

main83110-95725iYM35..GEN;CM36..RHD..SRF;KM36..RHD..SRF..(4H,5F)..GEN198808-199804

KM & MILE

main83110-95733iYM30198808-199201

83128KNOB, TRIP COUNTER

main83128-95010iCM36,KM3#..LHD198808-199804

main83128-95J00iCM36,KM36,YM3#..RHD198808-199804

83132CASE, COMBINATION METER

main83132-95705iCM36,KM3#..LHD198808-199804

main83132-95G00iYM31199108-199804

main83132-95J02iCM36,KM36,YM35..RHD198808-199804

main83132-95J06iYM30198808-199201

83145LENS, METER, NO.1

main83145-27340iYM30..5F199105-199201

main83145-27360iKM36..ARL199105-199201

main83145-27400iYM30..4FC199105-199201

main83145-89320×2iYM31199108-199804

main83145-95013iCM36,KM3#..LHD198808-199804

main83145-95721iYM35;KM36..RHD..GEN198808-199105

main83145-95728iCM36..ARL198808-199105

main83145-95743iYM30198808-199105

main83145-95751iCM36..RHD..GEN198808-199804

main83145-95761iYM35..ARL199105-199201

main83145-95G03iKM36..ARL198808-199105

main83145-95G21iCM36..ARL199105-199201

83145ALENS, METER, NO.2

main83145-95722iCM36,KM36,YM35..RHD198808-199804

main83145-95726iYM30198808-199201

main83145-95A15iCM36,KM3#..LHD198808-199804

main83145-95J78iYM31199108-199804

83145BLENS, METER, NO.3

main83145-27080iYM31199108-199804

main83145-27300iCM36,KM36,YM35..MTM..ARL199105-199201

main83145-27320iYM35..4FC199105-199201

main83145-27380iYM30199105-199201

main83145-95723iCM36,KM36..RHD..GEN198808-199804

main83145-95740iCM36,KM36,YM35..MTM..ARL198808-199105

main83145-95742iYM35..4FC198808-199105

main83145-95744iYM30..5F198808-199105

main83145-95745iYM30..4FC198808-199105

main83145-95748iYM35..GEN198905-199804

main83145-95K11iCM36,KM3#..LHD198808-199804

83145CLENS, METER, NO.4

main83145-27420iCM36,KM36,YM35..ARL199105-199201

main83145-95741iCM36,KM36,YM35..ARL198808-199105

main83145-95749iCM36,KM36,YM35..RHD..GEN198808-199804

main83145-95755iCM36..LHD198808-199201

main83145-95K12iKM3#..LHD198808-199804

83147LAMP, METER NO.1

main83147-95G00iCM36,KM36,YM35..ARL199105-199201

83310GAGE ASSY, FUEL RECEIVER

main83243-95711iCM36,KM36,YM35..ARL198808-199201

main83243-95712iYM30198808-199201

main83243-95714iCM36,KM3#..LHD198808-199804

main83243-95715iCM36,KM36,YM35..RHD..GEN198808-199804

main83243-95G03iYM31199108-199804

8311695G00BRACKET, SPEEDOMETER

main83116-95G00

8316120380CASE, COMBINATION METER MIRROR, NO.1

main83161-20380

8316120440CASE, COMBINATION METER MIRROR, NO.1

main83161-20440

9018305032

main90183-05032

9354014012

main93540-14012

9356055016

main93560-55016

20 parts on this diagram · 6 diagrams in section
