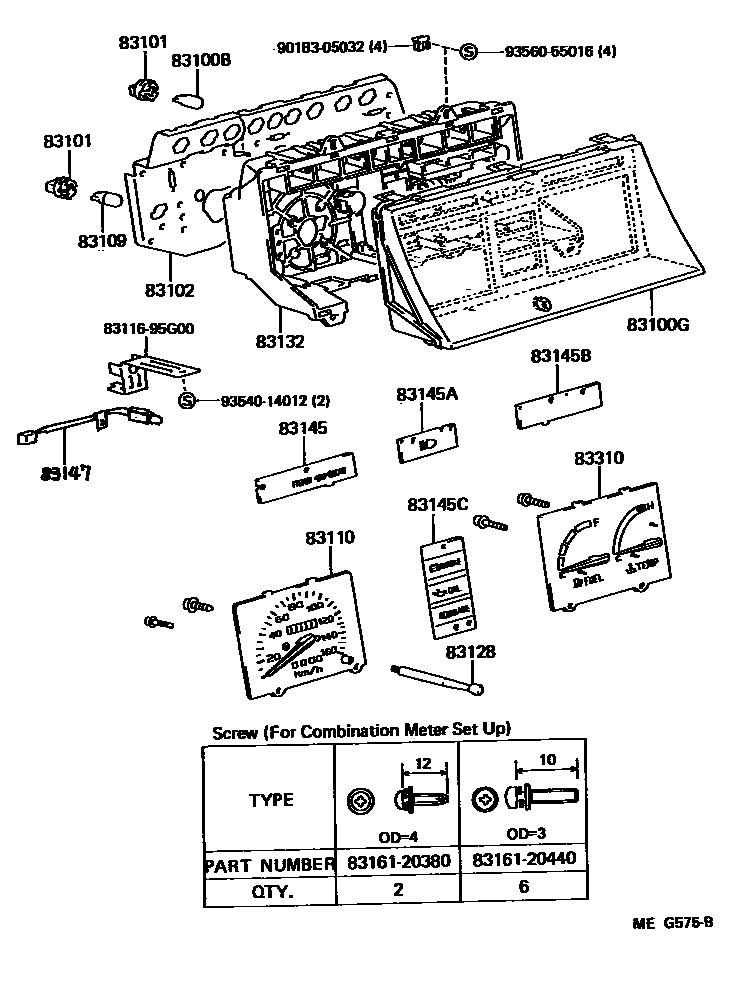

Toyota LITEACE — METER

0001 1 0004 1 0005 1 0006 1

83100BBULB, COMBINATION METER, NO.1

main99132-12034×9iCM3#,KM3#,YM3#,4#198509-198808

12V 3.4W,12V 3.4W

83100GGLASS, COMBINATION METER

main83134-95706iCM3#,KM36,YM31,35,41..RHD198509-198808

main83134-95708iYM30,40..ARL198608-198808

main83138-95700iCM35,KM3#..LHD198509-198808

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-20040×9iCM3#,KM3#,YM3#,4#198509-198808

BULB:12V 3.4W

main83101-20070×4iCM3#,KM3#,YM3#,4#198509-198808

BULB:GREEN CAP,12V 3.4W

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83247-95719iKM36,YM30,35,41..ARL198608-198808

main83247-95720iCM35..ARL198509-198808

main83247-95721iYM30,40..ARL198608-198808

main83247-95725iKM3#..LHD198509-198808

main83247-95727iKM36,YM30,31..RHD..GEN198509-198808

main83247-95728iCM35..LHD198509-198808

main83247-95729iCM3#..RHD..GEN198509-198808

83109BULB, COMBINATION METER, NO.2

main83109-24030×4iCM3#,KM3#,YM3#,4#198509-198808

12V3.4W W(GREEN CAP),GREEN CAP,12V 3.4W

83110SPEEDOMETER ASSY

main83110-95718iCM35..ARL198509-198808

main83110-95719iKM36,YM35,41..ARL198608-198808

main83110-95720iYM30,40..ARL198608-198708

main83110-95721iCM35,KM3#..LHD198509-198808

KM

main83110-95723iCM35,KM3#..LHD198509-198808

KM & MILE

main83110-95724iCM3#,KM36,YM31,35,41..RHD198509-198808

KM

main83110-95725iCM3#,YM31..RHD..GEN198509-198808

KM & MILE

main83110-95733iYM30..ARL198708-198808

83128KNOB, TRIP COUNTER

main83128-95010iCM35,KM3#..LHD198509-198808

main83128-95J00iCM3#,KM36,YM3#,4#..RHD198509-198808

83132CASE, COMBINATION METER

main83132-95705iCM35,KM3#..LHD198509-198808

main83132-95J02iCM3#,KM36,YM31,35,41..RHD198509-198808

main83132-95J06iYM30,40..ARL198608-198808

83145LENS, METER, NO.1

main83145-95013iCM35,KM3#..LHD198509-198808

main83145-95721iYM31,35,41;KM36..RHD..GEN198509-198808

main83145-95728iCM35..ARL198509-198808

main83145-95743iYM30,40..ARL198608-198808

main83145-95751iCM3#..RHD..GEN198509-198808

main83145-95G03iKM36..ARL198509-198808

83145ALENS, METER, NO.2

main83145-95722iYM30,40198509-198608

main83145-95726iYM30,40..ARL198608-198808

main83145-95A15iCM35,KM3#..LHD198509-198808

83145BLENS, METER, NO.3

main83145-95723iCM3#,KM36,YM30,31..RHD..GEN198509-198808

main83145-95740iCM35,KM36,YM35,41..MTM..ARL198608-198808

main83145-95742iYM30,35..4FC198509-198608

main83145-95744iYM30,40..5F..ARL198608-198808

main83145-95745iYM30..4FC198608-198808

main83145-95K11iCM35,KM3#..LHD198509-198808

83145CLENS, METER, NO.4

main83145-95741iCM35,KM36,YM30,35,4#..ARL198509-198808

main83145-95749iCM3#,KM36,YM30,31..RHD..GEN198509-198808

main83145-95755iCM35..LHD198509-198808

main83145-95K12iKM3#..LHD198509-198808

83147LAMP, METER NO.1

83310GAGE ASSY, FUEL RECEIVER

main83243-95711iCM35,KM36,YM30,35,4#..ARL198509-198608

main83243-95712iYM30,40..ARL198608-198808

main83243-95714iCM35,KM3#..LHD198509-198808

main83243-95715iCM3#,KM36,YM30,31..RHD..GEN198509-198808

8311695G00BRACKET, SPEEDOMETER

main83116-95G00

8316120380CASE, COMBINATION METER MIRROR, NO.1

main83161-20380

8316120440CASE, COMBINATION METER MIRROR, NO.1

main83161-20440

9018305032

main90183-05032

9354014012

main93540-14012

9356055016

main93560-55016

20 parts on this diagram · 4 diagrams in section
