Toyota LITEACE — METER

0001 1 0002 1

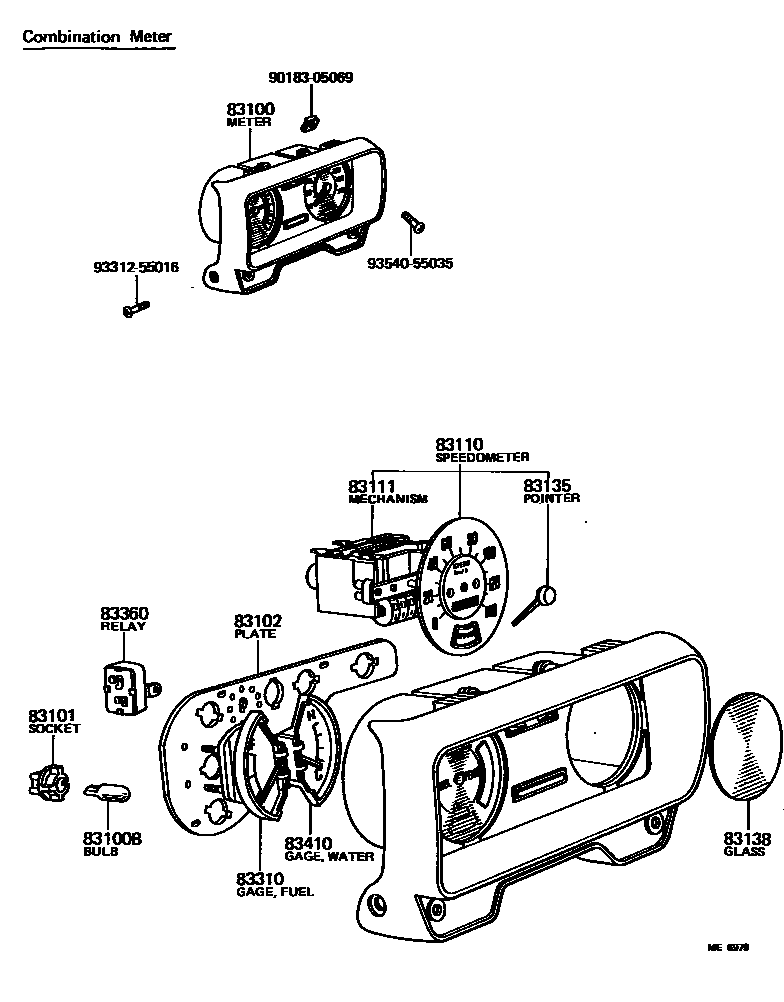

83100METER ASSY, COMBINATION

main83100-27010iKM10197105-197109

KM.

main83100-27011iKM10197109-197210

KM.

main83100-27012iKM10197210-197309

KM.

main83100-27013iKM10197309-197610

KM.

sub90201-10444

main83100-27014iKM10197610-197802

KM.

sub90201-10444

main83100-27015iKM11197802-197909

KM.

main83100-27020iKM10197105-197210

MILE

main83100-27021iKM10197210-197309

MILE

main83100-27022iKM10197309-197610

MILE

sub90201-10444

main83100-27023iKM10197610-197708

MILE

main83100-27024iKM10197708-197802

MILE&KM.

sub90201-10444

main83100-27025iKM11197802-197909

MILE&KM.

83100BBULB, COMBINATION METER, NO.1

main99132-12034×8iKM1#197105-197909

12V 3.4W,12V 3.4W

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-12010×8iKM1#197105-197909

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83102-26011iKM10197105-197210

main83102-26012iKM1#197210-197909

83110SPEEDOMETER ASSY

main83110-27010iKM10197105-197109

KM.

main83110-27011iKM10197109-197210

KM.

main83110-27012iKM10197210-197802

KM.

main83110-27013iKM11197802-197909

KM.

main83110-27020iKM10197105-197210

MILE

main83110-27021iKM10197210-197708

MILE

main83110-27022iKM10197708-197802

MILE&KM.

main83110-27023iKM11197802-197909

MILE&KM.

83111MECHANISM, SPEEDOMETER

main83112-26023iKM10197210-197802

MILE

main83112-27012iKM10197210-197802

KM.

83135POINTER, SPEEDOMETER

main83135-26010iKM10197210-197802

83138GLASS, SPEEDOMETER

main83138-26010iKM10197210-197802

83310GAGE ASSY, FUEL RECEIVER

main83310-26011iKM1#197105-197909

83360RELAY ASSY, FUEL SENDER

main83360-20011iKM1#197105-197909

83410GAGE ASSY, WATER TEMPERATURE RECEIVER

main83410-25020iKM1#197109-197909

main83410-26011iKM10197105-197109

9018305069

main90183-05069

9331255016

main93312-55016

9354055035

main93540-55035

14 parts on this diagram · 2 diagrams in section
