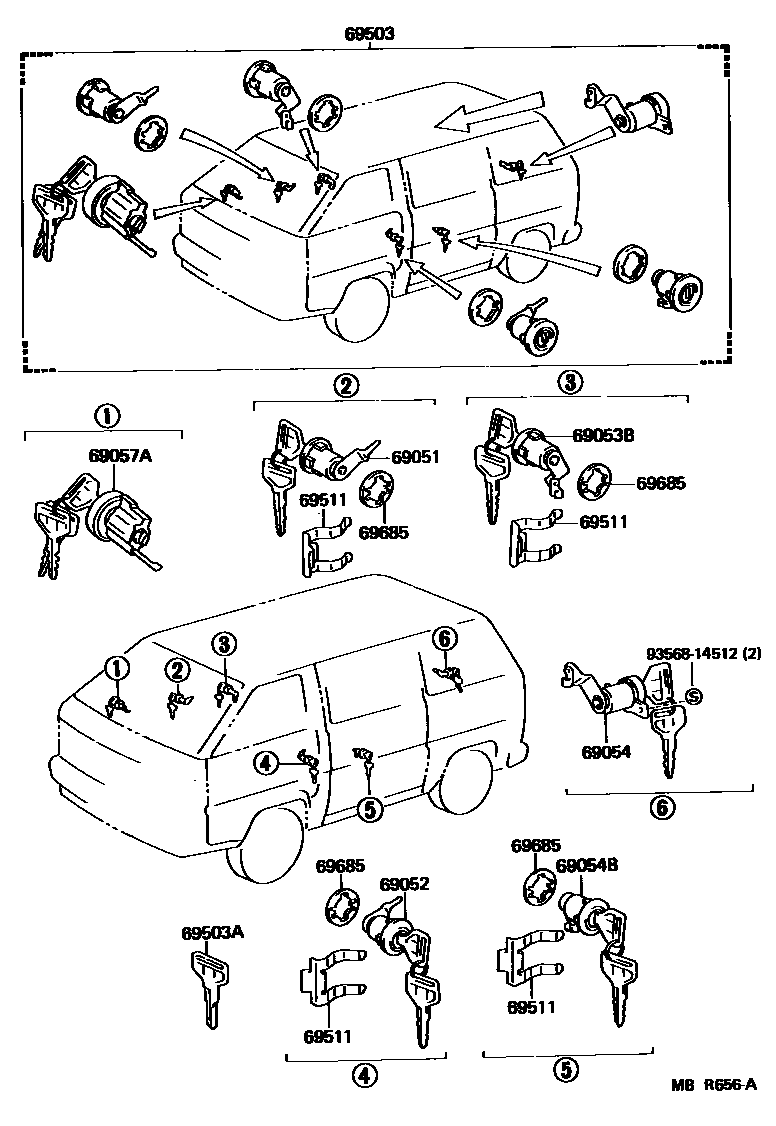

Toyota LITEACE — LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-95715i198808-199804

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-95715i198808-199804

69053BCYLINDER & KEY SET, SLIDE DOOR LOCK, RH

main69053-95709i198808-199804

69054CYLINDER & KEY SET, BACK DOOR LOCK

main69055-95712i198808-199804

69054BCYLINDER & KEY SET, SLIDE DOOR LOCK, LH

main69054-95708i198808-199804

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-95716i198808-199804

main69057-95718i198808-199201

69503CYLINDER SET, LOCK

main69503-95783i198808-199804

main69503-95785i198808-199201

main69503-95787i198808-199804

main69503-95788i198808-199201

main69503-95789i198808-199201

69503AKEY, BLANK

main90999-00066i198808-199804

MASTER KEY

main90999-00129i198808-199804

MASTER KEY,W(*68)

69511RETAINER, FRONT DOOR LOCK CYLINDER

main69511-95400×4i198808-199201

69685PAD, LOCK CYLINDER

main69513-32010×4i198808-199201

9356814512

main93568-14512

11 parts on this diagram · 1 diagram in section

LOCK CYLINDER SET for Toyota LITEACE

This section contains 11 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota LITEACE. Key components include: CYLINDER & KEY SET, DOOR LOCK, RH, CYLINDER & KEY SET, DOOR LOCK, LH, CYLINDER & KEY SET, SLIDE DOOR LOCK, RH, CYLINDER & KEY SET, BACK DOOR LOCK, CYLINDER & KEY SET, SLIDE DOOR LOCK, LH.
