Toyota LITEACE — LOCK CYLINDER SET

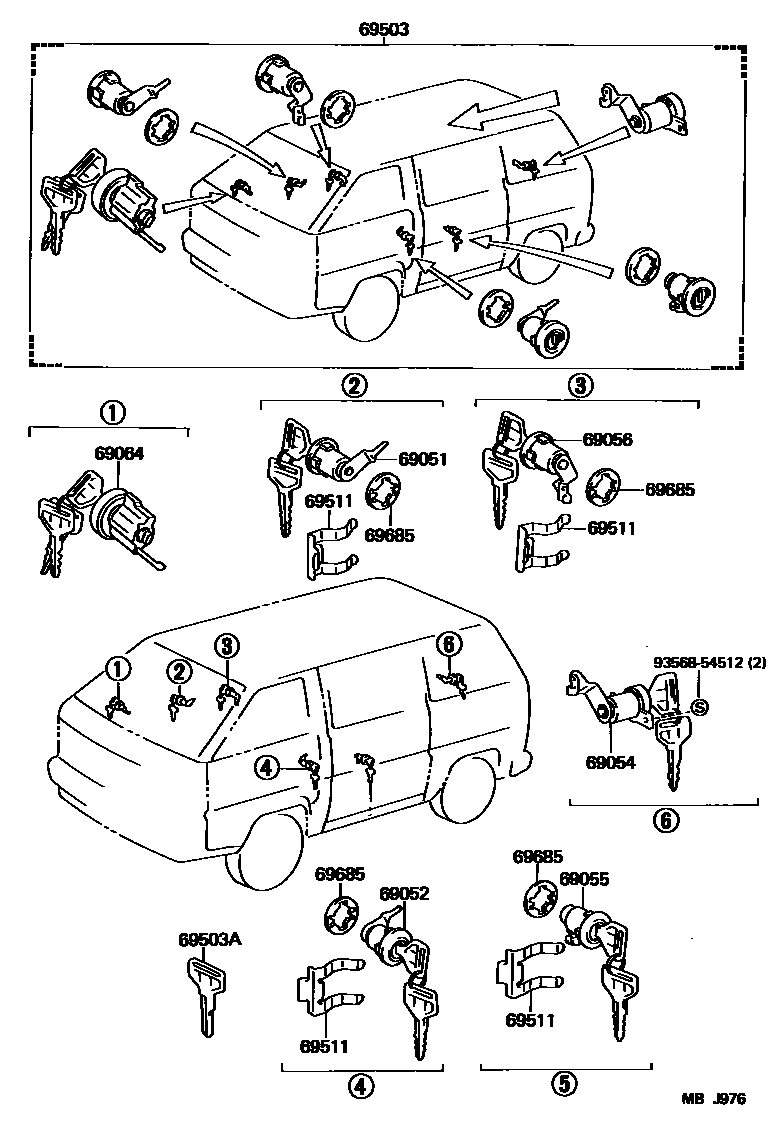

Parts diagram

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-95703i198509-198808

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-95703i198509-198808

69054CYLINDER & KEY SET, BACK DOOR LOCK

main69055-95709i198509-198808

69055CYLINDER & KEY SET, REAR DOOR LOCK, LH

main69054-95704i198509-198808

69056CYLINDER & KEY SET, REAR DOOR LOCK, RH

main69053-95704i198509-198808

69064CYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-89107i198509-198511

main69057-89109i198511-198608

main69057-95707i198509-198608

main69057-95711i198608-198709

main69057-95712i198608-198709

main69057-95716i198709-198808

main69057-95718i198709-198808

69503CYLINDER SET, LOCK

main69503-95742i198509-198608

main69503-95743i198509-198608

main69503-95744i198509-198608

main69503-95745i198509-198608

main69503-95746i198509-198608

main69503-95756i198608-198709

main69503-95757i198608-198709

main69503-95758i198608-198709

main69503-95759i198702-198709

main69503-95760i198608-198709

main69503-95767i198709-198808

main69503-95769i198709-198808

main69503-95771i198709-198808

main69503-95772i198709-198808

main69503-95773i198709-198808

69503AKEY, BLANK

main90999-00066×2i198509-198608

MASTER KEY

main90999-00129i198608-198808

MASTER KEY,W(*68),W/PROTECTOR

69511RETAINER, FRONT DOOR LOCK CYLINDER

main69511-95400×3i198509-198808

69685PAD, LOCK CYLINDER

main69513-32010×3i198509-198808

9356854512

main93568-54512

11 parts on this diagram · 1 diagram in section

LOCK CYLINDER SET for Toyota LITEACE

This section contains 11 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota LITEACE. Key components include: CYLINDER & KEY SET, DOOR LOCK, RH, CYLINDER & KEY SET, DOOR LOCK, LH, CYLINDER & KEY SET, BACK DOOR LOCK, CYLINDER & KEY SET, REAR DOOR LOCK, LH, CYLINDER & KEY SET, REAR DOOR LOCK, RH.
