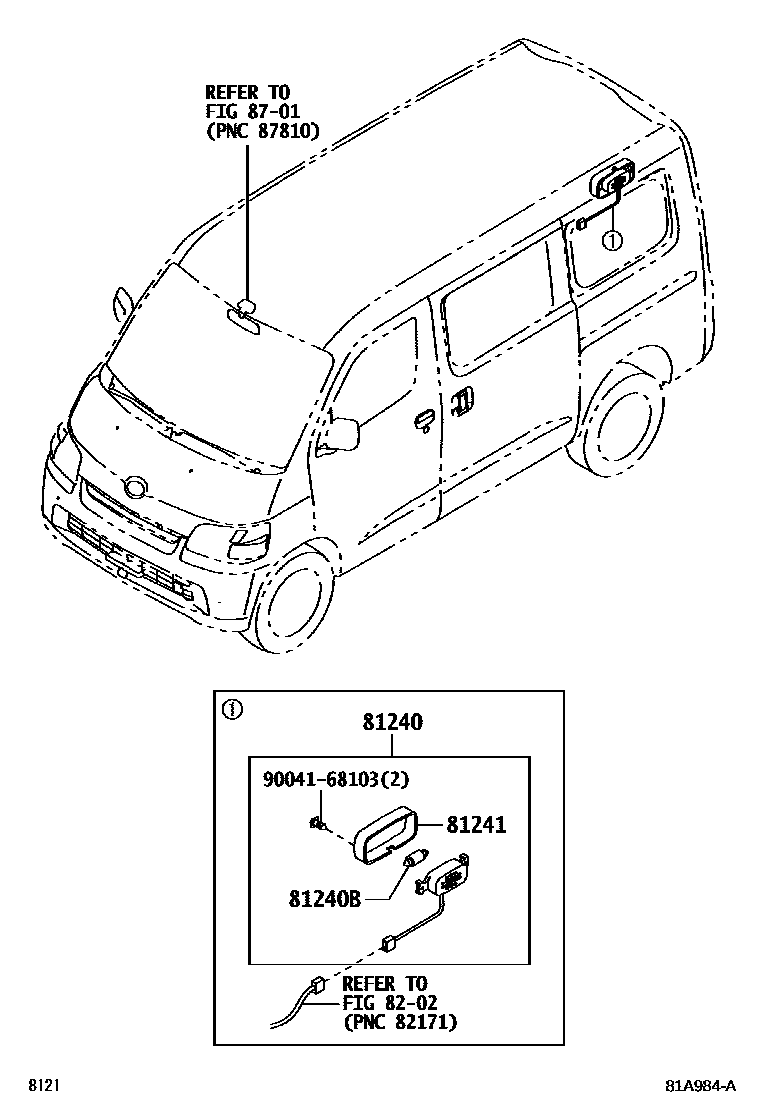

Toyota LITEACE — INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-BZ070i202205

81240BBULB, ROOM LAMP, NO.1

main90049-51095i202205

12V 8W T10

81241LENS, ROOM LAMP, NO.1

main81241-BZ070i202205

8202WIRING & CLAMP

→ Go to FIG 82-02

8701MIRROR

→ Go to FIG 87-01

9004168103

main90041-68103

6 parts on this diagram · 1 diagram in section

INTERIOR LAMP for Toyota LITEACE

This section contains 6 genuine Toyota parts for the INTERIOR LAMP system of the Toyota LITEACE. Key components include: LAMP ASSY, ROOM, NO.1, BULB, ROOM LAMP, NO.1, LENS, ROOM LAMP, NO.1, WIRING & CLAMP, MIRROR.
