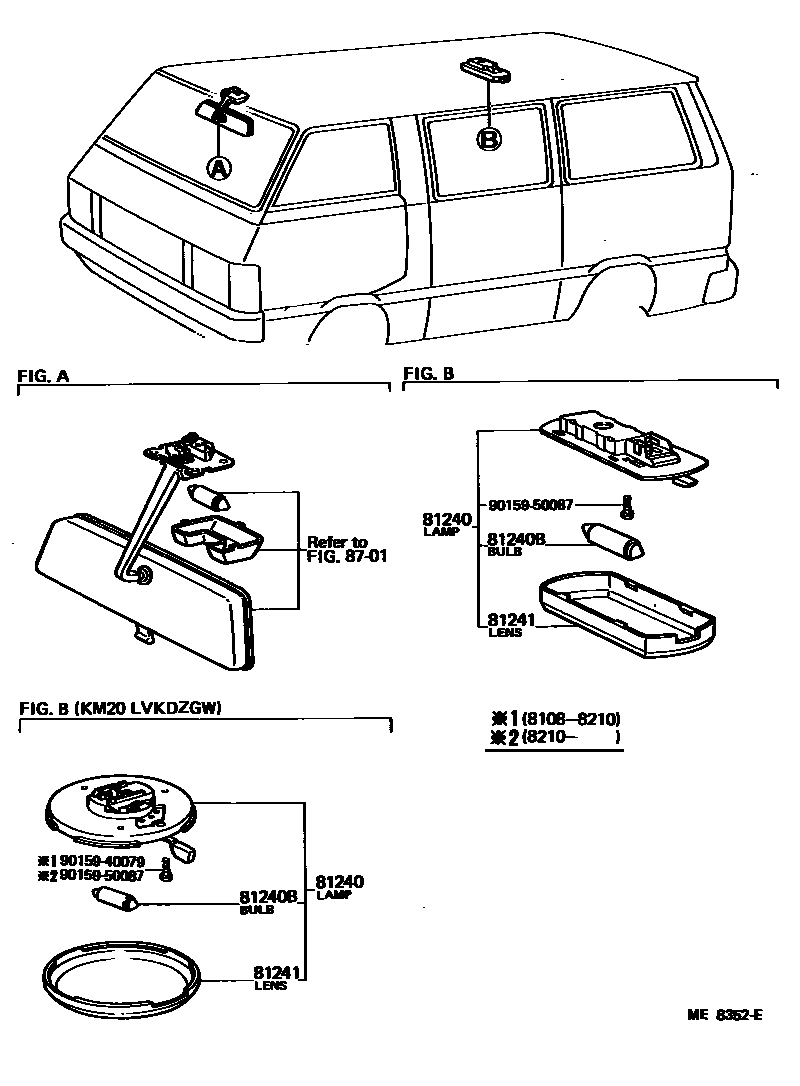

Toyota LITEACE — INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-95702i197910-198205

main81240-95704-08i198210-198508

IVORY,IVORY

main81240-95705-08i198207-198210

IVORY,IVORY

main81240-95A10i198108-198207

81240BBULB, ROOM LAMP, NO.1

main90981-11004i197910-198508

12V 10W

81241LENS, ROOM LAMP, NO.1

main81241-61011i198108-198207

main81241-95013i197910-198508

main81241-95705i198207-198210

8701MIRROR

→ Go to FIG 87-01

9015940079

main90159-40079

9015950087

main90159-50087

6 parts on this diagram · 1 diagram in section

INTERIOR LAMP for Toyota LITEACE

This section contains 6 genuine Toyota parts for the INTERIOR LAMP system of the Toyota LITEACE. Key components include: LAMP ASSY, ROOM, NO.1, BULB, ROOM LAMP, NO.1, LENS, ROOM LAMP, NO.1, MIRROR.
