Toyota LITEACE — INSIDE TRIM BOARD

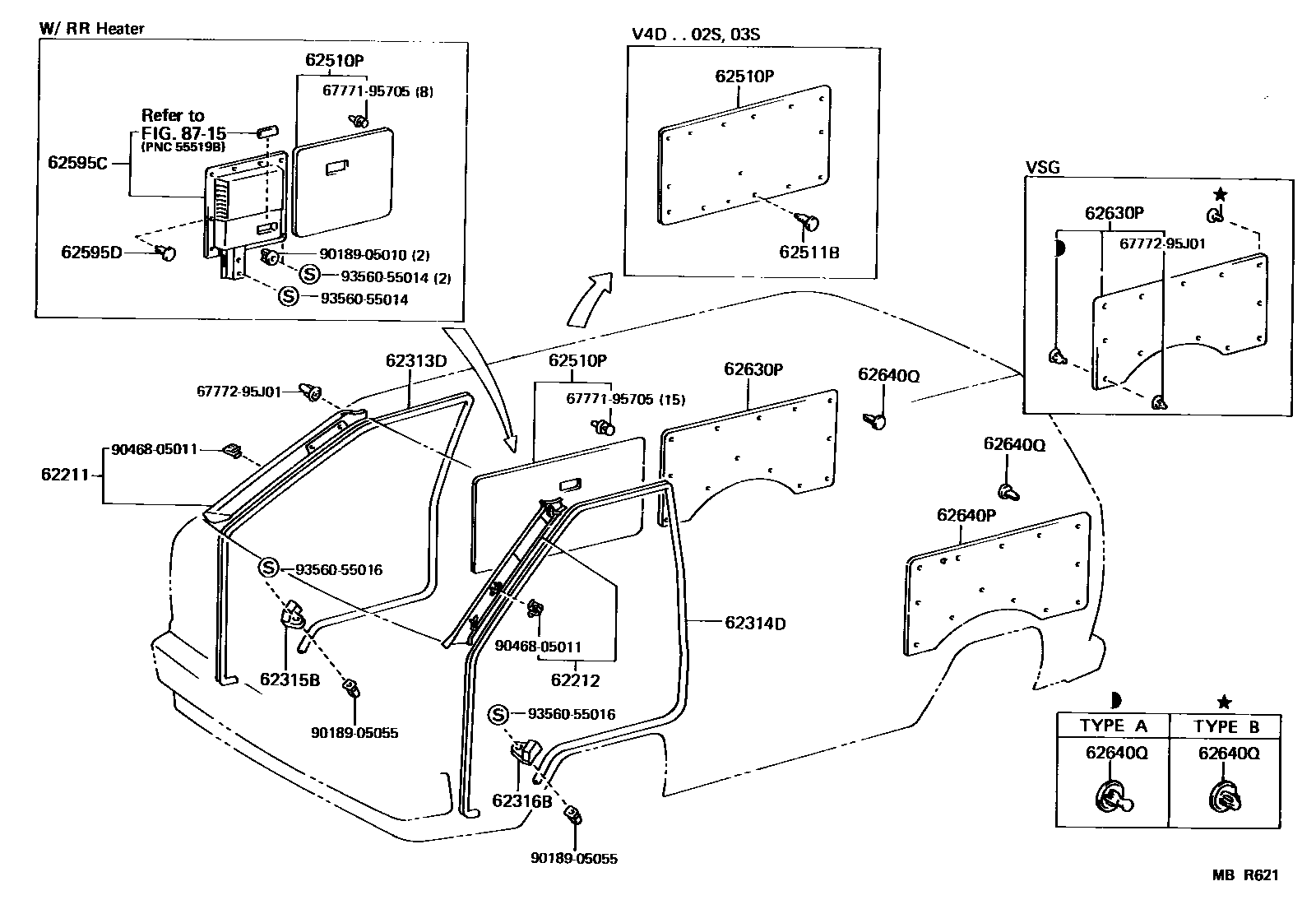

Parts diagram
62211GARNISH, FRONT PILLAR, RH
main62211-95706-03i198808-199108
GRAY,TRIM1#
main62211-95706-06i198808-199201
SABLE,TRIM4#
62212GARNISH, FRONT PILLAR, LH
main62212-95707-03i199108-199804
GRAY,TRIM1#
main62212-95707-06i198808-199201
SABLE,TRIM4#
62313DTRIM, FRONT DOOR OPENING, RH
main62313-95710-13i198808-199804
GRAY,TRIM1#
main62313-95710-16i198808-199201
SABLE,TRIM4#
62314DTRIM, FRONT DOOR OPENING, LH
main62313-95710-13i198808-199804
GRAY,TRIM1#
main62313-95710-16i198808-199201
SABLE,TRIM4#
62315BCOVER, FRONT DOOR OPENING TRIM, RH
main62317-95700-13i198808-199804
GRAY,TRIM1#
main62317-95700-16i198808-199201
SABLE,TRIM4#
62316BCOVER, FRONT DOOR OPENING TRIM, LH
main62318-95700-13i198808-199804
GRAY,TRIM1#
main62318-95700-16i198808-199201
SABLE,TRIM4#
62510PPANEL ASSY, QUARTER TRIM, FRONT RH
main62510-95703-03i198808-199012
GRAY,TRIM1#
main62510-95704-03i198808-199201
W(REAR HEATER-SIDE TRIM BUILT-IN TYPE),GRAY,TRIM1#
main62510-95708-03i198808-199201
W(REAR HEATER-PUT FLOOR TYPE),GRAY,TRIM1#
main62510-95708-16i198808-199201
W(REAR HEATER-PUT FLOOR TYPE),SABLE,TRIM4#
main62510-95716-03i198808-199201
GRAY,TRIM1#
main62510-95716-16i198808-199201
SABLE,TRIM4#
main62511-95707i199012-199804
MALAYSIA CKD SPEC & W/O(REAR NO.1 SEAT)
62511BCLIP (FOR QUARTER INSIDE TRIM BOARD)
main90467-06020-01×8i199001-199804
BLACK,TRIM1#
main90467-06020-13×8i198808-199804
SHADOW GRAY,TRIM1#
main90467-06020-36×8i198808-199201
SABLE,TRIM4#
main90467-10071-03×13i198808-199804
GRAY,TRIM1#
62595CBOARD, SIDE HEATER COVER, RH
main62595-95700-B0i198808-199201
GRAY,TRIM1#
62595DCLIP(FOR SIDE HEATER COVER BOARD)
main90467-10071-03×7i198808-199201
GRAY,TRIM1#
62630PPANEL ASSY, QUARTER TRIM, REAR RH
main62630-95702-03i198808-199201
GRAY,TRIM1#
main62630-95711-03i199001-199604
GRAY,TRIM1#
main62630-95715-03i199012-199212
GRAY,TRIM1#
main62630-95727-03i198808-199201
GRAY,TRIM1#
main62630-95727-06i198808-199201
SABLE,TRIM4#
main62631-95702i199012-199804
MALAYSIA CKD SPEC & W/O(REAR NO.1 SEAT)
main62631-95704i198808-199201
W/O(REAR NO.1 SEAT)
main62631-95717i198808-199201
62640PPANEL ASSY, QUARTER TRIM, REAR LH
main62632-95702i198808-199012
main62632-95704i199012-199804
MALAYSIA CKD SPEC & W/O(REAR NO.1 SEAT)
main62632-95705i198808-199201
W/O(REAR NO.1 SEAT)
main62640-95702-03i198808-199201
GRAY,TRIM1#
main62640-95714-03i198808-199201
GRAY,TRIM1#
main62640-95725-03i198808-199201
GRAY,TRIM1#
main62640-95725-06i198808-199201
SABLE,TRIM4#
62640QCLIP (FOR QUARTER TRIM REAR PANEL)
main90467-07054-06i198808-199804
SABLE,TRIM1#,TYPE A
main90467-09010-03×18i199107-199804
MALAYSIA CKD SPEC,GRAY,TRIM1#,TYPE A
main90467-10071-03×28i198808-199201
GRAY,TRIM1#
8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
→ Go to FIG 87-15
6777195705WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-95705
6777295J01WEATHERSTRIP, BACK DOOR TRIM, LH
main67772-95J01
9018905010
main90189-05010
9018905055
main90189-05055
9046805011
main90468-05011
9356055014
main93560-55014
9356055016
main93560-55016

21 parts on this diagram · 5 diagrams in section

INSIDE TRIM BOARD for Toyota LITEACE

This section contains 51 genuine Toyota parts for the INSIDE TRIM BOARD system of the Toyota LITEACE. Key components include: RETAINER, QUARTER TRIM, RH, RETAINER, QUARTER TRIM, LH, GARNISH, FRONT PILLAR, RH, GARNISH, FRONT PILLAR, LH, TRIM, FRONT DOOR OPENING, RH.
