Toyota LITEACE — HORN

86508BRACKET SUB-ASSY, HORN

main86591-95701i198509-198808

main86591-95702i198509-198808

HIGH PITCHED

main86591-95703i198509-198808

LOW PITCHED

86510HORN ASSY, HIGH PITCHED

main86510-95702i198509-198808

W/DUAL HORN

main86510-95705i198509-198808

W/DUAL HORN & NOISE FILTER

86520HORN ASSY, LOW PITCHED

main86520-95713i198509-198808

DENSO; W/DUAL HORN

main86520-95714i198509-198808

MARUKO

main86520-95716i198509-198808

W/DUAL HORN & NOISE FILTER; W/RADIO=MW/SW

main86520-95717i198509-198808

CHINA SPEC

9165140816

main91651-40816

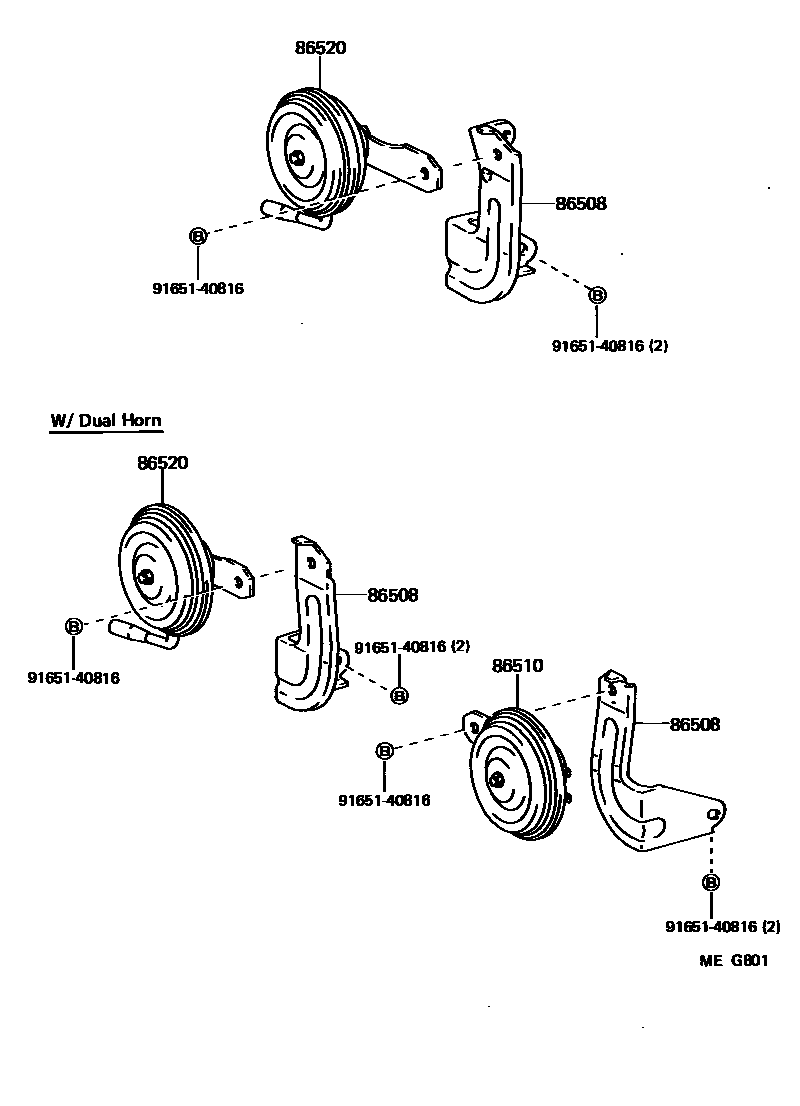

4 parts on this diagram · 1 diagram in section

HORN for Toyota LITEACE

This section contains 4 genuine Toyota parts for the HORN system of the Toyota LITEACE. Key components include: BRACKET SUB-ASSY, HORN, HORN ASSY, HIGH PITCHED, HORN ASSY, LOW PITCHED.
