Toyota LITEACE — HORN

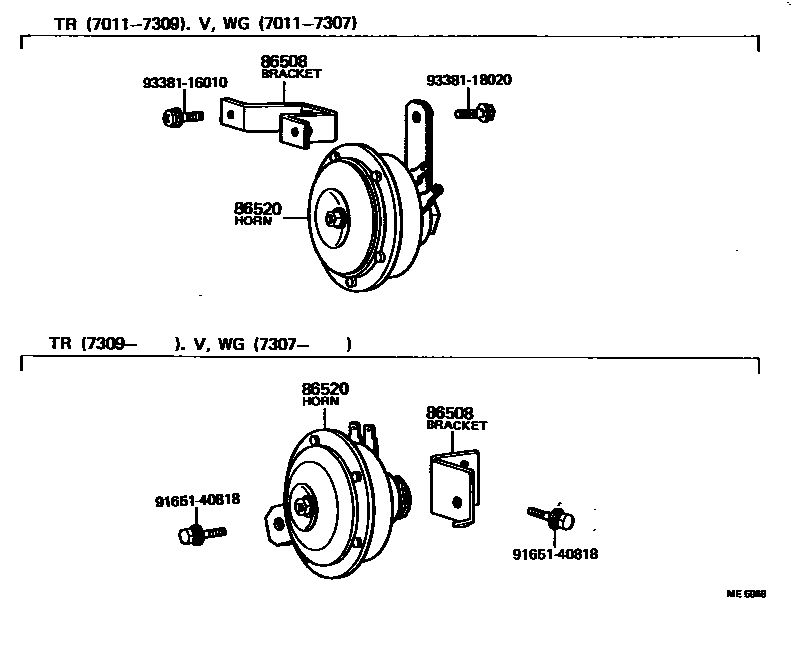

Parts diagram

86508BRACKET SUB-ASSY, HORN

main74706-87401i197105-197309

main86508-95700i197105-197307

main86581-95701i197307-197309

86520HORN ASSY, LOW PITCHED

main86520-27010i197105-197111

main86520-27011i197111-197309

main86520-27012i197309-197809

main86520-27013i197809-197909

9165140818

main91651-40818

9338116010

main93381-16010

9338118020

main93381-18020

5 parts on this diagram · 1 diagram in section

HORN for Toyota LITEACE

This section contains 5 genuine Toyota parts for the HORN system of the Toyota LITEACE. Key components include: BRACKET SUB-ASSY, HORN, HORN ASSY, LOW PITCHED.
